Marantz model 120 AM/FM Stereo tuner, Marantz model 3300 preamplifier and Marantz model 250 power amplifier. All are in very good condition. Amplifier rated at 125 watts RMS per channel into 8 ohms. The 250 and 3300 are rare "Made in USA" models and the 120 is a rare "scope" tuning model. These units have been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included for each.

Sold as a set only.

120

Controls:

Scope Centering Vert
Scope Centering Horizclassicaudio.com

Switches:

Powerclassicaudio.com
Scope Display:

On
Externalclassicaudio.com
Audio
Tuningclassicaudio.com
Multipath

Mode Selection:

FMclassicaudio.com
AM
Monoclassicaudio.com
Muting
Hi Blendclassicaudio.com

Indicators:

Oscilloscopeclassicaudio.com
AM
FM
MONOclassicaudio.com
MUTING
HI BLEND
STEREOclassicaudio.com

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
Muting Level
Antenna Attenuatorclassicaudio.com
FM Quadradial Output
Output Level, Right Channel
Output Level, Left Channelclassicaudio.com
Output R, L
Tape Out R, Lclassicaudio.com
Scope Input Horiz, R
Scope Input Vert, Lclassicaudio.com
Scope Focus
Scope Brightnessclassicaudio.com

Shipping Weight 30 lbs.

3300

Controls:

Tone Control: Flat, In, Loudness
High Filter: 5K, Out, 9Kclassicaudio.com
Speakers: Off, System 1, System 2, Both
Low Filter: 50, Out, 100classicaudio.com
Volume
Selector: Mic, Phono 2, Phono 1, Tuner, Aux 1, Aux 2
Balance: Knobclassicaudio.com
Mode: R, L, Stereo, Stereo Reverse, L+R
Treble Left: +/-10dB Sliderclassicaudio.com
Treble Right: +/-10dB Slider
Bass Left: +/-10dB Sliderclassicaudio.com
Bass Right: +/-10dB Slider

Switches:

Powerclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com

Jacks:

Dubbing Inclassicaudio.com
Dubbing Out
Headphonesclassicaudio.com

Indicators:

Power

Rear Panel:

Phono Input 2 (L, R)classicaudio.com
Phono Input 1 (L, R)
Tuner (L, R)classicaudio.com
Aux Input 1 (L, R)
Aux Input 2 (L, R)classicaudio.com
Tape Recorder (DIN)
Pre Out Left, Rightclassicaudio.com
Pre Out Level: Low, High
Tape Monitor 1 In (L, R)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor 2 In (L, R)
Tape Monitor 2 Out/Scope (L, R)
Spkr Switching Inputs (L, R)classicaudio.com
Spkr System 1 (L, R)
Spkr System 2 (L, R)classicaudio.com
Center Channel Volume
Center Channel Outputclassicaudio.com
AC Outlet Switched (4)
AC Outlet Unswitched (1)classicaudio.com

Shipping Weight 20 lbs.



250

Controls:

Left Channel Meter: Off, 0dB, +20dB
Right Channel Meter: Off, 0dB, +20dBclassicaudio.com

Indicators:

Left Channel Level dB/VU
Right Channel Level dB/VUclassicaudio.com

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
Input Right
Input Leftclassicaudio.com
Speaker Systems (R, L)

Shipping Weight 40 lbs.

$3000.00



ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
To send email click here.



Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. only. We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
See what our customers say about us!

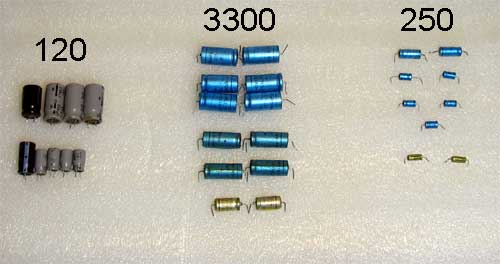

Electrolytic Capacitors Replaced:

---
