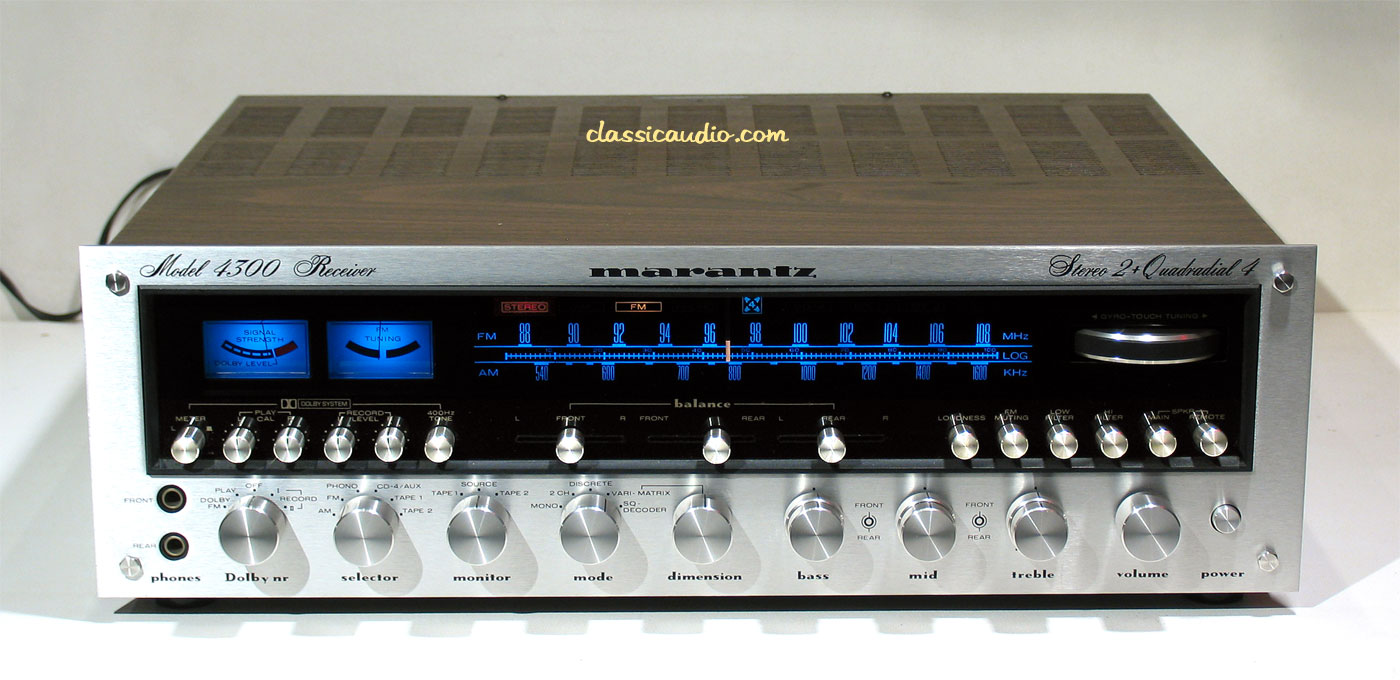

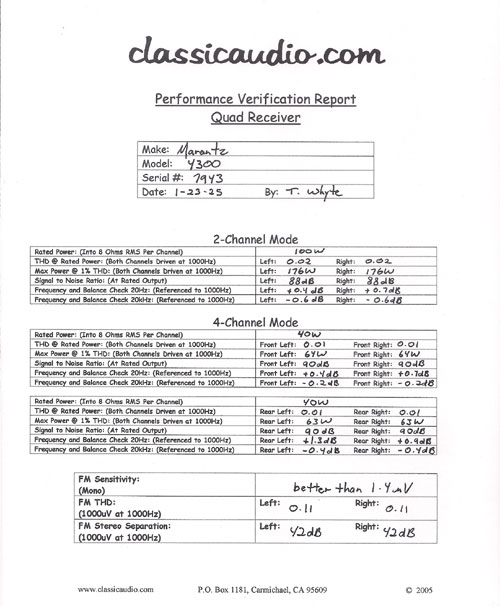

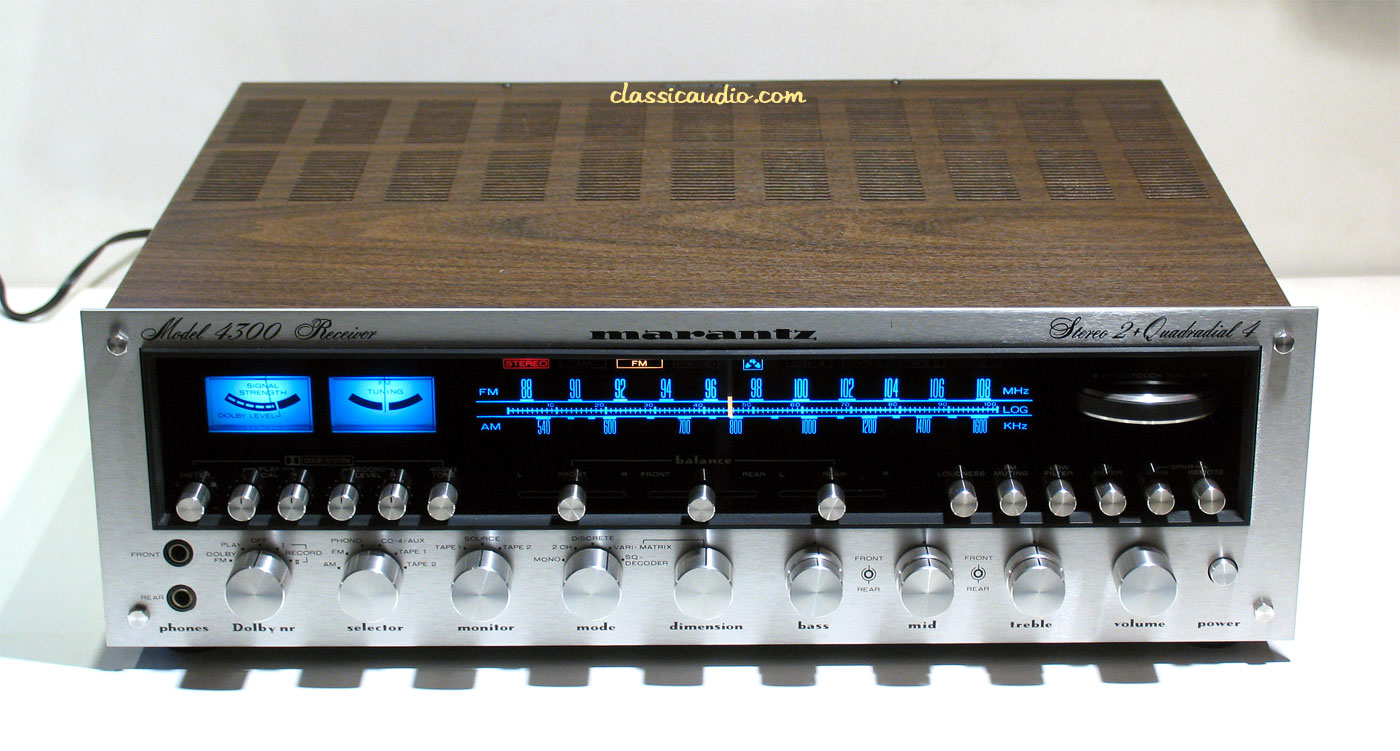

Marantz model 4300 quad receiver in excellent condition. Rated at 100 watts RMS per channel in 2-channel mode and 40 watts RMS per channel in 4-channel mode into 8 ohms. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the Handbook of Instructions are included.
It is generally accepted that the highest power Marantz receiver from this era is the 2325 at 125 watts per channel. They top out on the test bench at around 160 watts per channel. Although the 4300 is rated at 100 watts per channel it actually tops out on the test bench just over 175 watts per channel making it the higher power of the two.
 |
Controls:
Dolby Play Cal Left
Dolby Play Cal Rightclassicaudio.com
Dolby Record Cal Left
Dolby Record Cal Right
Dolby: FM Dolby, Play, Off, Record 1, Record 2.
Selector: AM, FM, Phono, Aux/CD-4, Tape 1, Tape 2.
Monitor: Tape 1, Source, Tape 2classicaudio.com
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Only
Bass: Independent Front, Rear
Mid: Independent Front, Rearclassicaudio.com
Treble: Independent Front, Rear
Volume
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.comSwitches:
Meter: Dolby Level L/R
400 Hz Toneclassicaudio.com
Loudnessclassicaudio.com
FM Muting
Low Filter
Hi Filter
Spkr Main
Spkr Remote
Powerclassicaudio.comJacks:
Headphones Front
Headphones RearIndicators:
Tuning Meterclassicaudio.com
Signal Strength Meter
STEREO
AM
FM
PHONOclassicaudio.com
4-CH
CD-4
TAPE 1
TAPE 2
DOLBYclassicaudio.com

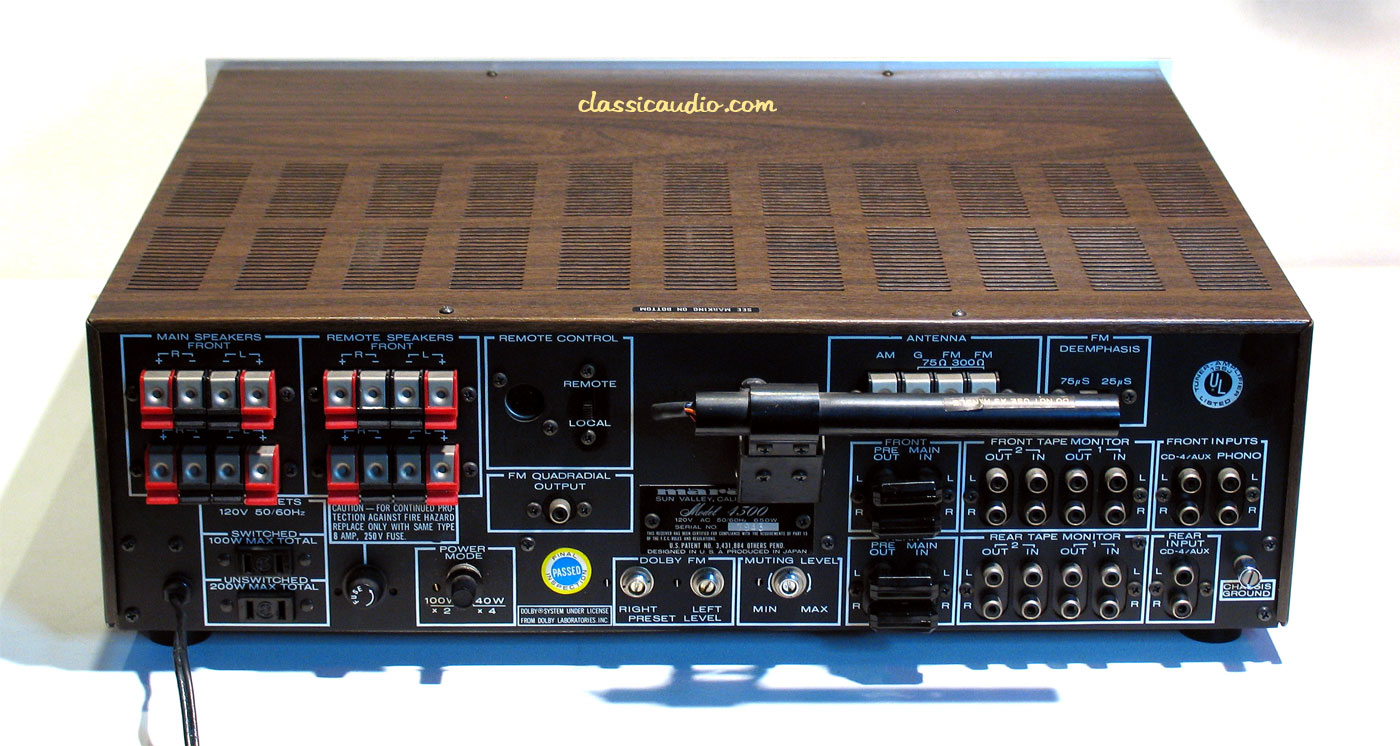

Rear Panel:
AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
FM Quadradial Output
FM Muting Level
Main In Left, Right, Front, Rear
Pre Out Left, Right, Front, Rear
Tape Monitor 2 Out (L, R, F, R)classicaudio.com
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)
Phono Input (L, R)
CD-4/Aux Input (L, R)
CD-4/Aux Input Rear (L, R)
Dolby FM Level (L, R)
Remote Control
Power Mode: 100W X2/40W X4classicaudio.comclassicaudio.comShipping Weight 70 lbs.
 |
$1400.00
 |
