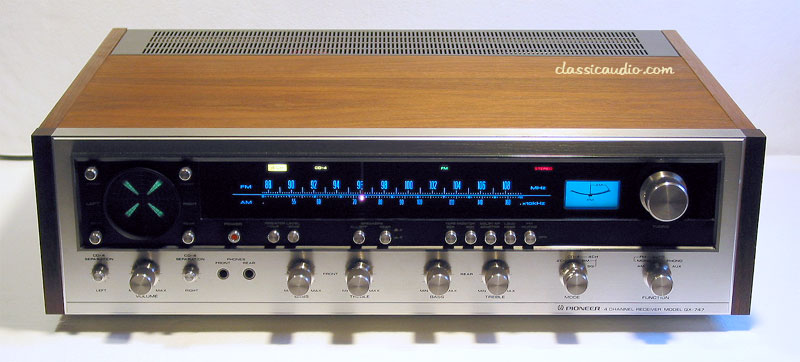

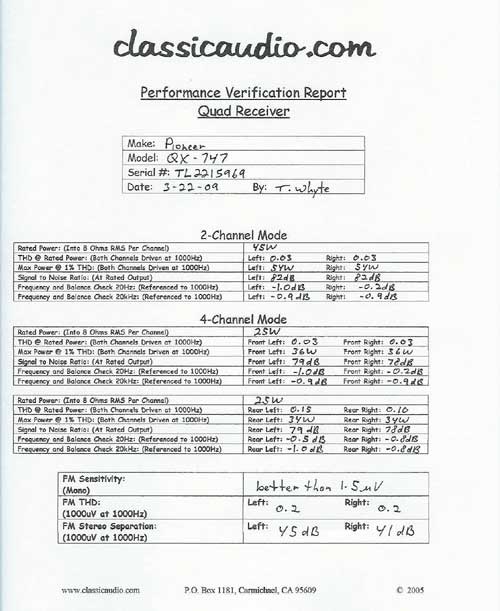

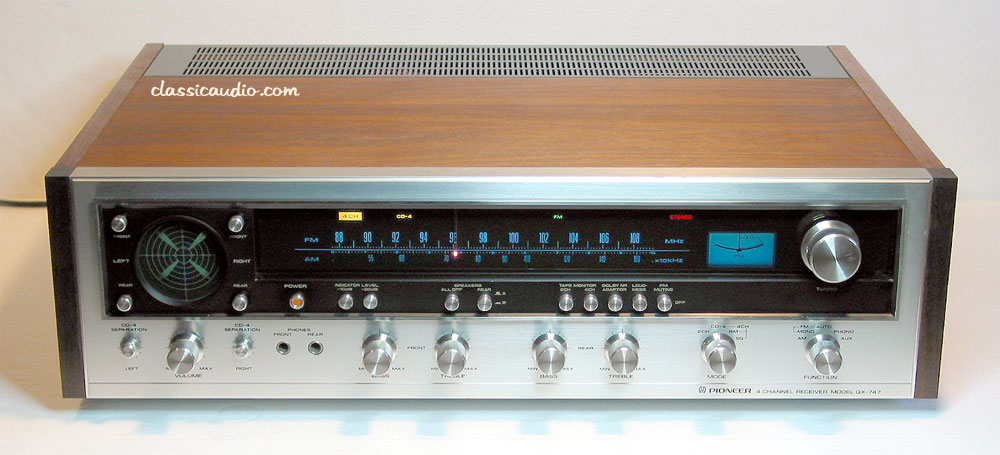

Pioneer model QX-747 4 channel AM/FM receiver in excellent condition. Rated at 45 watts RMS per channel into 8 ohms in 2 channel mode and 25 watts RMS per channel in 4 channel mode. Features built in CD-4, SQ and Regular Matrix decoders. It has been serviced and fully tested. Includes a copy of the owner's manual and our original Performance Verification Report.



Controls:

Front Left Level classicaudio.com
Front Right Level
Rear Left Level classicaudio.com
Rear Right Level
CD-4 Separation Left
CD-4 Separation Right classicaudio.com
Volume
Bass Front classicaudio.com
Treble Front
Bass Rear classicaudio.com
Treble Rear
Mode: 2-CH, CD-4, RM, SQ
Function: AM, FM Mono, FM Auto, Phono, Aux lassicaudio.com

Switches:

Powerclassicaudio.com
Indicator -10dB
Indicator -20dB
Speakers All Off
Speakers Rear A/B
Tape Monitor 2 CH
Tape Monitor 4 CH
Dolby NR Adaptor
Loudness
FM Muting

Jacks:

Headphones Frontclassicaudio.com
Headphones Rear

Indicators:

4 Channel Level Indicatorclassicaudio.com
Tuning Meter
FM STEREO
AUX
PHONO
FMclassicaudio.com
AM
SQ
RMclassicaudio.comclassicaudio.com
CD-4
2 CH
4 CH

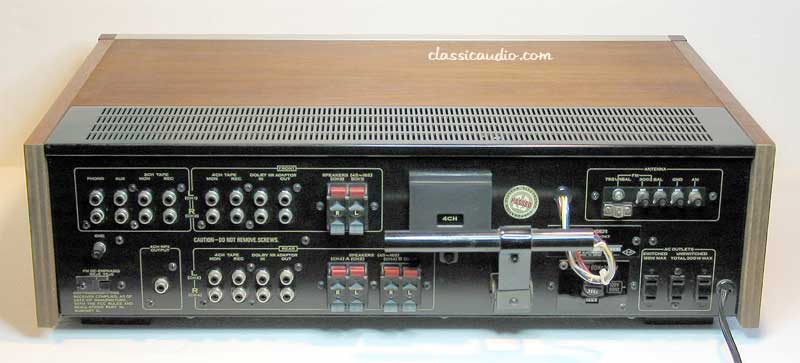

Rear Panel:

AC Outlet Unswitched (2)classicaudio.com
AC Outlet Switched
Phono classicaudio.com
Aux (L, R)
2 CH Tape Monitor Out (L, R)classicaudio.com
2 CH Tape Monitor In (L, R)classicaudio.com
4 CH Tape Monitor Out (L, R, F, R)classicaudio.com
4 CH Tape Monitor In (L, R, F, R)
Dolbt NR Adaptor Out (L, R, F, R)classicaudio.com
Dolby NR Adaptor In (L, R, F, R)
Speakers A Front (L, R)classicaudio.com
Speakers A Rear (L, R)
Speakers B Rear (L, R)
2 CH Power Boosting Switch
FM De-Emphasis: 50uS/75uS
FM Antenna 75 Ohm
FM Antenna 300 Ohm
AM Antennaclassicaudio.com

Shipping Weight 51 lbs.

$299.95
