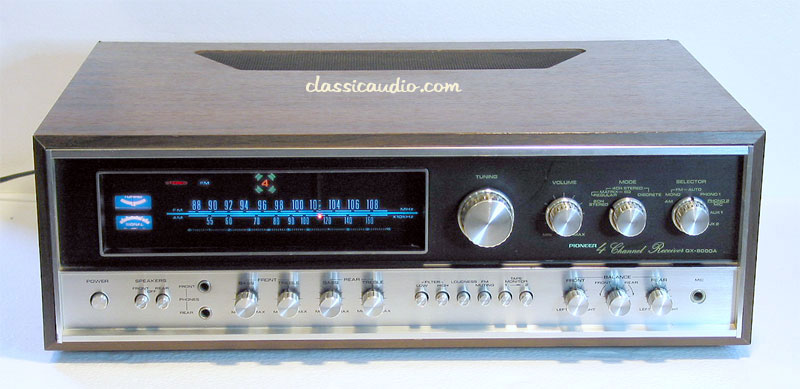

Pioneer model QX-8000A 4 channel AM/FM receiver in excellent condition. Rated at 25 watts RMS per channel into 8 ohms times 4. Features built in SQ and Regular Matrix decoders, two phono inputs, two aux inputs, pre-out/main-in jacks. It has been serviced and fully tested. Includes a copy of the owner's manual and four speaker plugs.



Controls:

Bass Front classicaudio.com
Treble Front
Bass Rear classicaudio.com
Treble Rear
Balance Frontclassicaudio.com
Balance Main
Balance Rear
Volume
Level Set
Mode: 2-CH, Regular Matrix, SQ Matrix, Discrete
Selector: AM, FM Mono, FM Auto, Phono 1, Phono 2/Mic, Aux 1, Aux 2classicaudio.com

Switches:

Powerclassicaudio.com
Front Speakers Off
Rear Speakers Off
Filter Low
Filter High
Loudness
Tape Monitor 1
Tape Monitor 2
FM Muting

Jacks:

Headphones Frontclassicaudio.com
Headphones Rear
Mic

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
FM STEREO
PHONO 2
PHONO 1
FMclassicaudio.com
AM
AUX 1
AUX 2classicaudio.comclassicaudio.com

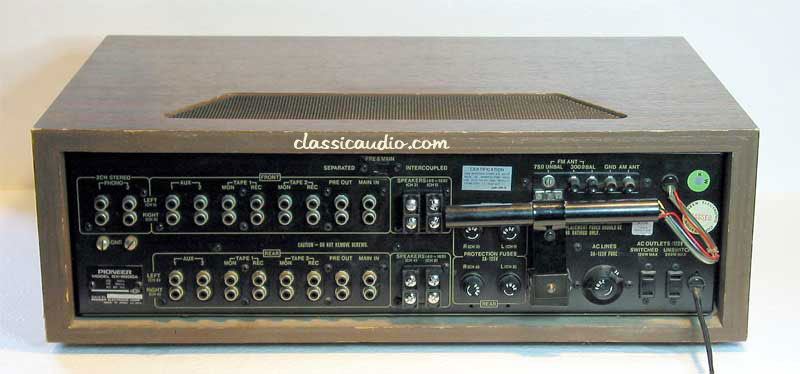

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)classicaudio.com
Aux 1 (L, R, F, R)
Aux 2 (L, R, F, R)classicaudio.com
Tape Monitor 1 Out (L, R, F, R)classicaudio.com
Tape Monitor 1 In (L, R, F, R)classicaudio.com
Tape Monitor 2 Out (L, R, F, R)classicaudio.com
Tape Monitor 2 In (L, R, F, R)
Speakers A Front (L, R)classicaudio.com
Speakers A Rear (L, R)
FM Antenna 75 Ohm
FM Antenna 300 Ohm
AM Antennaclassicaudio.com



Shipping Weight 40 lbs.

$99.95



ClassicAudio.com
Toll Free: 1-888-892-8106 enter "1027"
contact classicaudio.com



Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. and Canada only. We PRO PACK!
This item sold AS-IS.
See what our customers say about us!
