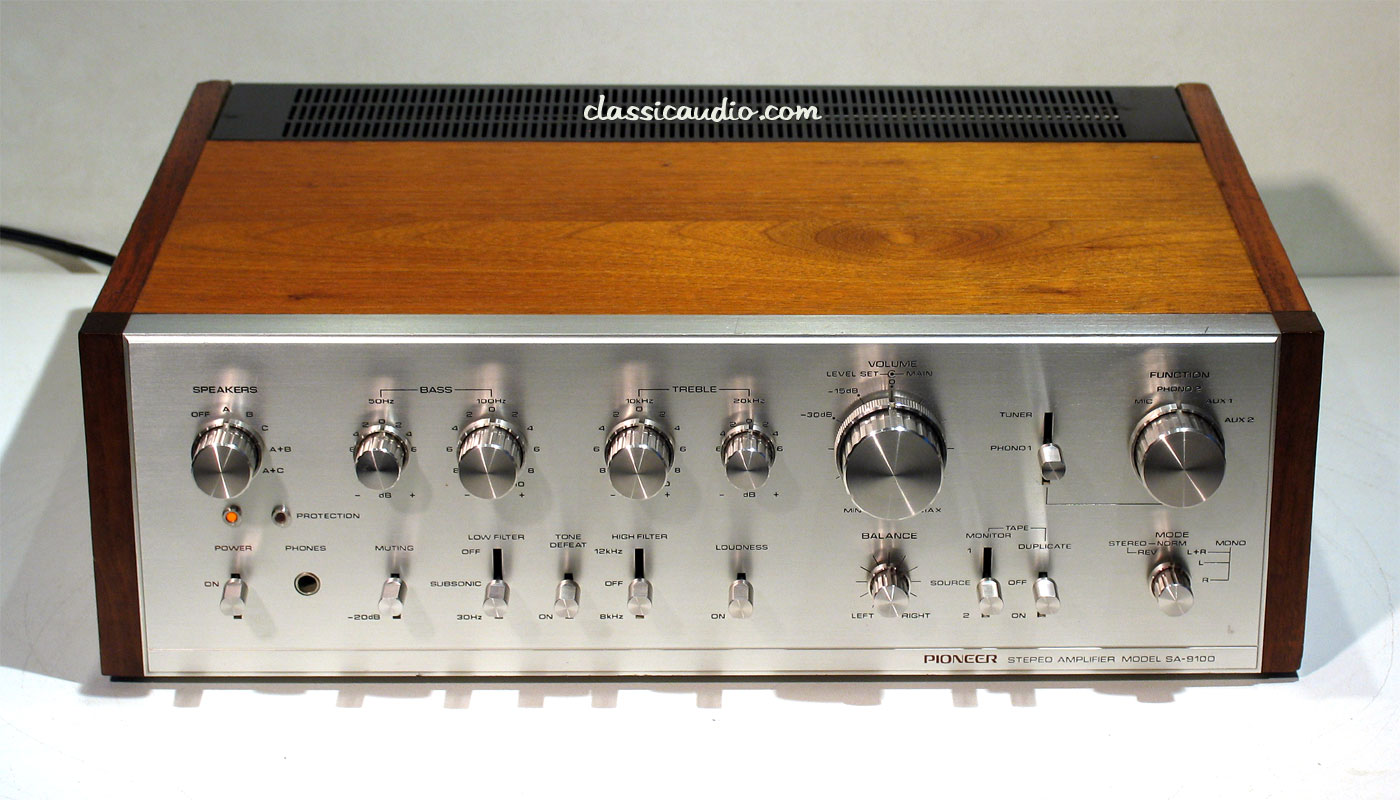

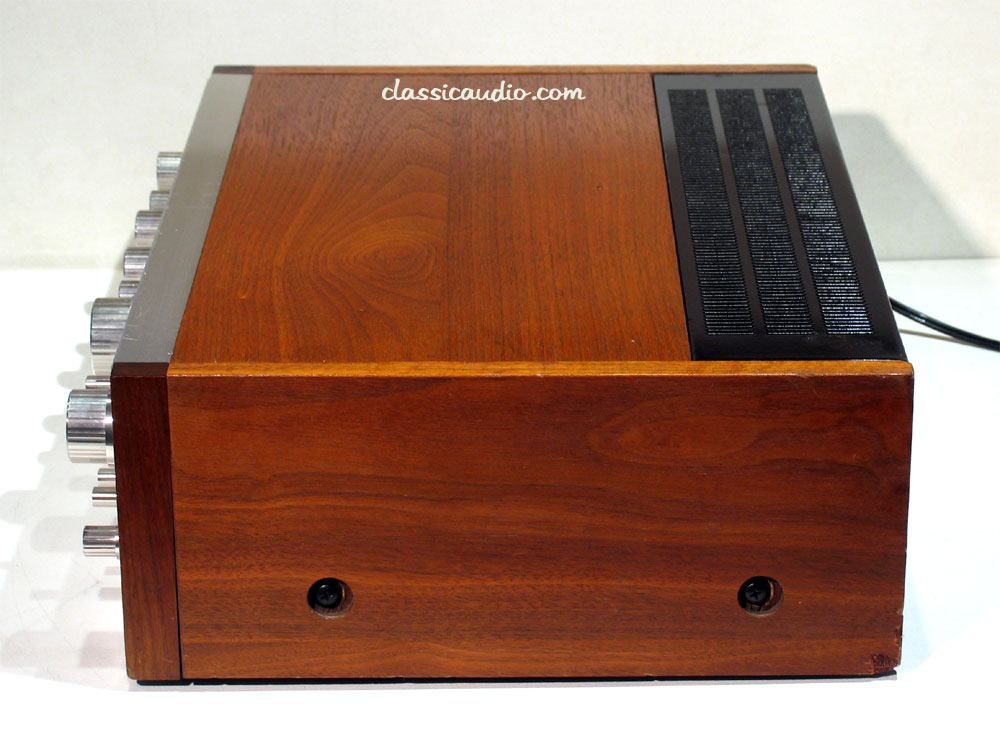

Pioneer model SA-9100 integrated amplifier in very good condition. The SA-9100 is rated at 60 watts RMS into 8 ohms and 75 watts RMS into 4 ohms. Built like a tank and loaded with features. One very unique feature is a level trim control for the B set of speakers. It has been serviced and fully tested. Our original Performance Verification Report included.
From Pioneer:
The SA-9100 is Pioneer's finest professional stereo integrated amplifier.
It features an all stage direct coupled pure complementary OCL circuit, resulting in a super wide bandwidth and distortion free power, a unique 3 stage direct coupled equalizer, twin stepped tone controls for making critical bass and treble adjustments and level set volume and loudness contour controls to adjust listening preference.
Other features include 2-way tape duplicating and monitoring, 2 position high and low filters and 3 pairs of speaker output terminals.
 |
Controls:
Bass 50Hz +/- 6classicaudio.com
Bass 50Hz +/- 10
Treble 10kHz +/- 10
Treble 20kHz +/- 6classicaudio.com
Balance
Volumeclassicaudio.comSwitches:
Speakers: Off, A, B, A+B, A+Cclassicaudio.com
Level Set: 0, -15dB, -30dB
Selector 1: Tuner, Phono 1, Selector 2classicaudio.com
Selector 2: Mic, Phono2, Aux 1, Aux 2
Power
Muting: -20dBclassicaudio.com
Low Filter: Off, Subsonic, 30Hz
Tone Defeat
High Filter: 12kHz, Off, 8kHz
Loudnesscclassicaudio.comlassicaudio.com
Tape Monitor: 1, Source, 2
Tape Duplicate
Mode: Stereo Rev, Norm, L+R, L, Rclassicaudio.com
Jacks:
Headphones
Indicators:
Protection
Powerclassicaudio.com
Rear Panel:
AC Outlet Unswitched (2)
AC Outlet Switched
Mic Input (L, R)classicaudio.com
Power In (L, R)
Pre Out (L, R)
Pre/Power Mode: Normal, Separated-Subsonic Off, Separated-Subsonic On
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Tape Monitor 2 DIN
Aux 1 Input (L, R)classicaudio.com
Aux 2 Input (L, R)classicaudio.com
Phono 1 Input (L, R).
Phono 2 Input (L, R)
Phono 2 Impedance: 100kOhm, 50kOhm, 25kOhmclassicaudio.com
Phono 2 Level Trim
Aux 2 Level Trimclassicaudio.com
Speaker B Level Trim
Speakers A (L, R)
Speakers B (L, R)classicaudio.com
Speakers C (L, R)Shipping Weight 40 lbs.
 |
