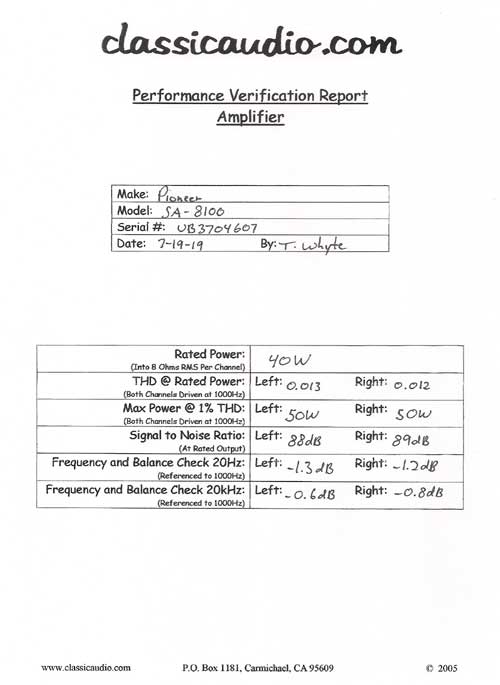

Pioneer model SA-8100 integrated amplifier and TX-8100 AM/FM Stereo in very good condition. The SA-8100 is rated at 40 watts RMS into 8 ohms and 50 watts RMS into 4 ohms. Built like a tank and loaded with features. These units have been serviced and fully tested. Our Performance Verification Report is included for each unit and a copy of the owner's manual as well.

Sold as a set only.

From Pioneer:

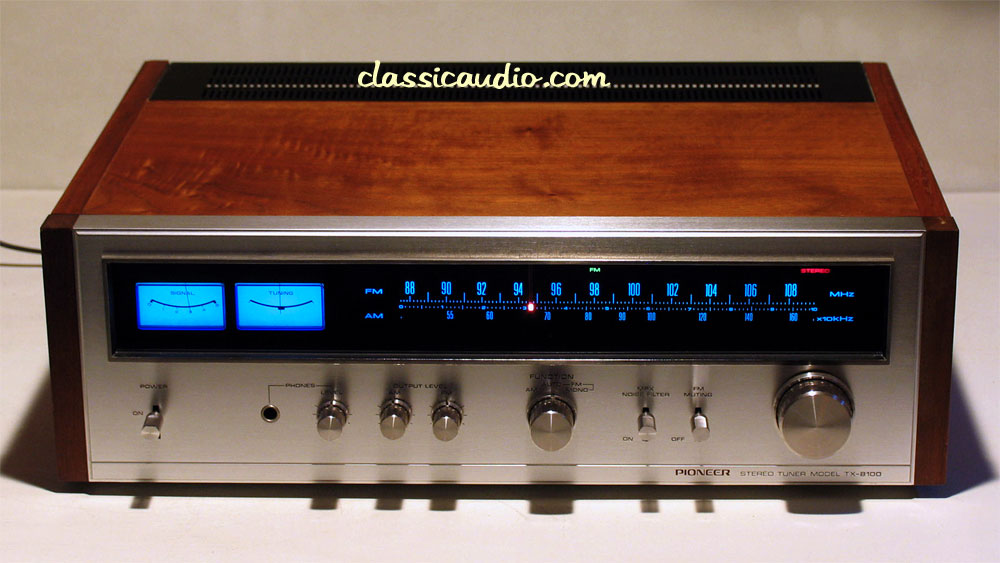

The TX-8100 is Pioneer's high sensitivity FM/AM stereo tuner.

The 4 gang variable capacitor and dual gate MOS FETs in the FM front end result in an image rejection of more than 85dB and spurious rejection of more than 100dB. New high performance LSI circuits for FM IF section and phase linear ceramic filters offer excellent selectivity characteristics.

Other features include FM multipath output terminals, MPX noise filter, headphone output jack, dual meter tuning system, and fixed and variable output level controls.

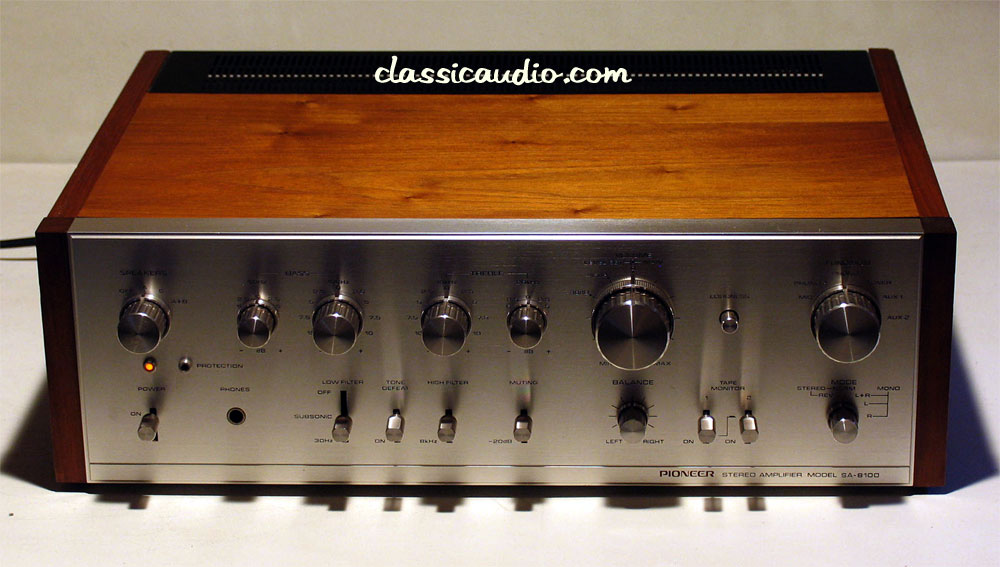

The SA-8100 is Pioneer's big power integrated stereo amplifier.

It features a unique twin tone control system for versatile tonal adjustment, high and low subsonic filters and high stability, reliable pure complementary OCL power amplifier design, with differential amplifier at the first stage. Large electrolytic capacitors ensure stable operation.

---

SA-8100

Controls:

Bass 50Hz: -5dB -2.5dB, 0, +2.5dB +5dBclassicaudio.com
Bass 100Hz: -10dB, -7.5dB, -5dB, -2.5dB, 0 ,+10dB, +7.5dB, +5dB, +2.5dB
Treble 10kHz: -10dB, -7.5dB, -5dB, -2.5dB, 0 ,+10dB, +7.5dB, +5dB, +2.5dB
Treble 20kHz: -10dB, -7.5dB, -5dB, -2.5dB, 0 ,+10dB, +7.5dB, +5dB, +2.5dBclassicaudio.com
Balance
Volumeclassicaudio.com

Switches:

Speakers: Off, A, B, A+Bclassicaudio.com
Level Set: 0, -15dB, -30dB
Selector: Mic, Phono 1, Phono 2, Tuner, Aux 1, Aux 2
Power
Muting: -20dBclassicaudio.com
Low Filter: Off, Subsonic, 30Hz
Tone Defeat
High Filter: 8kHz
Loudnesscclassicaudio.comlassicaudio.com
Tape Monitor 1
Tape Monitor 2
Mode: Stereo Rev, Norm, L+R, L, Rclassicaudio.com

Jacks:

Headphones

Indicators:

Protection
Powerclassicaudio.com

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switched
Mic Input (L, R)classicaudio.com
Power In (L, R)
Pre Out (L, R)
Pre/Power Mode: Normal, Separated-Subsonic Off, Separated-Subsonic On
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Tape Monitor 2 DIN
Aux 1 Input (L, R)classicaudio.com
Aux 2 Input (L, R)classicaudio.com
Phono 1 Input (L, R).
Phono 2 Input (L, R)
Phono 2 Level Trim
Aux 2 Level Trimclassicaudio.com
Speakers A (L, R)
Speakers B (L, R)classicaudio.com

Shipping Weight 35 lbs.

---

TX-8100

Controls:

Phones Level
AM Level
FM Levelclassicaudio.com
Function: AM, FM Auto, FM Mono

Switches:

Powerclassicaudio.com
Multiplex Filterclassicaudio.com
Muting Level

Jacks:

Headphones

Indicators:

AM
FMclassicaudio.com
STEREO

Rear Panel:

AC Outlet Unswitched
Output Fixed (L, R)classicaudio.com
Output Variable (L, R)
FM Multipath (H, V)
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com

Shipping Weight 25 lbs.



$1200.00



ClassicAudio.com
Phone 916-488-6016 or
To send email click here.



Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

---

TX-8100 Power Supply Refurb:

BEFORE

AFTER

SA-8100 Power Supply Refurb:

BEFORE

AFTER

The Dial and Meter lamps in the TX-8100 have been changed to LEDs.
