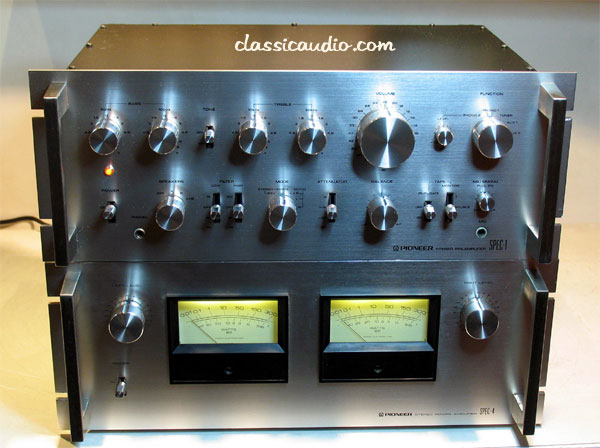

Pioneer TX-9500, SG-9500, SPEC-1 and SPEC-4 For Sale

Pioneer model TX-9500 AM/FM Stereo tuner in excellent condition with optional JA-R101 rack mount adapter.
The TX-9500 is the top of the line and features superior build quality with outstanding performance. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

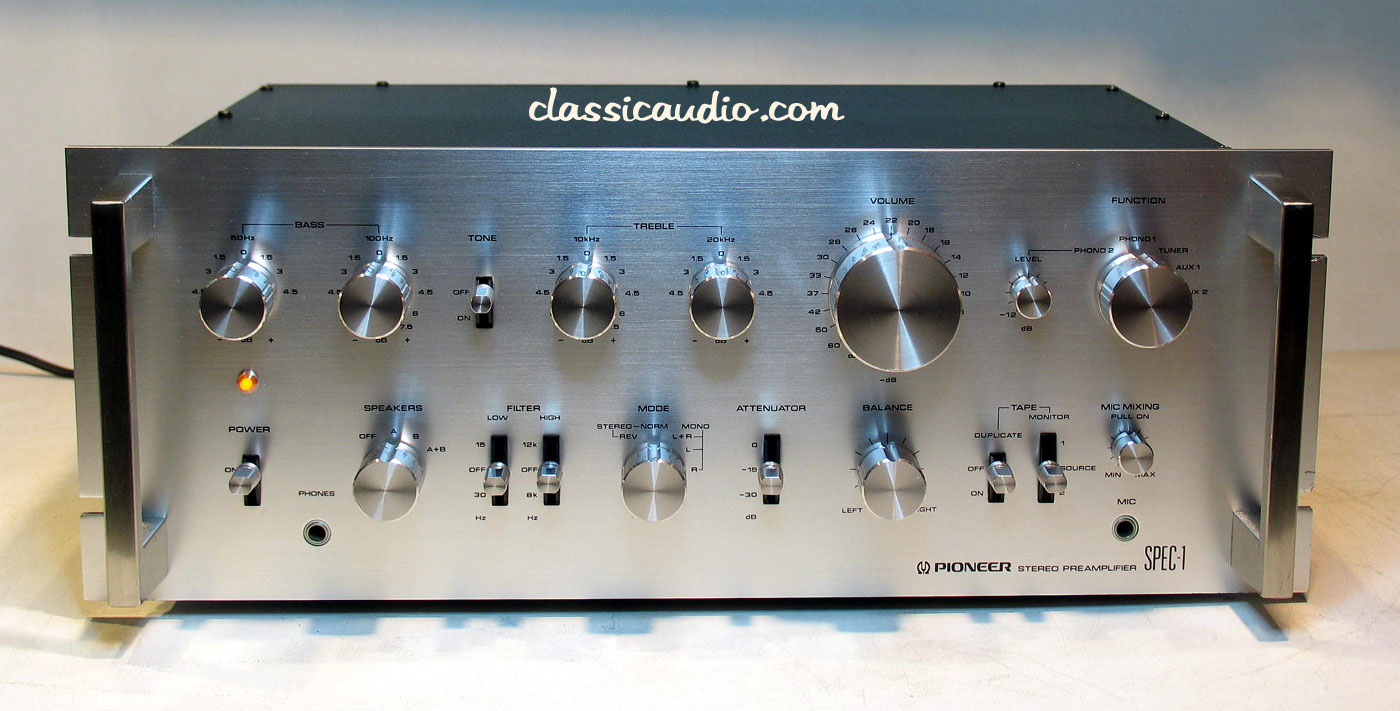

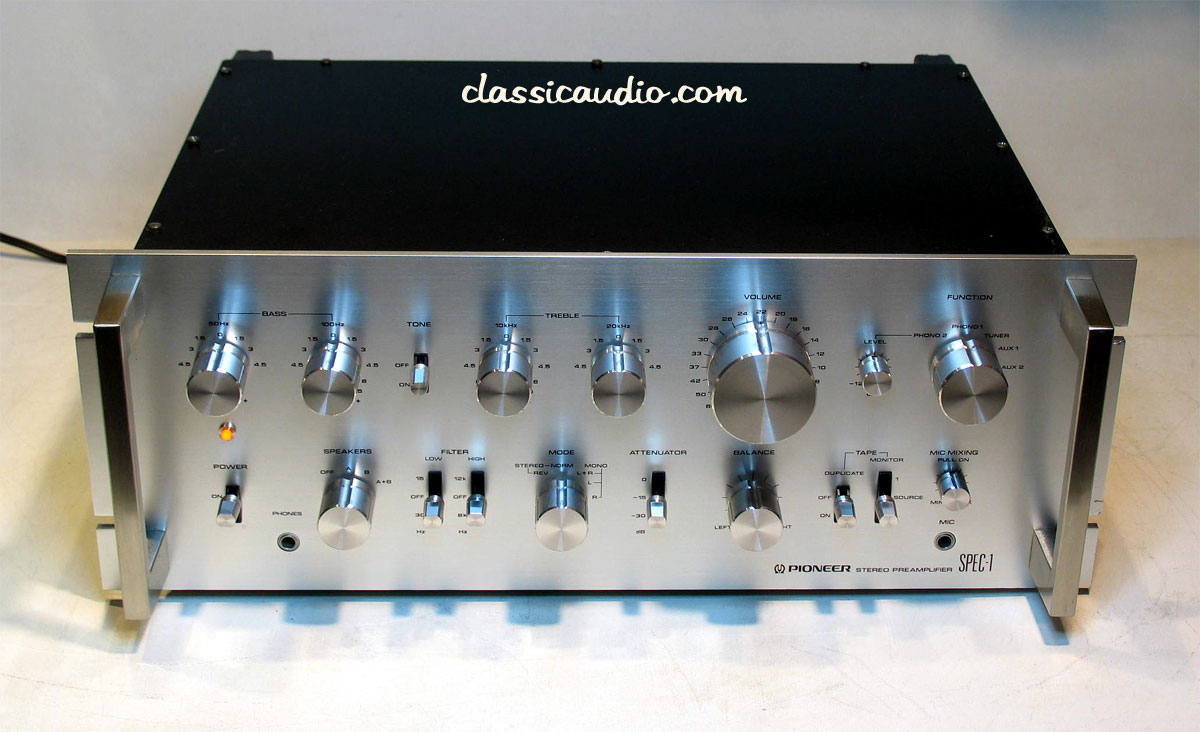

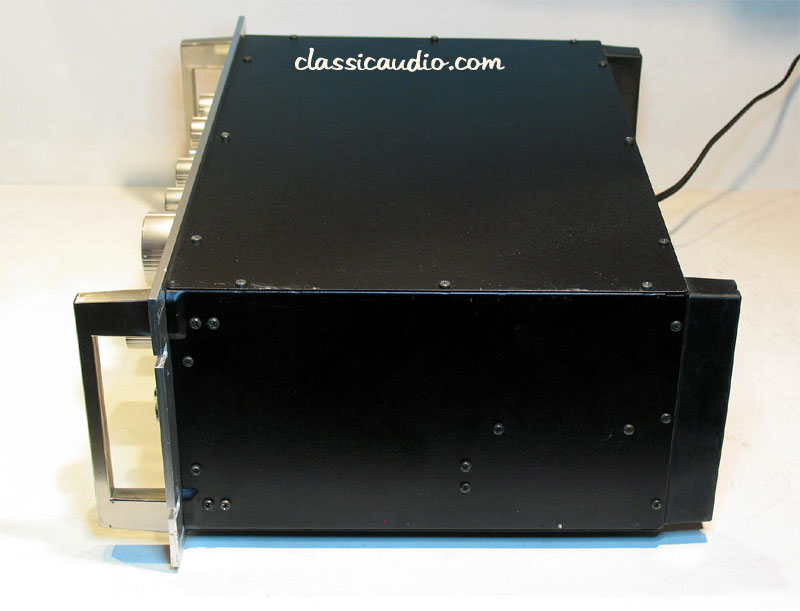

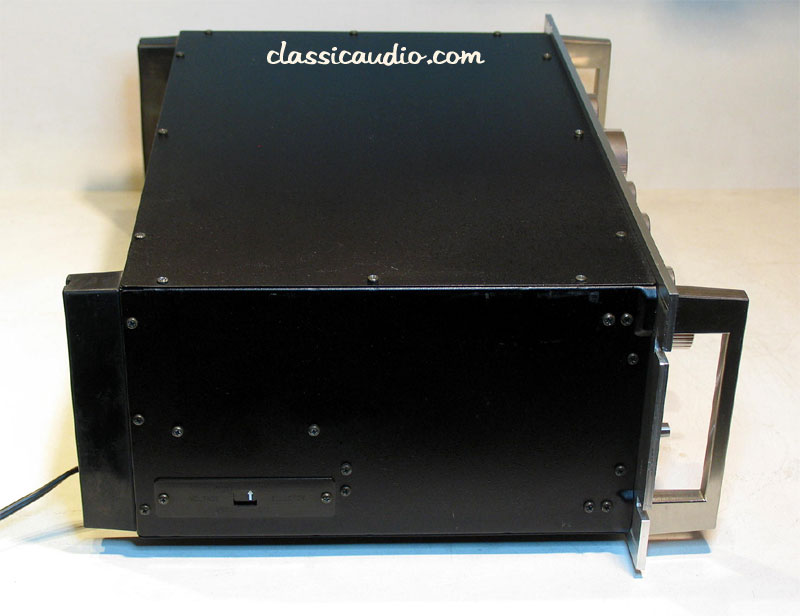

Pioneer model SPEC-1 preamplifier in excellent condition.

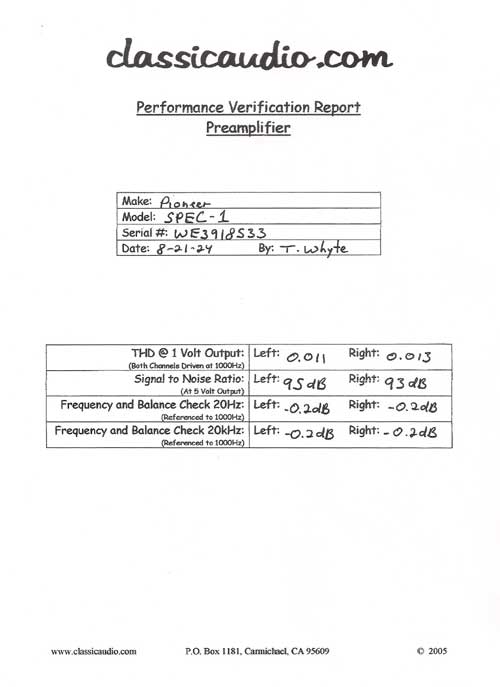

The SPEC-1 is the top of the line and features superior build quality with outstanding performance. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

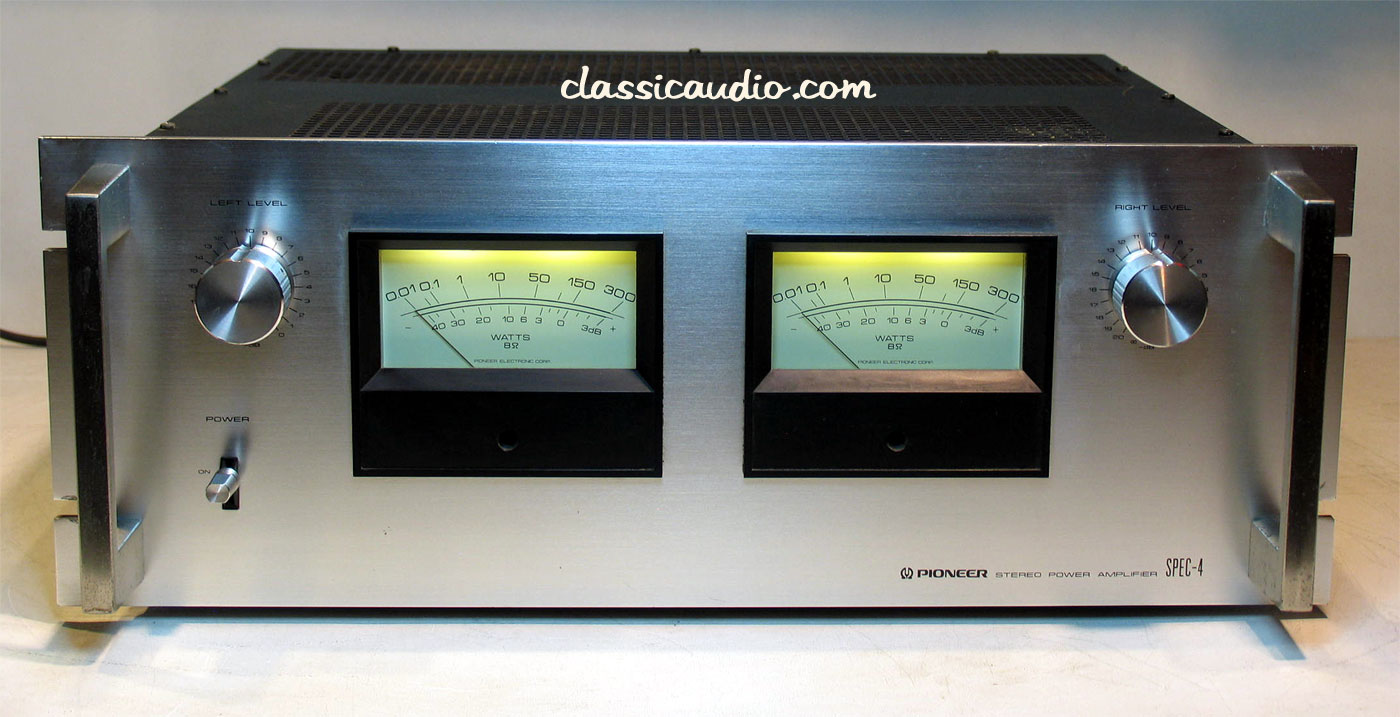

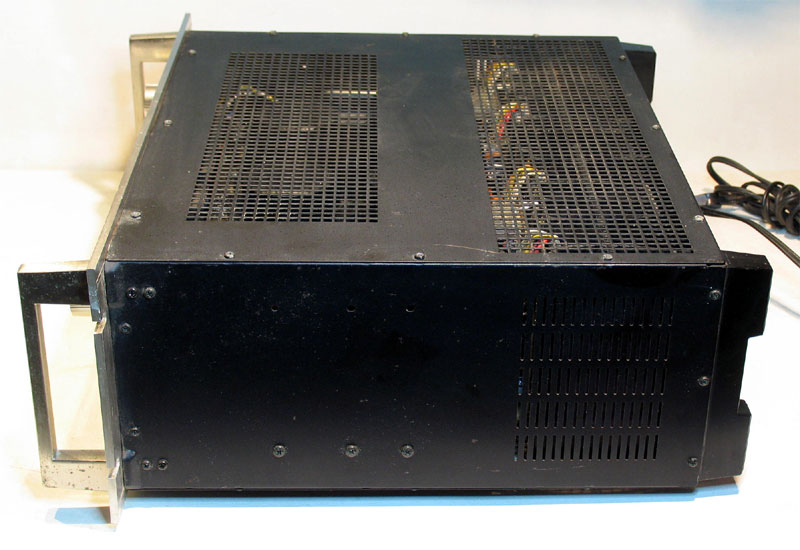

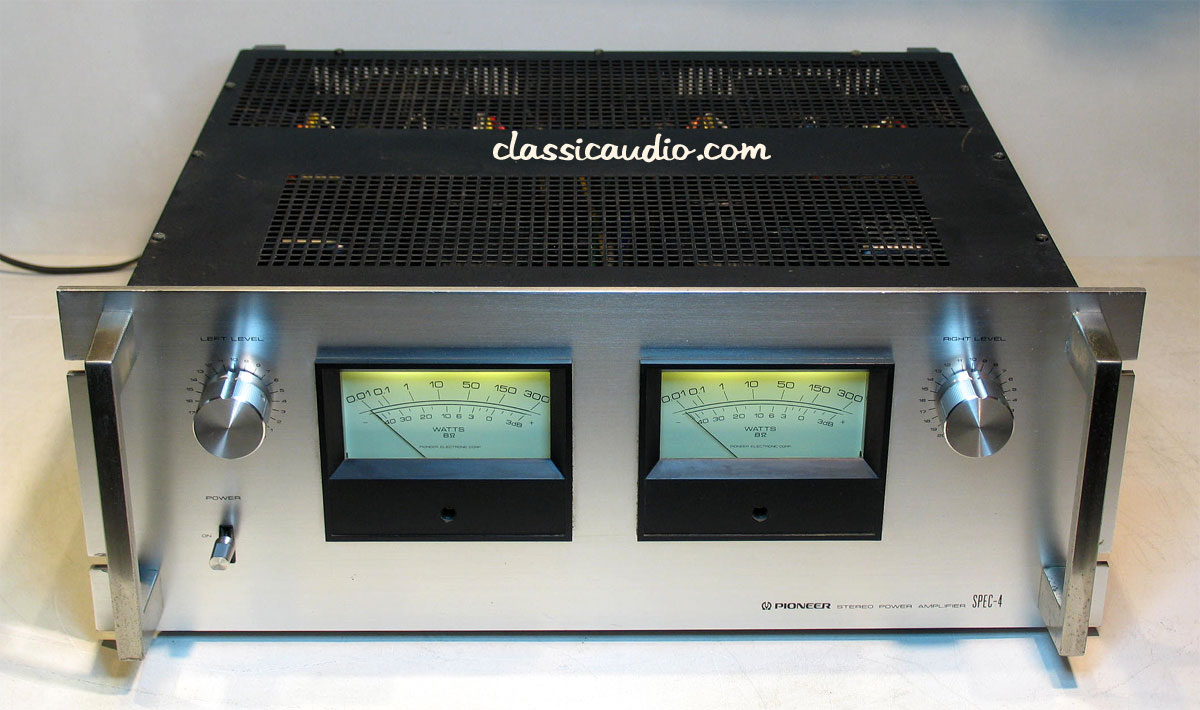

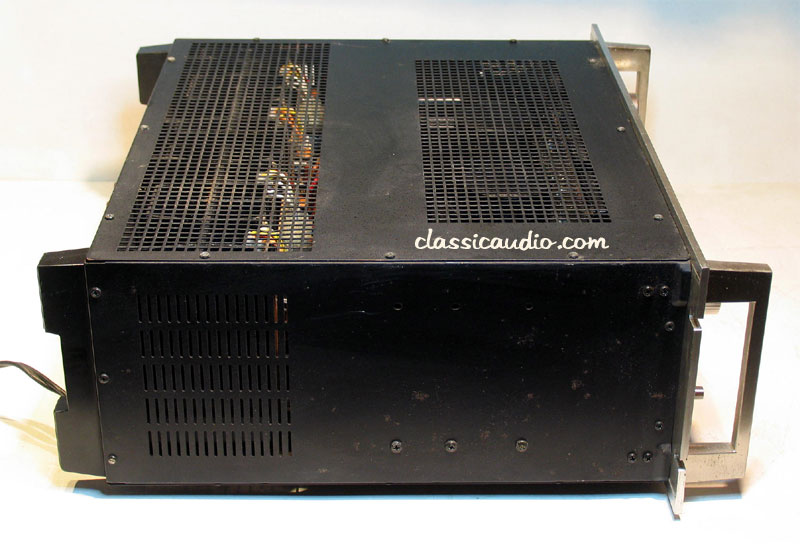

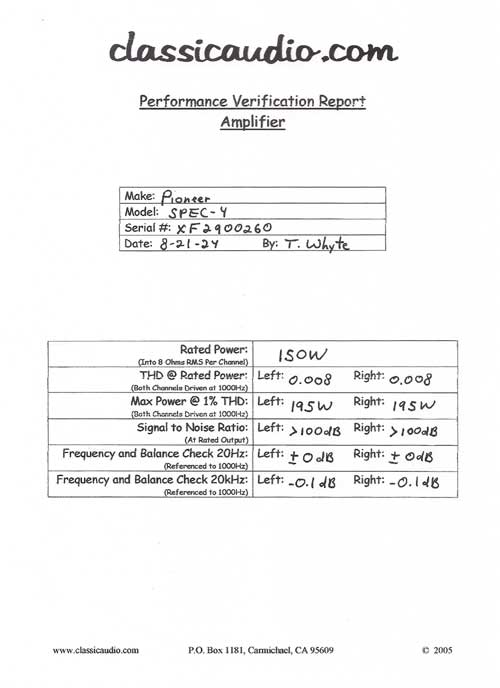

Pioneer model SPEC-4 power amplifier in excellent condition. Rated at 150 watts RMS per channel into 8 ohms and 180 watts RMS per channel into 4 ohms.The SPEC-4 is the top of the line and features superior build quality with outstanding performance. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

Sold only as a set.

From Pioneer regarding the TX-9500:

Inside it's one of the most circuit-packed AM/FM tuners Pioneer have ever built. And outside it's one of the cleanest and most simple to use. The Pioneer TX-9500 has a new streamlined look, logically-arranged switches and controls, and a scientifically-designed tuning system that makes it all look so easy. But it's what's inside that counts: dual-gate MOS FETs and a 5-gang variable capacitor boost FM front end sensitivity to a superb 1.5uV (IHF). The FM IF has 7 ICs with differential amps, 4 ceramic filters (with 2 elements each) and a wide-band linear detector to pinpoint selectivity at 85dB or better and beef up the capture ratio to 1.0dB (IHF). Even in stereo the S/N is a super high 75dB, with total harmonic distortion of 0.2% at 1KHz.Thanks to the PLL MPX (phase lock loop multiplex) demodulator, stereo separation stretches to a wide 35dB over the 50 to 10,000Hz range. Stability? Even in signal-weak or signal-strong areas your station comes in clean and fresh. Planning to record off the air? Hit the switch for the built-in 440Hz test signal generator and check the output level against your deck's VUs for optimum adjustment before the music begins.

From Pioneer regarding the SG-9500:

The complex control functions of the SG-9500 are not limited merely to the equalization of a simple program source, but can also provide precise tone corrections for the playback equipment (turntable and tape deck), speakers and listening room. Musical program sources can also be modified to improve the sound of technically inferior recordings or to tailor them to suit your personal taste. The SG-9500 is a highly versatile audio component.

From the Pioneer regarding SPEC-1:

The Spec-1 has differential amplifier circuitry incorporated in the equalization and tone control amplifiers. This is complemented by a dual positive and negative power supply system for all amplifier sections, which provides improved DC balance and stability, while eliminating click noises due to switching. An electronic muting circuit, employing a reed relay, blocks surge noise associated with power switch operation.

From Pioneer regarding the SPEC-4:

The Spec-4 employs DC construction which excludes capacitors from the NFB circuits and uses a dual transistor differential amplifier with a current mirror circuit in the 1st stage. This provides a stable operation and also high gain over a wide frequency range. The pre-driver stage is a class A circuit with a regulated current circuit for the load. This makes for high gain amplification with superior linearity. Furthermore, there is an overdrive limiter and power limiter circuit which is designed to protect the power transistors and make for added reliability.

TX-9500

Controls:

Output Levelclassicaudio.com
Function: AM, FM Auto, FM Mono, Rec Level Check

Switches:

Powerclassicaudio.com
MPX Noise Filter
Muting Level: Off, 1, 2

Indicators:

POWERclassicaudio.com
STEREO

Rear Panel:

AC Outlet Unswitched
Output Fixed (L, R)classicaudio.com
Output Variable (L, R)
Scope (H, V)
FM De-Emphasis: 25uS, 75uS
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com

Shipping Weight 45 lbs.

SPEC-1

Controls:

Bass 50 Hz +/- 4.5 dBclassicaudio.com
Bass 100 Hz +/- 7.5 dB
Treble 10 kHz +/- 7.5 dB
Treble 20 kHz +/- 4.5 dBclassicaudio.com
Balance
Volumeclassicaudio.com
Phono 2 Level
Mic Mixing On/Off - Level

Switches:

Function: Phono2, Phono 1, Tuner, Aux 1, Aux 2
Speakers: Off, A, B, A+B, classicaudio.com
Tone: On/Off
Low Filter 15/30
High Filter 12k/8k
Mode: Rev, Norm, L+R, L, Rclassicaudio.com
Attenuator: 0, -15dB, -30dBclassicaudio.com
Tape Monitor: 1, Source, 2
Tape Duplicate
Power

Jacks:

Headphones
Mic

Indicators:

Powerclassicaudio.com

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switched (3)
Output 1 (L, R)
Output 2 (L, R)
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Aux 1 Input (L, R)classicaudio.com
Aux 2 Input (L, R)classicaudio.com
Tuner (L, R)
Phono 1 Input (L, R).
Phono 2 Input (L, R)
Speakers In (L, R)
Speakers A (L, R)
Speakers B (L, R)classicaudio.c

Shipping Weight 42 lbs.

SPEC-4

Controls:

Left Channel Level
Right Channel Levelclassicaudio.com

Indicators:

Left Channel Power/dB
Right Channel Power/dBclassicaudio.com

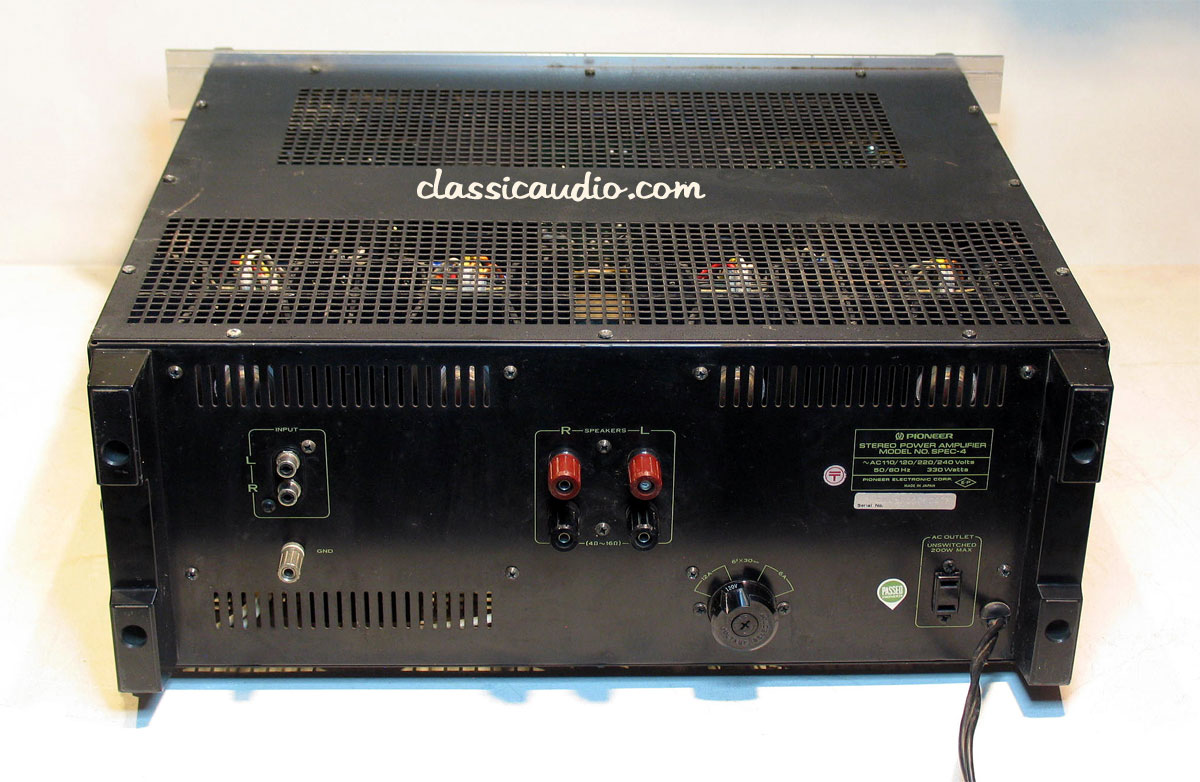

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
Input Right
Input Leftclassicaudio.com
Speaker System (R, L)

Shipping Weight 65 lbs.

$3200.00

ClassicAudio.com
Phone 916-488-6016 or
To send email click here.

Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!
