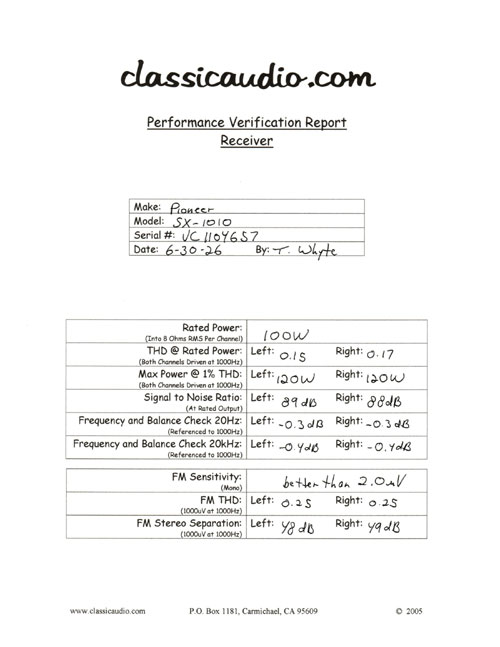

Pioneer model SX-1010 AM/FM receiver in very good condition. Rated at 100 watts RMS per channel into 8 ohms. Top of the line for the "black out dial" series, has every bell and whistle available at the time. This unit has been serviced and fully tested. Our original Performance Verification Report included.



From Pioneer:

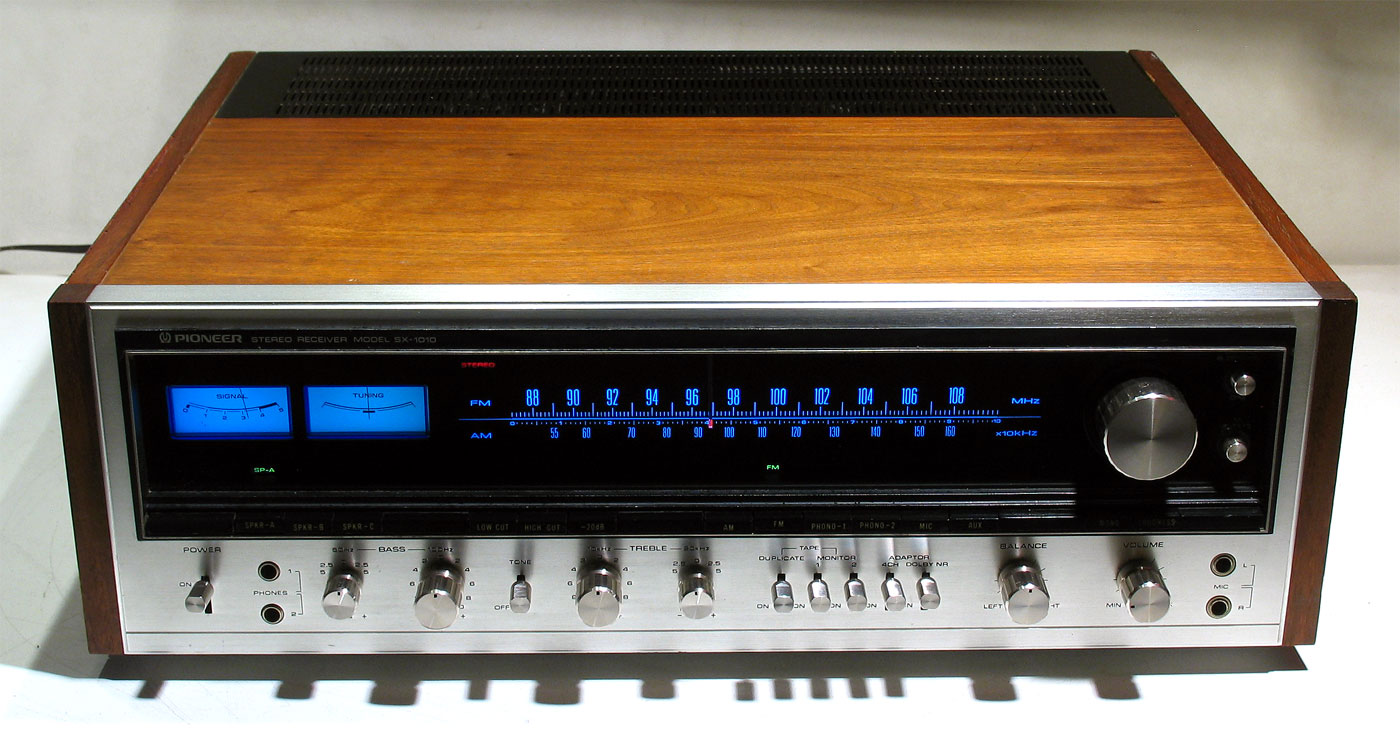

The SX-1010 is Pioneer's top of the line FM/AM stereo receiver.

Features include an FM front end with dual-gate FETs, ceramic filters and ics in IF stages for sharp selectivity, quadrature detection, phase lock loop (PLL) stereo demodulator, all IC equipped AM section with linear dial, balanced positive and negative power supply with heavy duty components, and a phono equalizer with wide dynamic range and extremely close tolerances.

The twin tone controls permit precise shaping of sound and direct-coupled power amplifier supplies high output power with minimum distortion.

Controls:

Bass 50Hz +/-5dBclassicaudio.com
Bass 100Hz +/-10dB
Treble 10kHz +/-10dBclassicaudio.com
Treble 20kHz+/-5dB
Balanceclassicaudio.com
Volume

Switches (Toggle):

Powerclassicaudio.com
Tone Off
Tape Duplicateclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor 4-CH
Adaptor Dolby NRclassicaudio.com

Switches (Push):

Spkr-Aclassicaudio.com
Spkr-B
Spkr-Cclassicaudio.com
Low Cut
High Cutclassicaudio.com
-20dB
AMclassicaudio.com
FM
Phono 1classicaudio.com
Phono 2
Micclassicaudio.com
Aux
Monoclassicaudio.com
Loudness

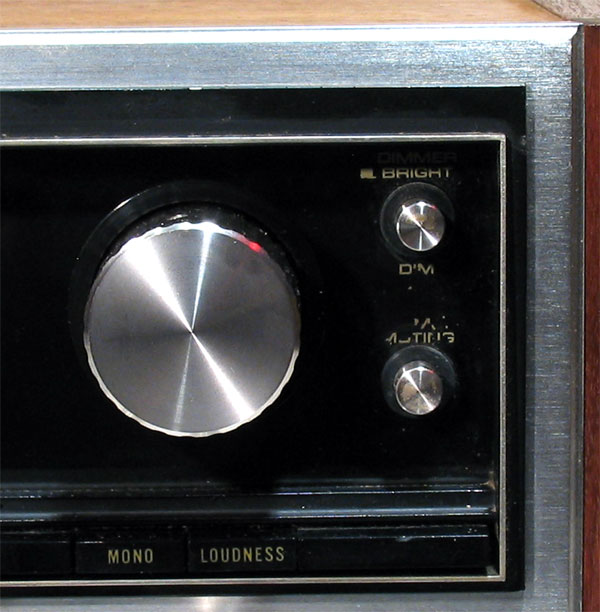

Dimmer: Bright/Dimclassicaudio.com
FM Muting Off

Jacks:

Mic-Lclassicaudio.com
Mic-R
Headphones 1classicaudio.com
Headphones 2

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
STEREOclassicaudio.com
SP-A
SP-Bclassicaudio.com
SP-C
LOWclassicaudio.com
HIGH
-20dB
AMclassicaudio.com
FM
PH-1
PH-2classicaudio.com
MIC
AUXclassicaudio.com
MONO
LOUDclassicaudio.com

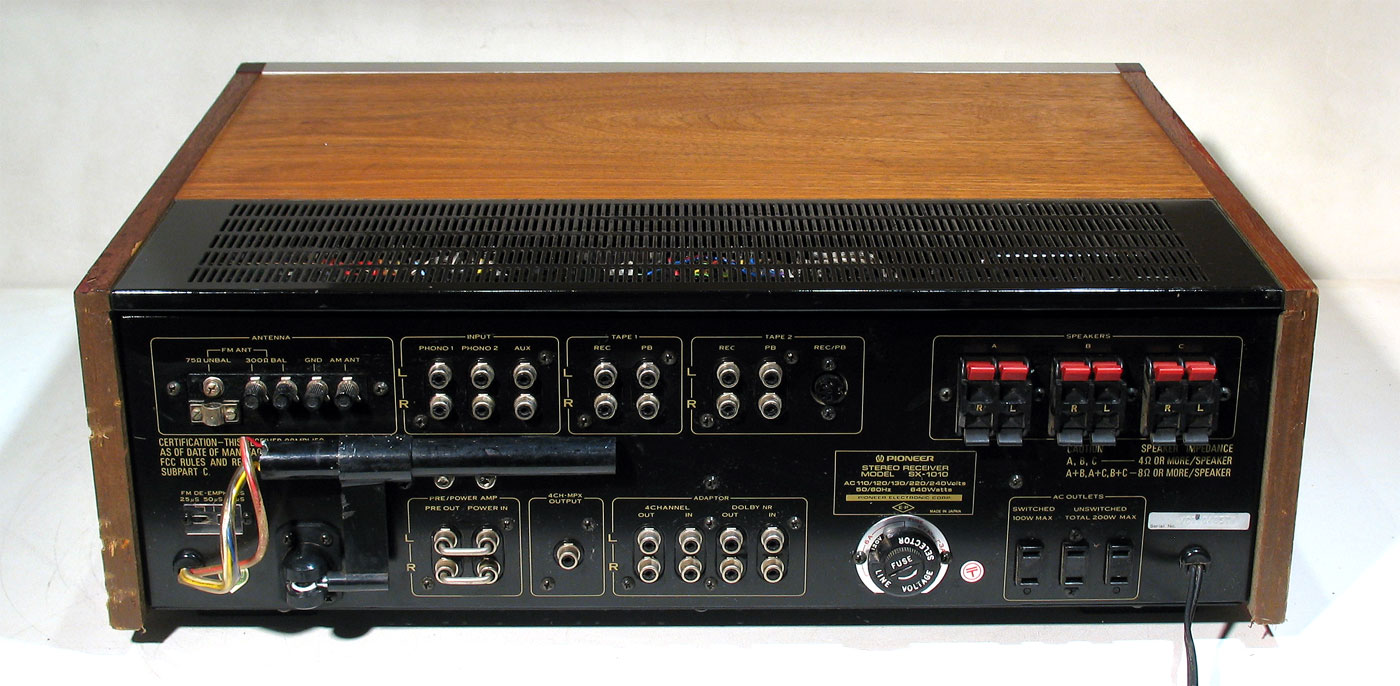

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Rec (L, R)
Tape Monitor 1 PB (L, R)classicaudio.com
Tape Monitor 2 Rec (L, R,)
Tape Monitor 2 PB (L, R, DIN)classicaudio.com
Pre-Out (L, R)
Power-In (L, R)classicaudio.com
4-CH MPX Output
Adapter 4-CH Out (L, R)classicaudio.com
Adapter 4-CH In (L, R)
Adapter Dolby NR Out (L, R)classicaudio.com
Adapter Dolby NR In (L, R)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)classicaudio.com

Shipping Weight 59 lbs. 25 x 21 x 13

$1600.00



ClassicAudio.com
Phone 916-488-6016 or
To send email click here.



Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

---

---

SX-1010 Power Supply Refurb:

BEFORE

AFTER

Also Refurbished:
Left and Right channel amp sections.

Meter and Dial Lamps have been converted to LEDs.

Main power supply capacitors have been upgraded to 22,000uF 80V type.
