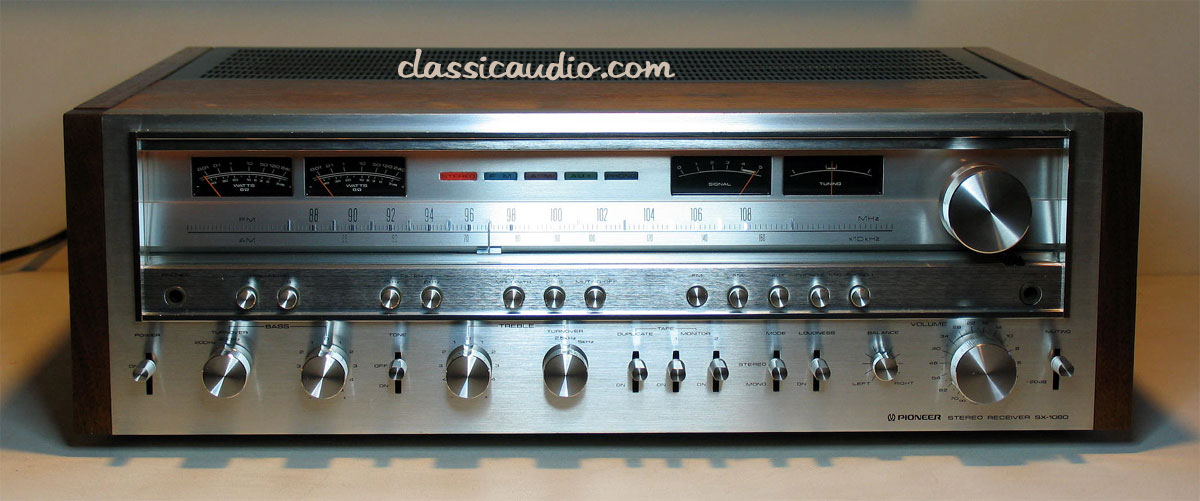

Pioneer model SX-1080 AM/FM Receiver in excellent condition. Rated at 120 watts per channel into 8 ohms and 150 watts per channel into 4 ohms. It has been serviced and fully tested. Our original Performance Verification Report included.

From Pioneer:

The Pioneer SX-1080 is an AM/FM stereo receiver with direct coupled DC power amplifier giving a continuous power output of 120 watts per channel.

The receiver features outputs for 2 pairs of speakers, turnover tone controls, 6dB/octave high and low filters, two large wattage meters and a current mirror loaded class-A SEPP phono equalizer with one-stage differential amplifier and new voltage proof IC equivalent to 15 discrete transistors.

Controls:

Bass: -/+5 classicaudio.com
Bass Turnover: 200Hz/400Hz
Treble: -/+5classicaudio.com
Treble Turnover: 2.5kHz/5kHz
Balanceclassicaudio.com
Volume

Switches (Toggle):

Powerclassicaudio.com
Tone: On, Offclassicaudio.com
Tape Duplicate
Tape Monitor 1
Tape Monitor 2classicaudio.com
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dB

Switches (Push):

Speakers A classicaudio.com
Speakers B
Filter 15Hz classicaudio.com
Filter 8kHz
FM Multipath
FM 25uS classicaudio.com
FM Muting Off
FM classicaudio.com
AM
Aux
Phono 2/Mic classicaudio.com
Phono 1

Indicators:

Watts 8 Ohm Left Channel
Watts 8 Ohm Right Channel
Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
FM
AMclassicaudio.com
AUXclassicaudio.com
PHONO

Jacks:

Phones
Mic classicaudio.com

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antenna
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Aux (L, R)
Tape 1 Rec (L, R)classicaudio.com
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)
Pre-Out (L, R)classicaudio.com
Main-In (L, R)
FM De-emphasis: 50uS, 75uS

Shipping Weight 55 lbs.

$1100.00



ClassicAudio.com
Phone 916-488-6016 or
To send email click here.

Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

---

---

SX-1080 Power Supply Refurb:

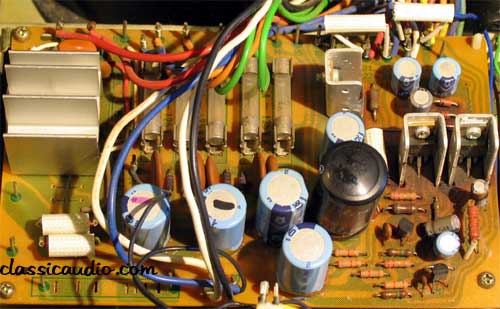

BEFORE

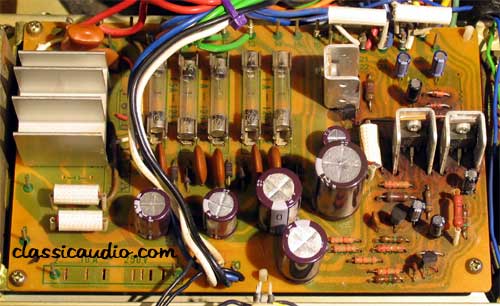

AFTER
