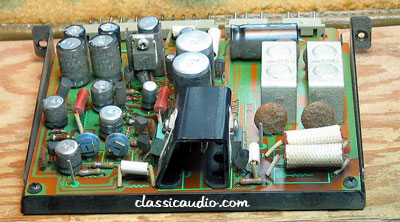

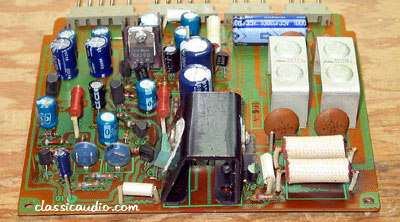

Pioneer model SX-1250 AM/FM stereo receiver in immaculate condition. Acquired from the original owner. Rated at 160 watts RMS per channel into 8 ohms and 200 watts RMS into 4 ohms. It has been serviced and fully tested. Our original Performance Verification Report included.
Notable Features:
- Toroidal Power Transformer
- Step Attenuator Volume Control
- Massive Dual Power Supply with Step-Start Circuit
- Fully Shielded FM Section with 5-Gang Tuning Capacitor
- Fully Shielded Phono Section
Also Included With This Item:
Original Serial Number Matching Box with Packing

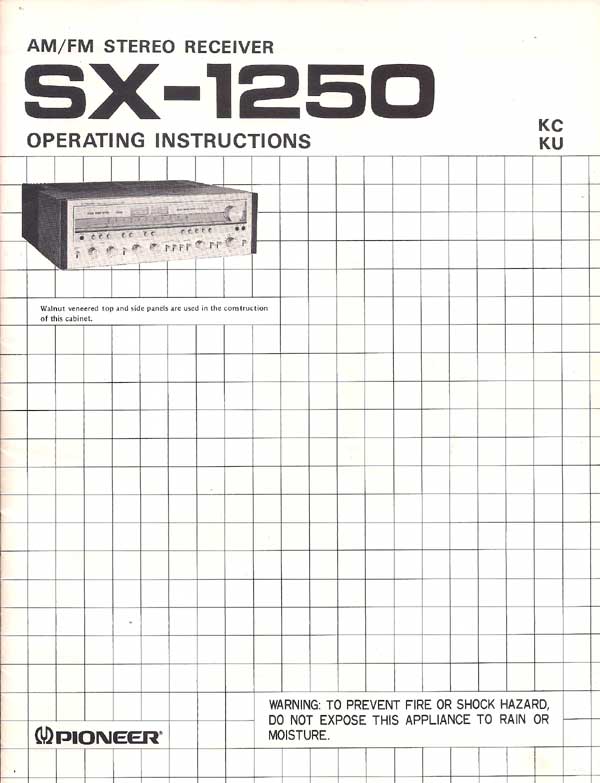

Original Owner's Manual w/Schematic

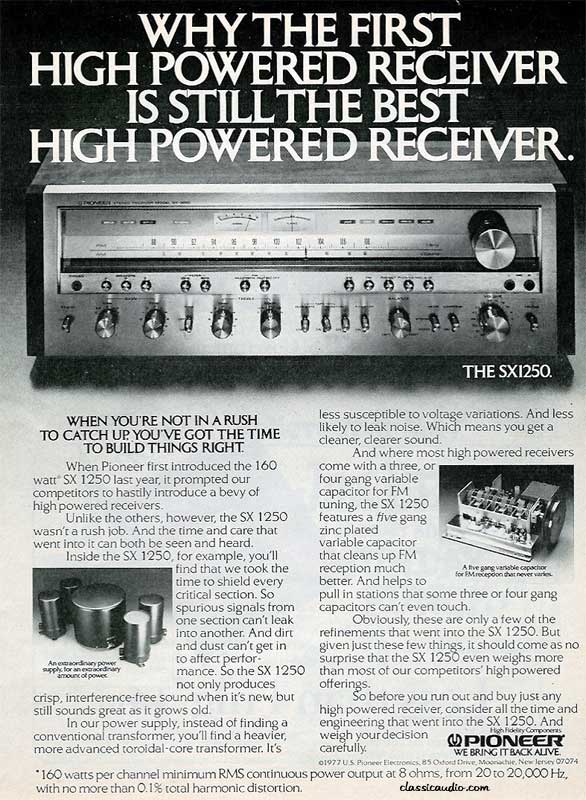

Original 6 Page Color Product Brochure
Original Purchase Receipt Dated January 18, 1977
From Pioneer:
When you go to buy a new receiver, ask yourself these questions:
Does its FM tuner section guarantee high performance of spurious rejection as well as high sensitivity?
Does it include the very latest electronics circuit technology to assure a constant stable and high quality sound reproduction from small to large power output?
Are you going to be proud to own it for a long, long time?
Pioneer's new and elegantly designed SX-1250 AM/FM receiver provides a resounding yes to each of these questions - and then some.
No other Pioneer receiver provides such incomparable FM performance and sensitivity and then combines it with mammoth continuous power output of 160W per channel, min RMS at 8 Ohms, from 20 Hertz to 20,000 Hertz, with no more than 0.1% total harmonic distortion.
From the Web:

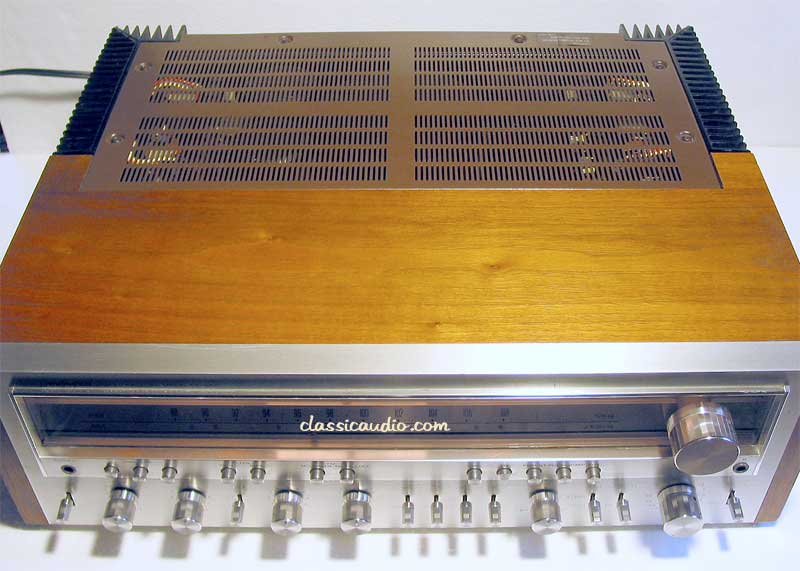

The SX-1250 was introduced in 1976 as Pioneer's top-of-the-line receiver. It reflected Pioneers new styling of matching silver tuning dial with white background signal strength and stereo signal meters. It was Pioneer's most powerful and feature-laden receiver that year, capable of pumping out 160 watts per channel. It was beautifully finished in walnut veneers and solid walnut trim. It had a list price of $900.00 (thats over $4480.00 in today's dollars) and tipped the scales at 65 pounds.

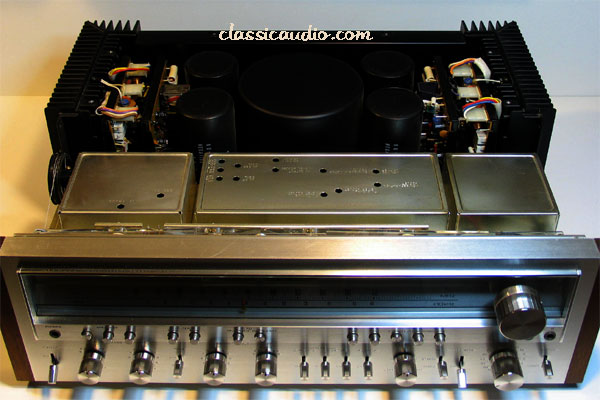

The SX-1250's beauty was more than skin-deep. As Pioneer's best receiver, the engineers lavished a major design engineering budget in designing it. With the covers off, you can see the careful and logical layout of the receiver's hefty toroidal transformer and four massive capacitors, flanked by the component circuit boards. Pioneer designed large wrap-around heatsinks to dissipate the SX-1250's full-tilt operating temperature.
The SX-1250 was the largest receiver Pioneer had ever built up to that time. The view with the cover off shows why: the engineers needed every square inch they could get to package the components. The receiver measured 22.0 inches wide, 18.75 inches deep, and 7.50 inches high.
The quality, power and good looks of this receiver not only made it a popular choice for buyers in 1976 and 1977 when it was offered, it is one of the most sought-after Pioneer receivers today.
 |
Controls:
Bass 50Hz: -2.5dB, -5dB, 0, +2.5dB, +5dB classicaudio.com
Bass 100Hz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Treble 10KHz: -2.5dB, -5dB, 0, +2.5dB, +5dBclassicaudio.com
Treble 20KHz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Balanceclassicaudio.com
VolumeSwitches:
Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Speakers C
Filter 30Hzclassicaudio.com
Filter 8KHz
FM Multipath
FM Muting Offclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2/Mic
Auxclassicaudio.com
Power
Tone: On, Offclassicaudio.com
Tape Duplicate
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dBIndicators:
Signal Strength Meter
Tuning Meterclassicaudio.com
SPEAKER A
SPEAKER B
SPEAKER Cclassicaudio.com
STEREO
AM
FMclassicaudio.com
PH-1
PH-2
AUXclassicaudio.comJacks:
Phones
Mic Lclassicaudio.com
Mic RRear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antenna
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Aux (L, R)
Tape 1 Rec (L, R)classicaudio.com
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)
Adaptor Out (L, R)classicaudio.com
Adapter In (L, R)
Pre-Out (L, R)classicaudio.com
Main-In (L, R)
FM Det Out (4 Channel)classicaudio.com
FM De-emphasis: 25uS, 75uSShipping Weight: 75 Pounds 31 x 25 x 13
 |
