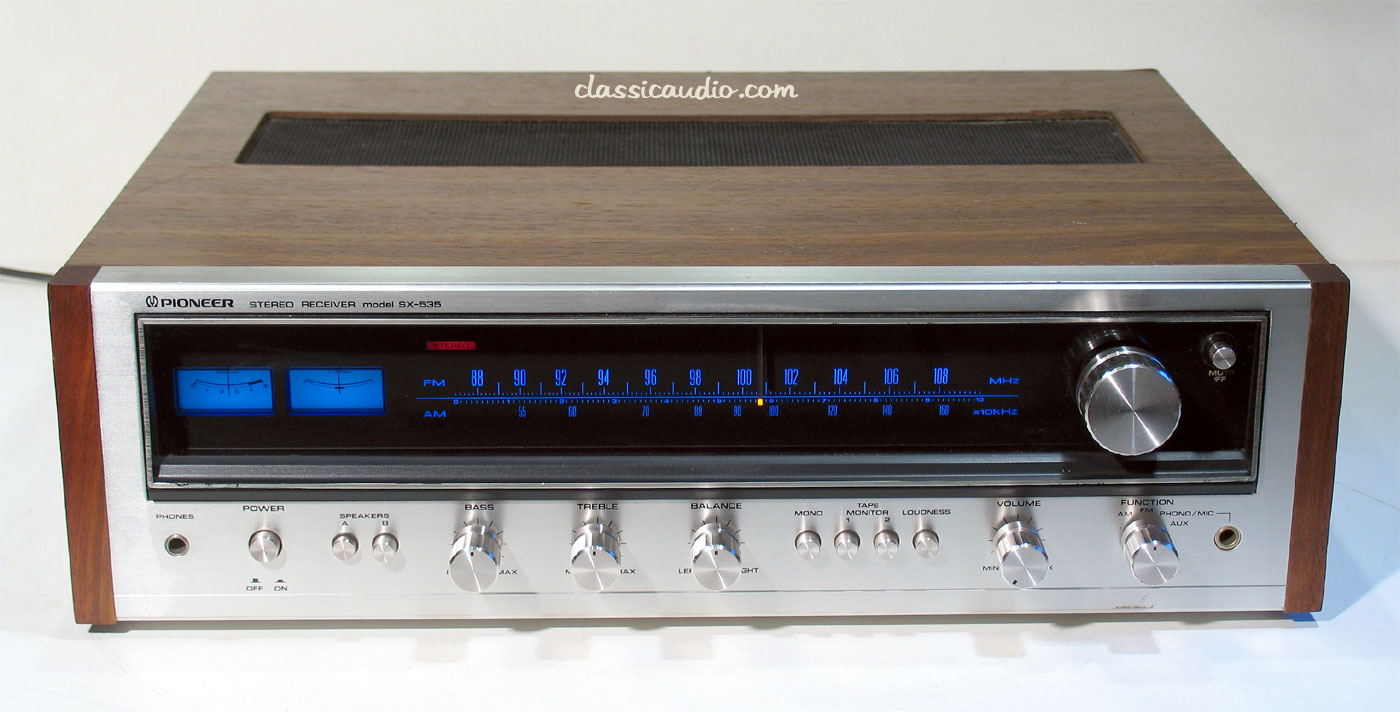

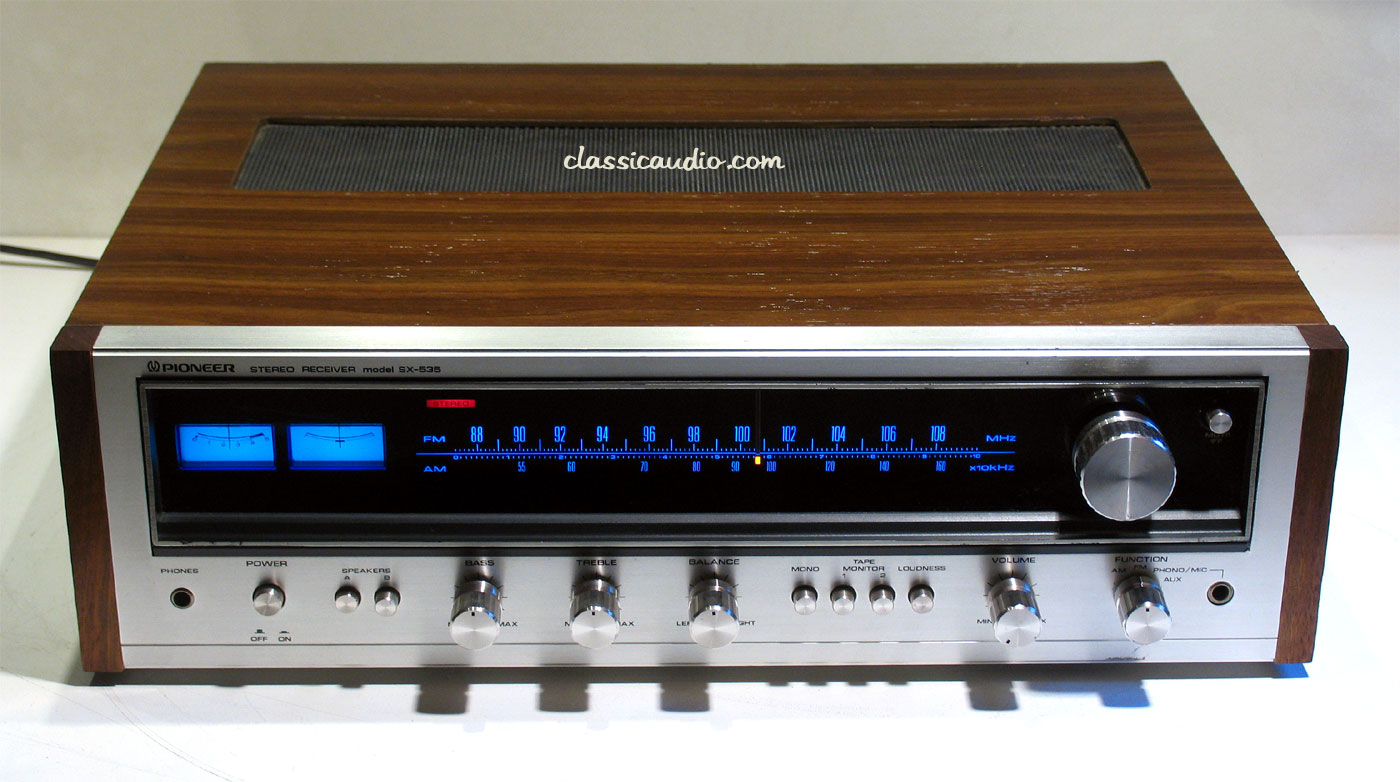

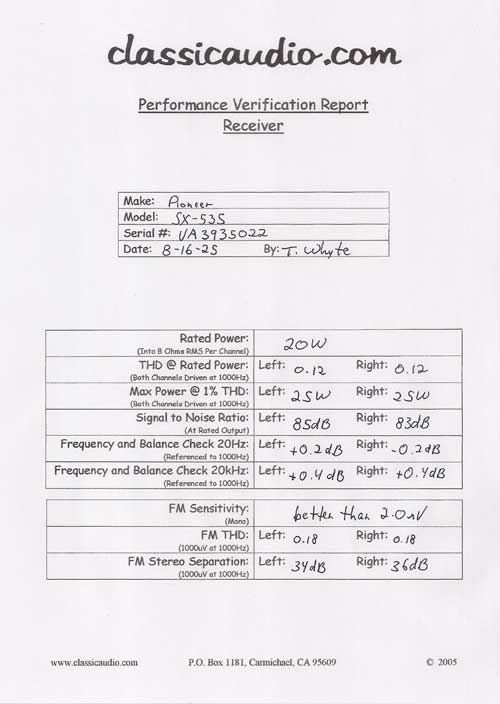

Pioneer model SX-535 receiver in good condition. Rated at 20 watts RMS per channel into 8 ohms. Will also drive 4 ohm loads. Classic "black out" dial styling. This unit has been serviced and fully tested. Our original Performance Verification Report included. It's a fine entry level vintage receiver with a great phono section.
(This receiver belonged to my dear friend Jane M. whom we lost in August of 2021. Do me a favor, give it a good home.)
From Pioneer:
Advanced Tuner Section
FM tuner section using high stability circuitry / FM front end with FET and rectilinear frequency three stage variable capacitor / IF amplifier circuitry with high reliable integrated circuits developed by Pioneer.
Incorporation of two twin-element phase-linear ceramic filters and high stability circuitry components makes for excellent image rejection, superior capture ratio, improved SN ratio plus selectivity - in short, tip-top performance all round.
Phase Locked Loop circuitry is used in the multiplex circuit to prevent deterioration due to temperature changes and the passage of time.
Pioneer's low distortion and excellent separation characteristics provide for stable operation which ensures enhanced FM stereo listening pleasure for you.
Low Distortion, Wide Range Power Amplifier
Thanks to the use of extra-reliable NPN and PNP silicon power transistors and a differential one-stage, completely and superior frequency characteristics are assured; moreover, the output range and the distortion characteristics are greatly improved.
The differential amplifier circuit and the temperature compensation circuit further ensure that the stability and superior performance of the Receiver are not subject to external conditions, and this adds up to extra stereo listening pleasure for the customer.
High Fidelity Preamplifier
The utilization of the finest components available in the equalizer circuit keeps deviation from the RIAA standards down to a minimum, thereby making an important contribution to the faithfulness of record reproduction.
A receiver which can handle any program source amongst the input jacks on the back panel are turntable and auxiliary connectors, two separate tape deck terminals (for cassette decks or open-reel decks) plus microphone jack on the front panel, so that any source whatever can be utilized to provide flexible listening pleasure.
Two Sets of Speaker Systems may be Connected
This receiver is furnished with two sets of speaker terminals on the back panel and the corresponding positions on the speaker selector switch. Thus you can play whatever music you are listening to through two pairs of speaker systems at once, so you can have the same program playing in two separate rooms simultaneously.
Advanced Ultramodern Design
The entire design of the SX-535 Receiver has been carefully thought out with efficient functioning in mind.
The entirely new-look receiver will fit in with the decor of your listening room perfectly, thanks to its tasteful wooden cabinetry and top quality appearance.
 |
Controls:
Bassclassicaudio.com
Treble
Balanceclassicaudio.com
Volume
Function: AM, FM, Phono/Mic, Auxclassicaudio.com
Switches:
Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Monoclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
Loudness
FM Muting Offclassicaudio.comJacks:
Micclassicaudio.com
HeadphonesIndicators:
Signal Strength Meter
Tuning Meterclassicaudio.com

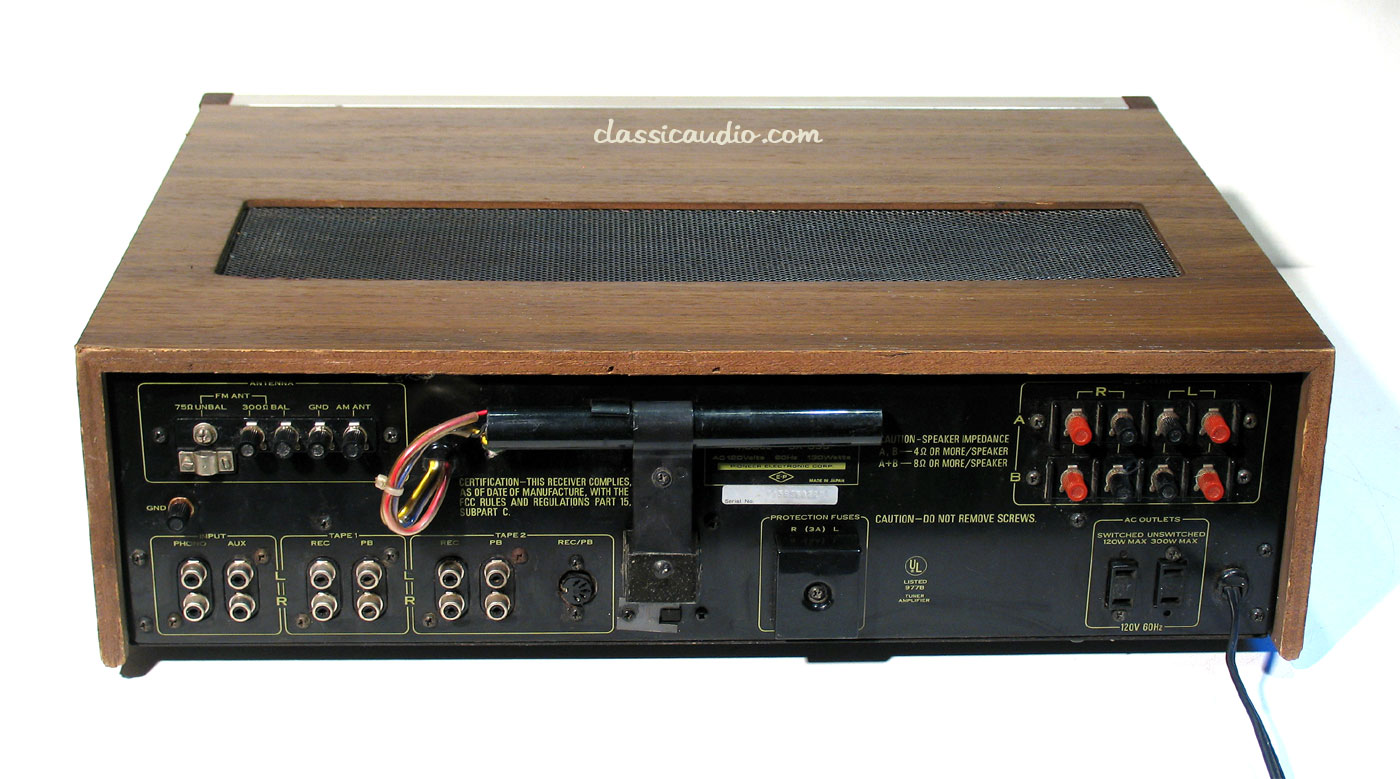

STEREORear Panel:
AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono Input (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor 1 In (L, R)
Tape Monitor 2 Out (L, R, DIN)classicaudio.com
Tape Monitor 2 In (L, R, DIN)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)Shipping Weight: 30 Pounds 22 x 18 x 12
 |
$299.95
 |
ClassicAudio.com
Phone 916-488-6016 or
Send email click here.
 |
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
Read what our customers say about us!
Meter, Dial and Pointer Lamps have been changed to LEDs.
