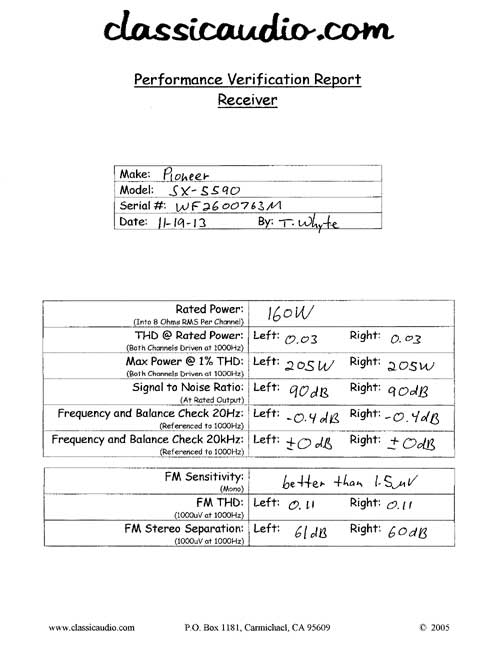

Pioneer model SX-5590 AM/FM stereo receiver in very good condition. Rated at 160 watts RMS per channel into 8 ohms and 200 watts RMS into 4 ohms. It has been serviced and fully tested. Our original Performance Verification Report included as well as a copy of the SX-1250 owner's manual.

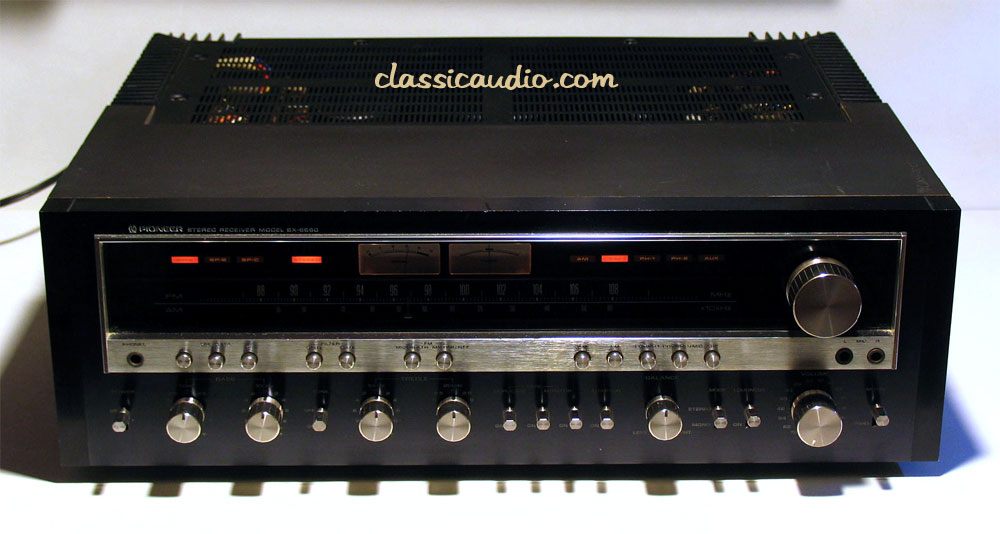

The SX-5590 is the European version of the SX-1250. Sections of the front panel are black instead of silver, the dial is black with white lettering and the meters are a silver color. Otherwise, they are identical models. The European versions were not exported to the U.S. They had to be brought back to the U.S. by the owner from Europe. They are much rarer in this country than the standard models.
- Toroidal Power Transformer
- Step Attenuator Volume Control

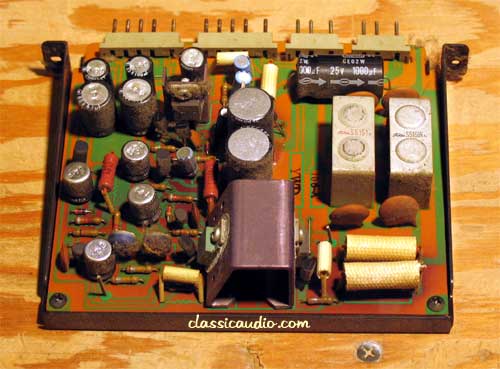

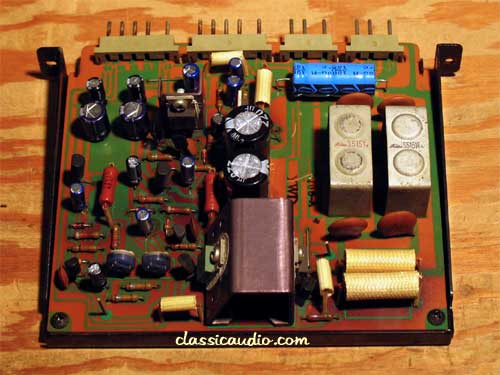

- Massive Dual Power Supply with Step-Start Circuit
- Fully Shielded FM Section and 5-Gang Tuning Capacitor
From silverpioneer.com:
The SX-1250 was introduced in 1976 as Pioneer's top-of-the-line receiver. It reflected Pioneers new styling of matching silver tuning dial with white background signal strength and stereo signal meters. It was Pioneer's most powerful and feature-laden receiver that year, capable of pumping out 160 watts per channel. It was beautifully finished in walnut veneers and solid walnut trim. It had a list price of $900.00 (thats $3704.00 in today's dollars) and tipped the scales at 65 pounds.

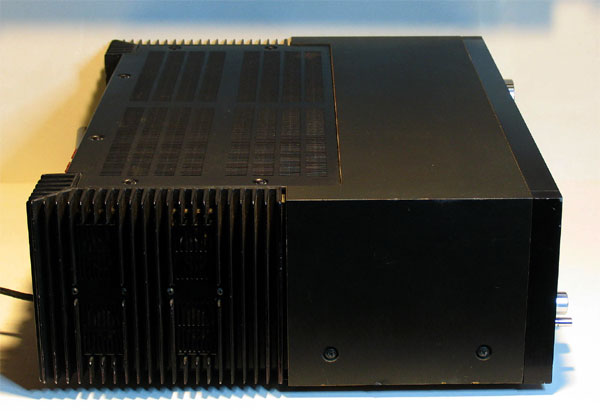

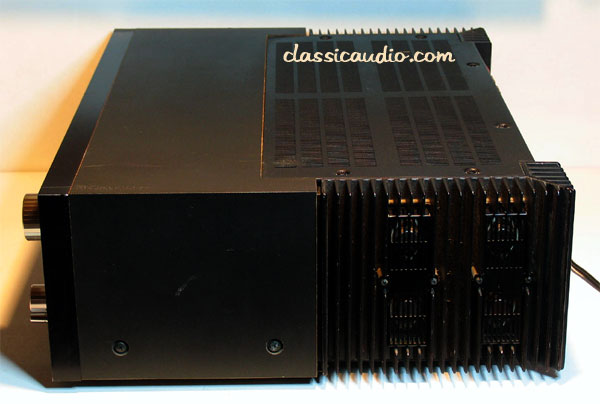

The SX-1250's beauty was more than skin-deep. As Pioneer's best receiver, the engineers lavished a major design engineering budget in designing it. With the covers off, you can see the careful and logical layout of the receiver's hefty toroidal transformer and four massive capacitors, flanked by the component circuit boards. Pioneer designed large wrap-around heatsinks to dissipate the SX-1250's full-tilt operating temperature.
The SX-1250 was the largest receiver Pioneer had ever built up to that time. The view with the cover off shows why: the engineers needed every square inch they could get to package the components. The receiver measured 22.0 inches wide, 18.75 inches deep, and 7.50 inches high.
The quality, power and good looks of this receiver not only made it a popular choice for buyers in 1976 and 1977 when it was offered, it is one of the most sought-after Pioneer receivers today.
 |
Controls:
Bass 50Hz: -2.5dB, -5dB, 0, +2.5dB, +5dB classicaudio.com
Bass 100Hz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Treble 10KHz: -2.5dB, -5dB, 0, +2.5dB, +5dBclassicaudio.com
Treble 20KHz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Balanceclassicaudio.com
VolumeSwitches:
Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Speakers C
Filter 30Hzclassicaudio.com
Filter 8KHz
FM Multipath
FM Muting Offclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2/Mic
Auxclassicaudio.com
Power
Tone: On, Offclassicaudio.com
Tape Duplicate
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dBIndicators:
Signal Strength Meter
Tuning Meterclassicaudio.com
SPEAKER A
SPEAKER B
SPEAKER Cclassicaudio.com
STEREO
AM
FMclassicaudio.com
PH-1
PH-2
AUXclassicaudio.comJacks:
Phones
Mic Lclassicaudio.com
Mic RRear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antenna
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Aux (L, R)
Tape 1 Rec (L, R)classicaudio.com
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)
Adaptor Out (L, R)classicaudio.com
Adapter In (L, R)
Pre-Out (L, R)classicaudio.com
Main-In (L, R)
FM Det Out (4 Channel)classicaudio.com
FM De-emphasis: 25uS, 50uS, 75uSShipping Weight 75 lbs. 28 x 28 x 16
 |
$1400.00
 |
ClassicAudio.com
Phone 916-488-6016 or
To send email click here.
 |
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
