For Sale To classicaudio.com Home

This item has been SOLD! For more ads, click HERE.

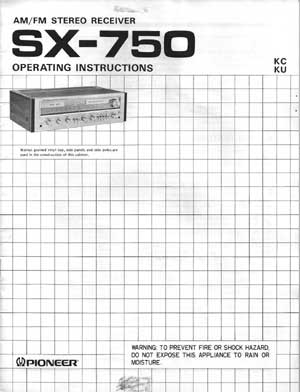

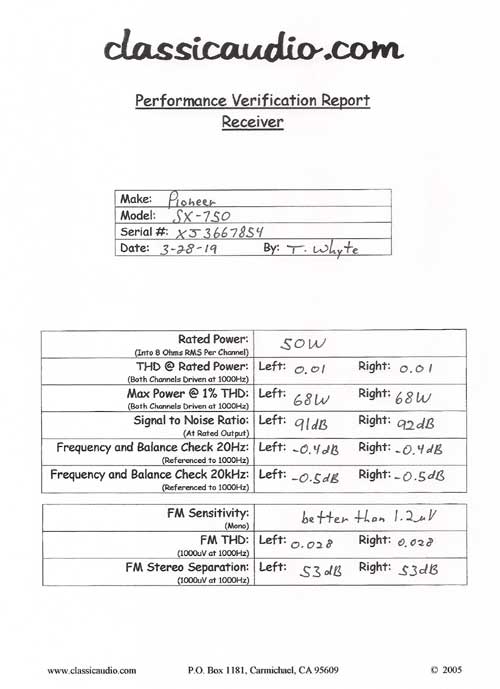

Pioneer model SX-750 AM/FM Stereo receiver in good condition. Rated at 50 watts RMS per channel into 8 ohms. It has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

(Tech's Note: This model has the power switch incorporated into the speaker selector switch. For this reason we strongly recommend using an external device, such as a power strip or wall switch, to control the on/off function thereby eliminating unnecessary wear on the original switch. This recommendation is valid for all makes and models with this design.)

For Pioneer serial number date codes click here.

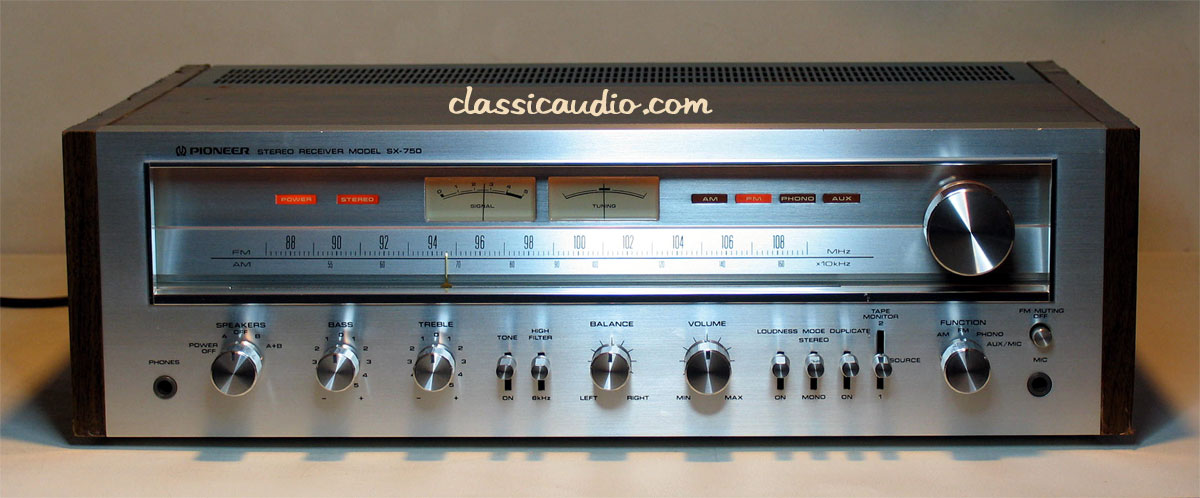

Controls:

Speakers: Power Off, A, Spkr Off, B, A+Bclassicaudio.com
Bass
Treble
classicaudio.com
Volume
Balance
Function:
AM, FM, Phono, Aux/Micclassicaudio.com

Switches:

Tone: On/Off
High Filter
Loudness
classicaudio.com
Mode:
Mono, Stereoclassicaudio.com
Duplicate
Tape Monitor 1/2
FM Muting Off

Jacks:

Micclassicaudio.com
Headphones

Indicators:

Tuning Meter
Signal Meter
POWER
STEREO
classicaudio.com
AM
FM
PHONO
AUX

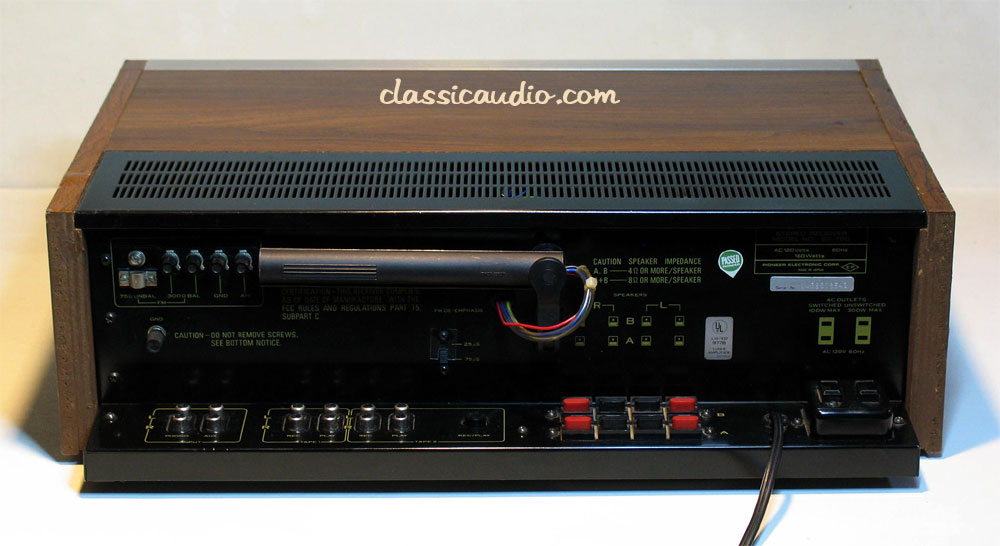

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched
classicaudio.com
Phono Input (L, R)
Aux Input (L, R)
classicaudio.com
Tape Monitor 1 Out (L, R,)
Tape Monitor 1 In (L, R,)
Tape Monitor 2 Out (L, R,)
Tape Monitor 2 In (L, R,)
Speaker System A (L, R)
classicaudio.com
Speaker System B (L, R)
FM De-Emphasis:
75uS/25uS
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com

Shipping Weight 40 lbs. 25 x 21 x 13



$449.95





ClassicAudio.com
Phone 916-488-6016 or
To send email click here.





Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We
PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!



SX-750 Power Supply Refurb:

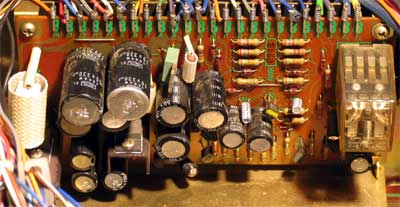

BEFORE

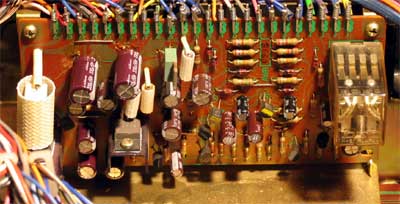

AFTER
