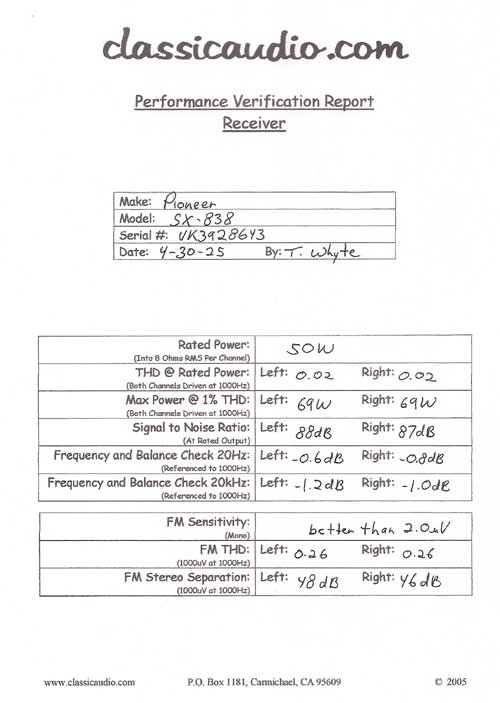

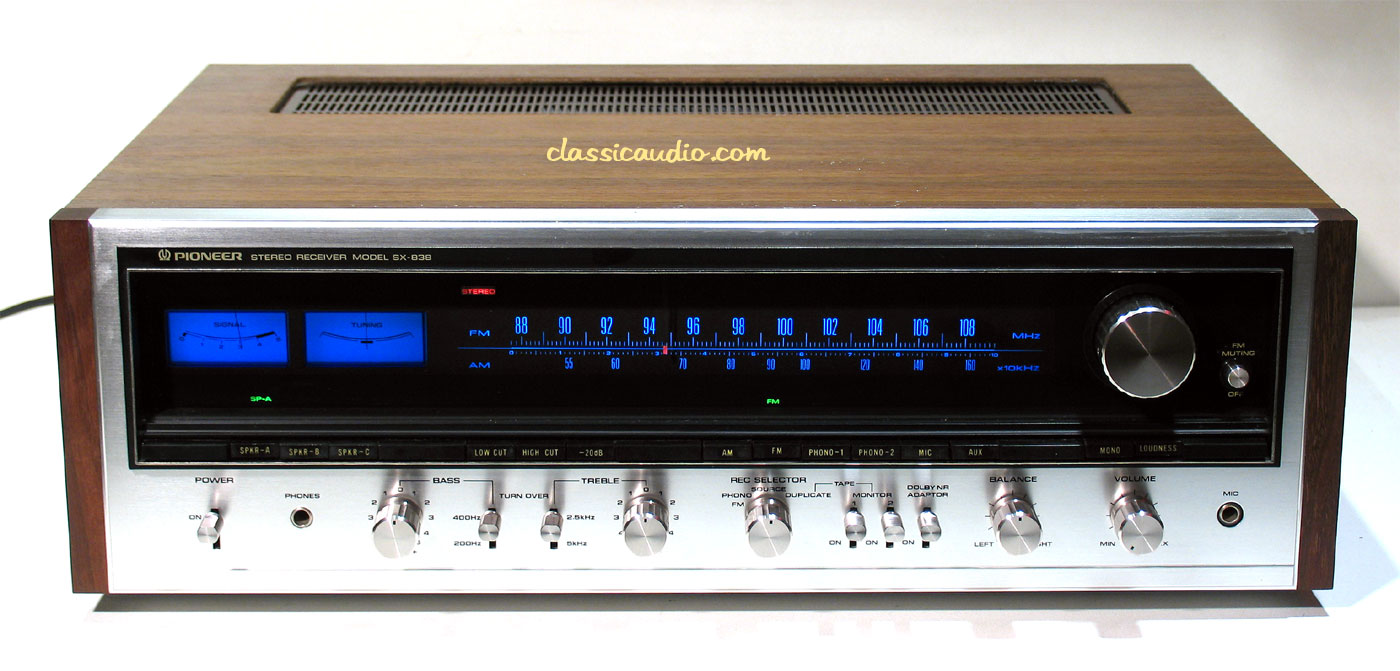

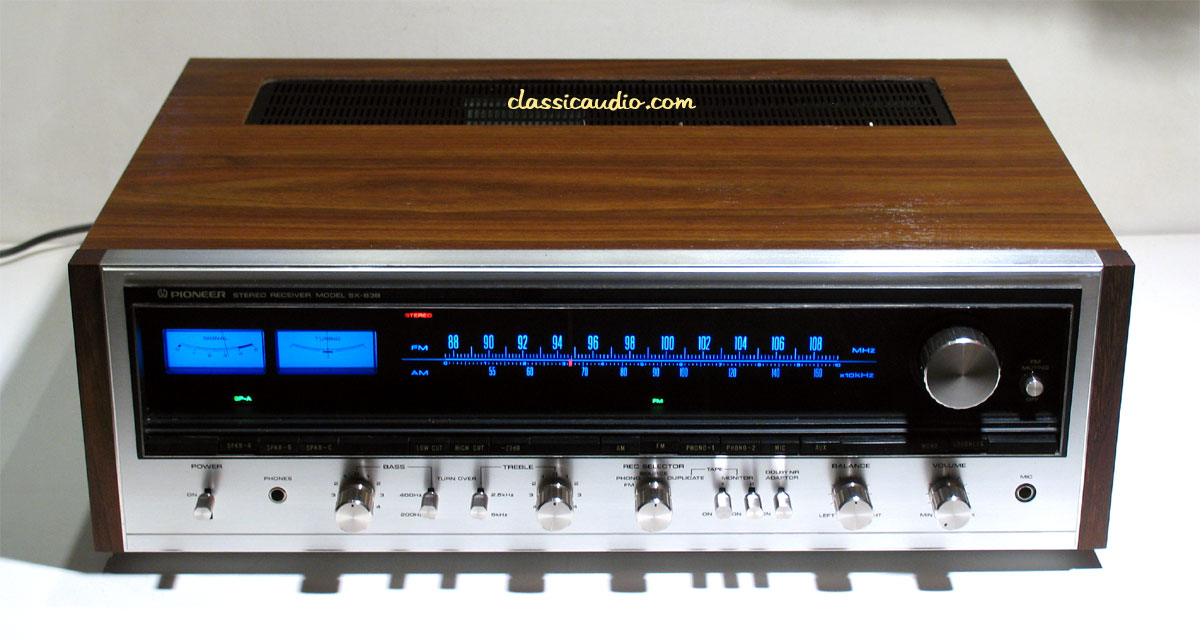

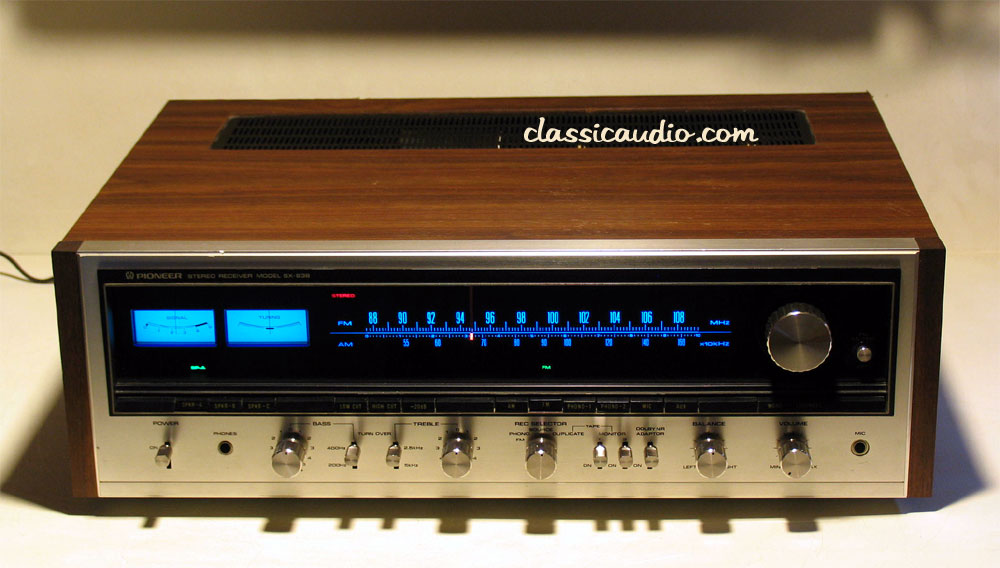

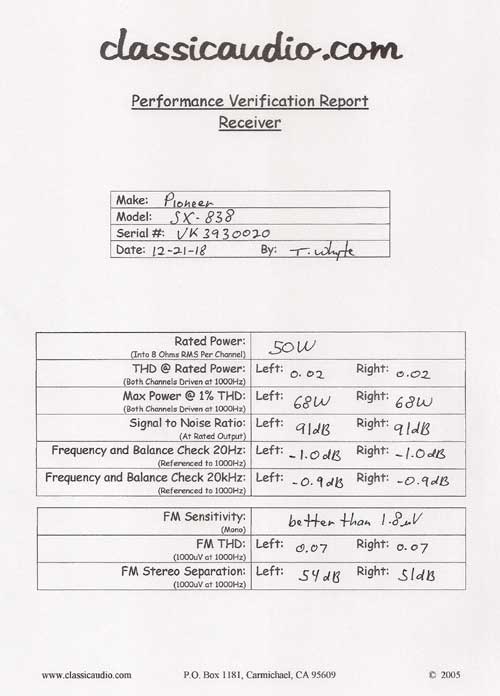

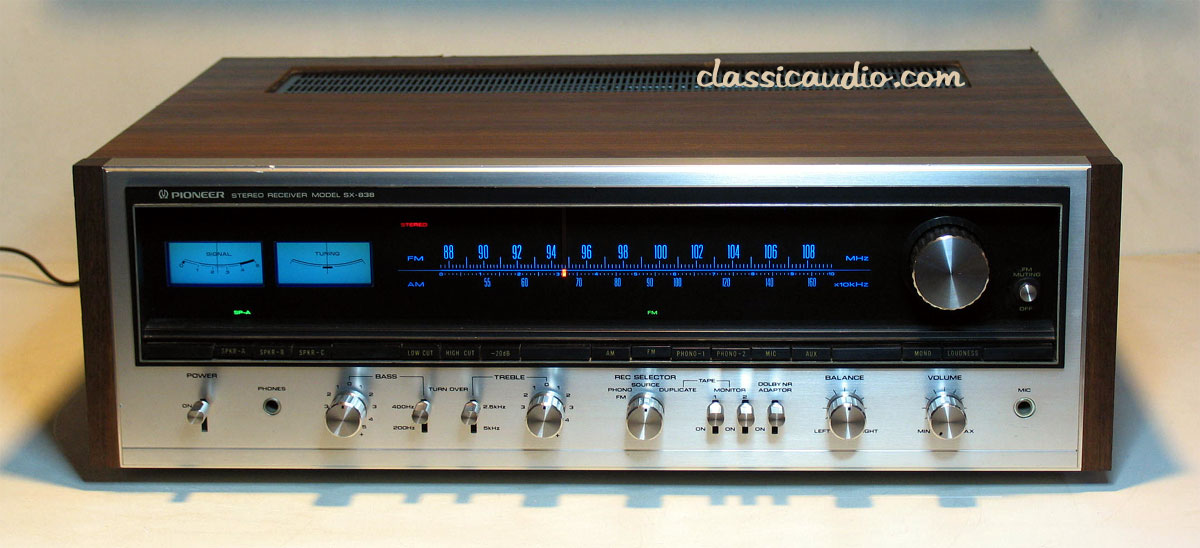

Pioneer model SX-838 AM/FM receiver in excellent condition. Rated at 50 watts RMS per channel into 8 ohms. It has been serviced and fully tested. Includes our original Performance Verification Report.
From Pioneer:
The Pioneer SX-838 is a 50W RMS stereo receiver featuring PLL FM MPX, precision equalizer, switched-turnover tone control and direct-coupled OCL power amp. Depend on Pioneer to provide the latest electronic advances and the SX-838 stereo receiver is a perfect example. Its FM tuner offers high sensitivity and excellent rejection characteristics thanks to its front end equipped with a frequency-linear 4-gang variable capacitor and two MOS FETs. The FM IF section has a 6-stage limiter and phase-linear ceramic filters. For the FM MPX demodulator, Pioneer uses a new PLL (Phase Lock Loop) circuit with an IC.
Controls:
Bass
Treble classicaudio.com
Record Selector: FM, Phono, Source, Duplicate
Balanceclassicaudio.com
Volume
Switches (Toggle):
Powerclassicaudio.com
Bass Turnover: 400Hz/200Hz
Treble Turnover: 2.5kHz/5kHz
Tape Monitor 1classicaudio.com
Tape Monitor 2
Adaptor Dolby NRclassicaudio.comSwitches (Push):
Spkr-Aclassicaudio.com
Spkr-B
Spkr-Cclassicaudio.com
Low Cut
High Cut
-20dBclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2classicaudio.com
Mic
Auxclassicaudio.com
Mono
Loudnessclassicaudio.com
FM Muting OffJacks:
Micclassicaudio.com
HeadphonesIndicators:
Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
SP-Aclassicaudio.com
SP-B
SP-C
AMclassicaudio.com
FM
PH-1classicaudio.com
PH-2
MIC
AUXclassicaudio.com

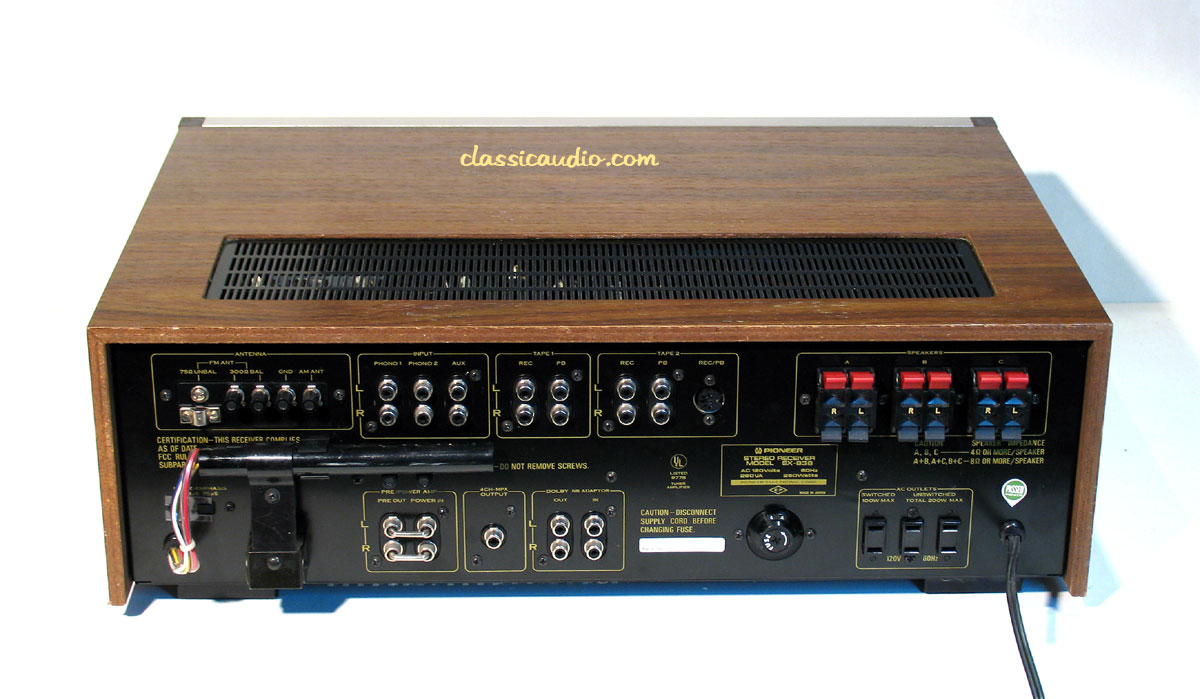

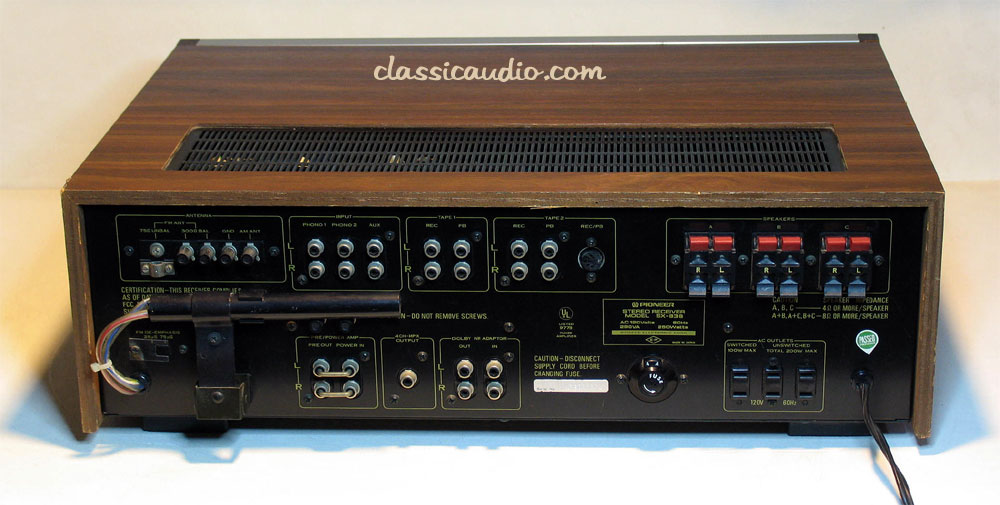

Rear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux Input (L, R)classicaudio.com
Tape Monitor 1 Rec (L, R)
Tape Monitor 1 PB (L, R)classicaudio.com
Tape Monitor 2 Rec (L, R, DIN)
Tape Monitor 2 PB (L, R, DIN)
Pre-Out (L, R)classicaudio.com
Power-In (L, R)
4-CH MPX Outputclassicaudio.com
Adapter Dolby NR Out (L, R)
Adapter Dolby NR In (L, R)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)classicaudio.com
Shipping Weight 45 lbs. 25 x 21 x 13
$899.95
ClassicAudio.com
Phone 916-488-6016 or
To send email click here.
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
