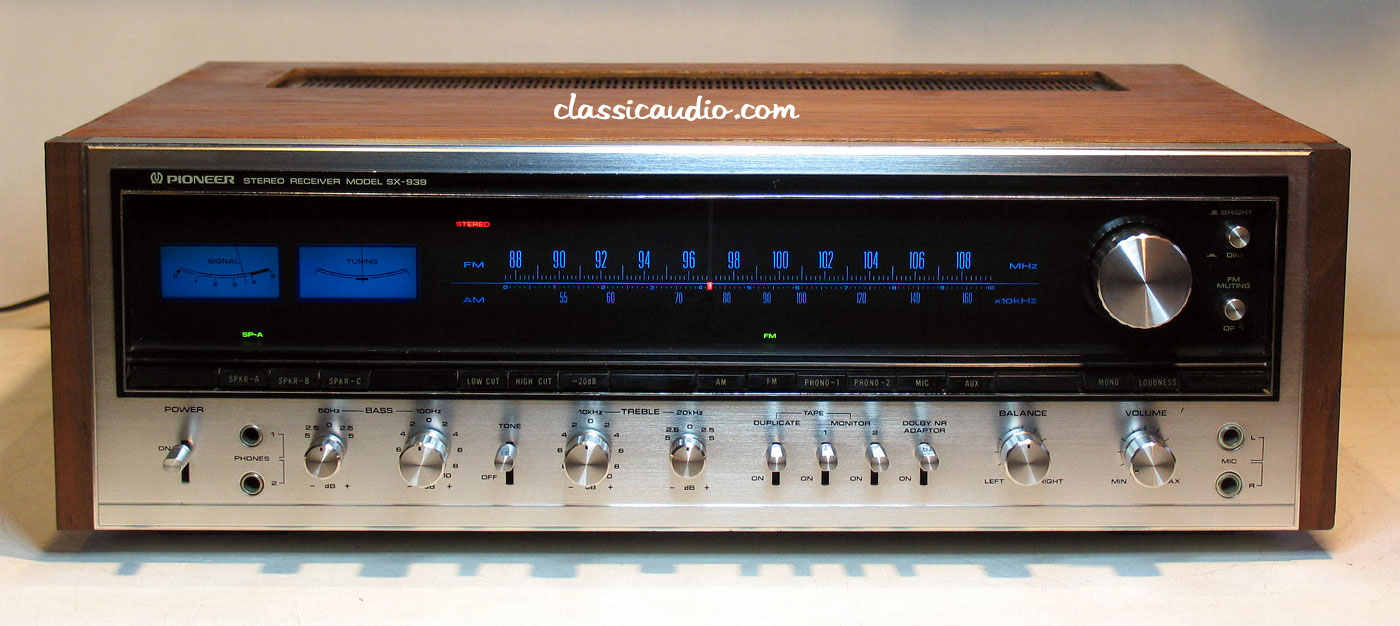

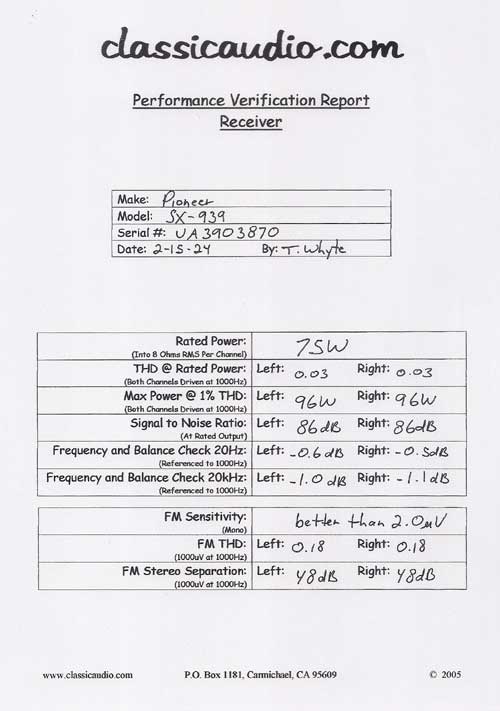

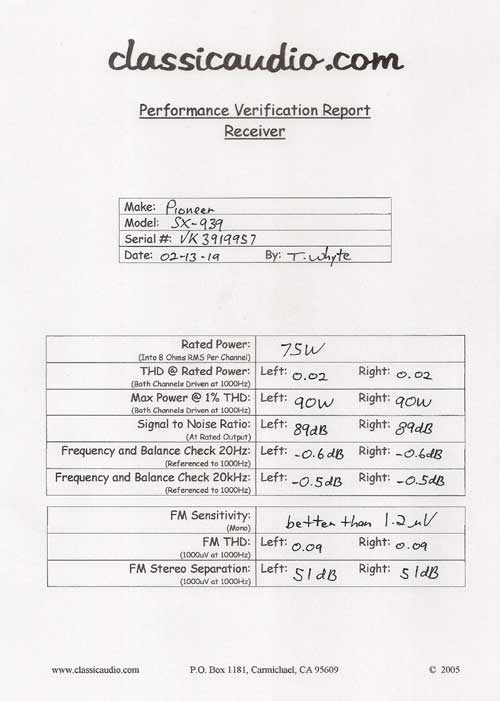

Pioneer model SX-939 AM/FM Receiver in excellent condition. Rated at 75 watts RMS per channel into 8 ohms and 100 watts RMS per channel into 4 ohms. It has been serviced and fully tested. Includes our original Performance Verification Report.

This SX-939 has received a deep restoration by the previous owner(s). Every electrolytic capacitor in the entire unit has been replaced with high quality pieces including the main filter capacitors.
Every lamp has been replaced with LEDs. We have inspected the work and determined that it is of high quality.



From Pioneer:

SX-939:

FM Front End With Dual-Gate FET's, Buffer Amp

Ceramic Filters And IC's In IF Stages For Sharp Selectivity

Quadrature Detection, Phase Lock Loop (PLL) Stereo Demodulator

Balanced Positive And Negative Power Supply With Heavy Duty Components

Phono Equalizer With Wide Dynamic Range And Extremely Close Tolerances

Direct-Coupled Power Amplifier Supplies High Output Power With Minimum Distortion

For Pioneer serial number date codes click here.

Controls:

Bass 50Hz +/-5dBclassicaudio.com
Bass 100Hz +/-10dB
Treble 10kHz +/-10dBclassicaudio.com
Treble 20kHz+/-5dB
Balanceclassicaudio.com
Volume

Switches (Toggle):

Powerclassicaudio.com
Tone Off
Tape Duplicateclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor Dolby NR

Switches (Push):

Spkr-Aclassicaudio.com
Spkr-B
Spkr-Cclassicaudio.com
Low Cut
High Cut
-20dBclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2classicaudio.com
Mic
Auxclassicaudio.com
Mono
Loudnessclassicaudio.com

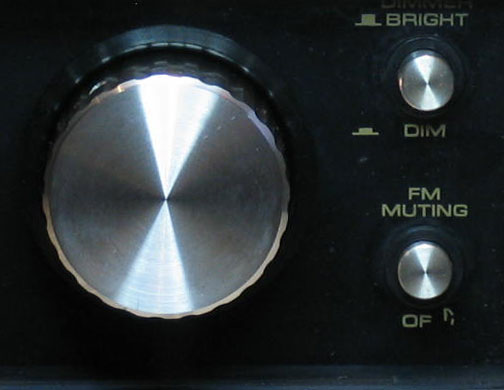

Dimmer: Bright/Dim
FM Muting Offclassicaudio.com

Jacks:

Mic-Lclassicaudio.com
Mic-R
Headphones 1classicaudio.com
Headphones 2

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
SP-Aclassicaudio.com
SP-B
SP-Cclassicaudio.com
AM
FMclassicaudio.com
PH-1
PH-2classicaudio.com
MIC
AUXclassicaudio.com

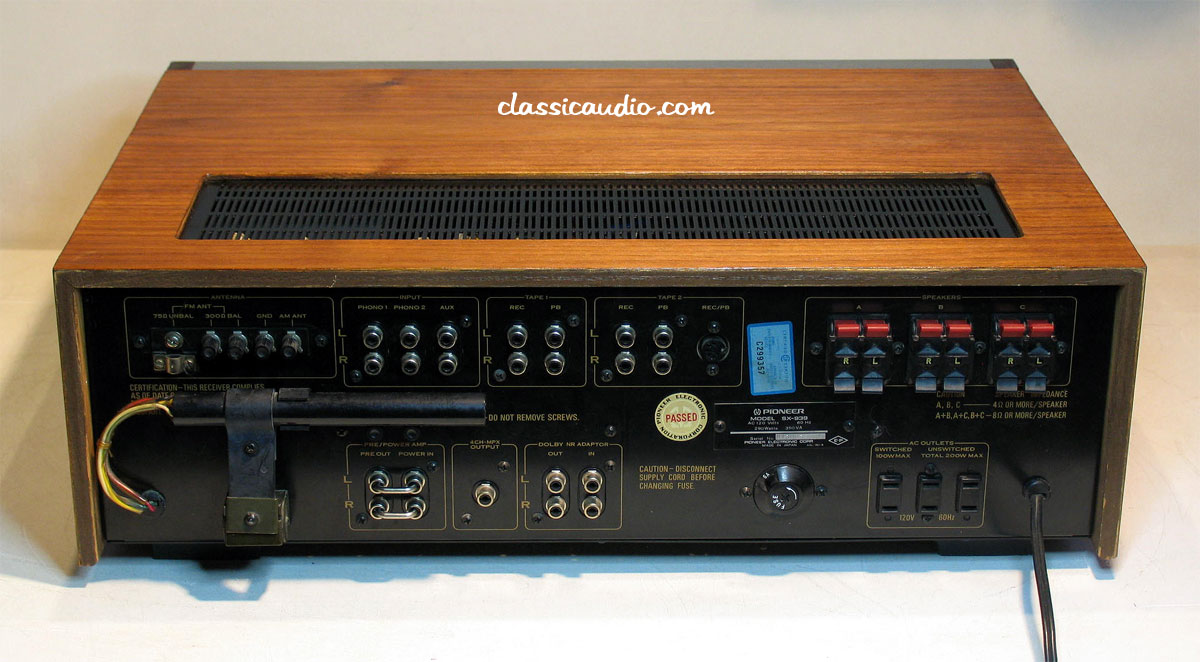

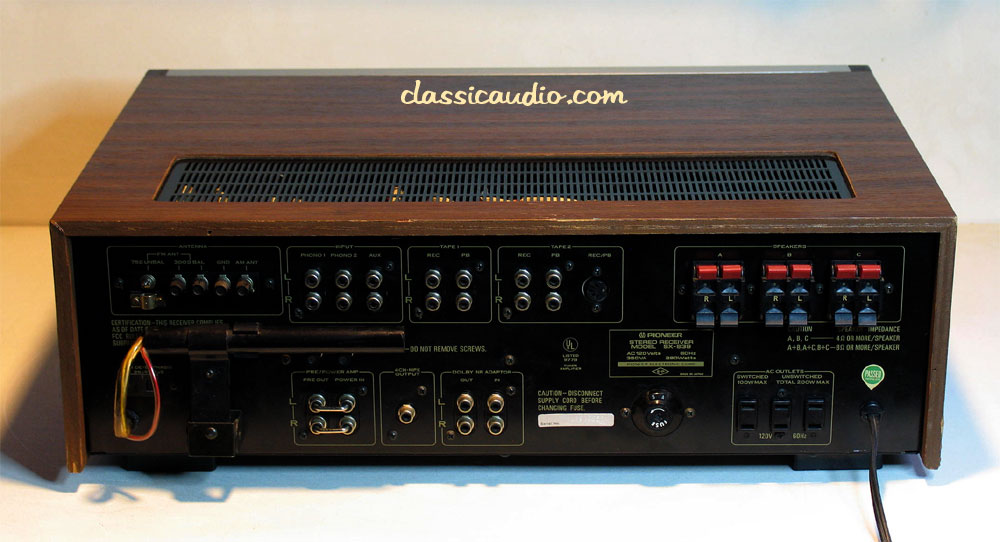

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Rec (L, R)classicaudio.com
Tape Monitor 1 PB (L, R)
Tape Monitor 2 Rec (L, R,)classicaudio.com
Tape Monitor 2 PB (L, R, DIN)
Pre-Out (L, R)classicaudio.com
Power-In (L, R)
4-CH MPX Outputclassicaudio.com
Adapter Dolby NR Out (L, R)
Adapter Dolby NR In (L, R)classicaudio.com
Speaker System A (L, R)
Speaker System B (L, R)classicaudio.com
Speaker System C (L, R)



Shipping Weight 50 lbs. 25 x 21 x 13

$1400.00



ClassicAudio.com
Phone 916-488-6016 or
To send email click here.



Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

---

Dial, Meter and Stereo lamps have been changed to LEDs.

---

Slight defect on front panel graphic.
