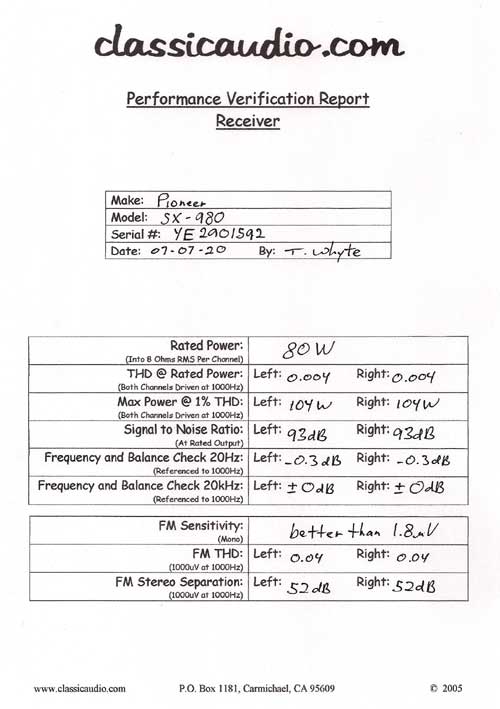

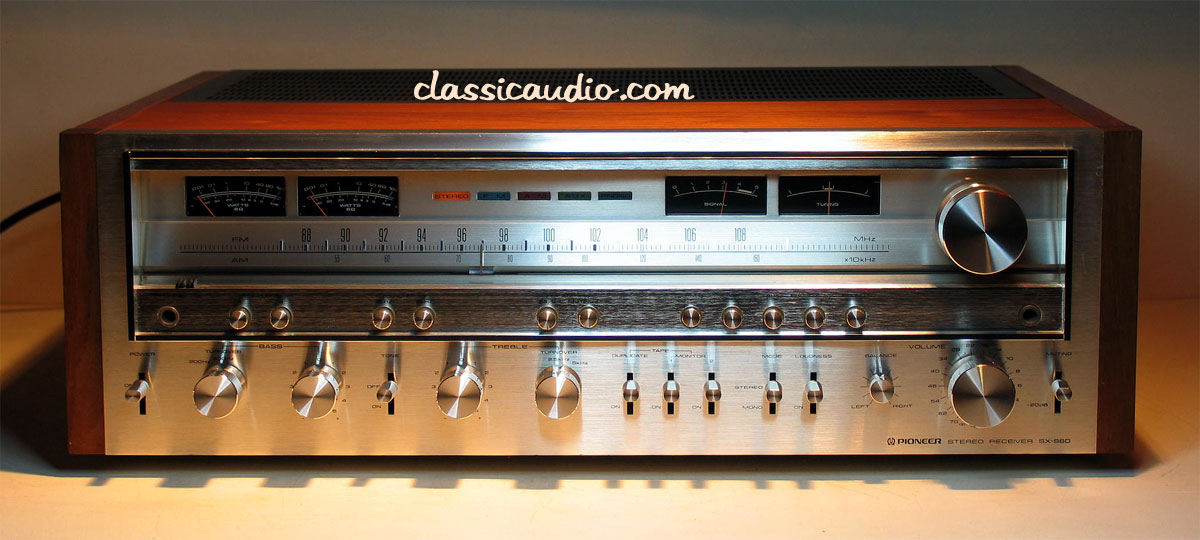

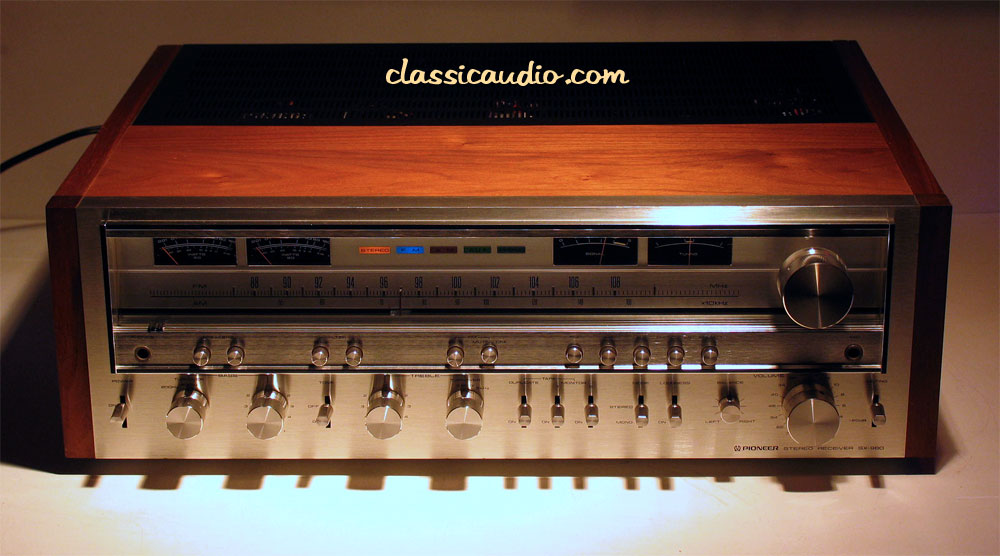

Pioneer model SX-980 AM/FM receiver in excellent condition. Rated at 80 watts RMS per channel into 8 ohms and 100 watts RMS per channel into 4 ohms. It has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

From Pioneer:

The Pioneer SX-980 is an AM/FM stereo receiver with constant current loaded 2-stage differential amplifier, and direct coupled 2-stage Darlington single push-pull DC configuration power amplifier.

Features include Pioneer turnover tone controls, 6dB-octave high and low filters and outputs for 2 pairs of speakers.



Controls:

Bass: -/+5 classicaudio.com
Bass Turnover:
200Hz/400Hz
Treble:
-/+5classicaudio.com
Treble Turnover:
2.5kHz/5kHz
Balance
classicaudio.com
Volume

Switches (Toggle):

Powerclassicaudio.com
Tone:
On, Offclassicaudio.com
Tape Duplicate
Tape Monitor 1
Tape Monitor 2
classicaudio.com
Mode:
Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting:
-20dB

Switches (Push):

Speakers A classicaudio.com
Speakers B
Filter 15Hz
classicaudio.com
Filter 8kHz
FM 25uS
classicaudio.com
FM Muting Off
FM
classicaudio.com
AM
Aux
Phono 2/Mic
classicaudio.com
Phono 1

Indicators:

Watts 8 Ohm Left Channel
Watts 8 Ohm Right Channel
Signal Strength Meter
Tuning Meter
classicaudio.com
STEREO
FM
AM
classicaudio.com
AUX
classicaudio.com
PHONO

Jacks:

Phones
Mic
classicaudio.com

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switched
classicaudio.com
Antenna Inputs:
FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antenna
Phono 1 (L, R)
classicaudio.com
Phono 2 (L, R)
Aux (L, R)
Tape 1 Rec (L, R)
classicaudio.com
Tape 1 Play (L, R)
Tape 2 Rec (L, R)
classicaudio.com
Tape 2 Play (L, R)
Pre-Out (L, R)
classicaudio.com
Main-In (L, R)

Shipping Weight 50 lbs.



$649.95





ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
To send email click here.





Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We
PRO PACK!

This item includes our 30 day limited warranty!

Read what our customers say about us!



SX-980 Power Supply Refurb:

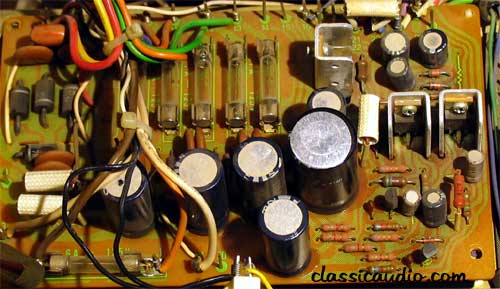

BEFORE

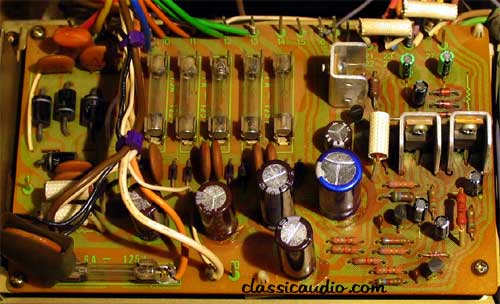

AFTER
