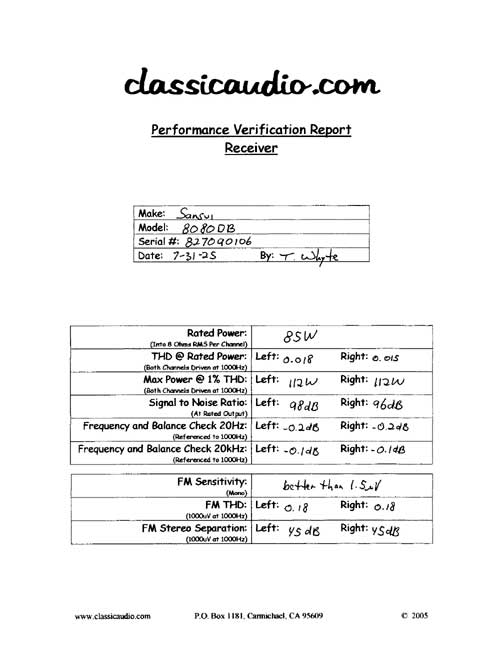

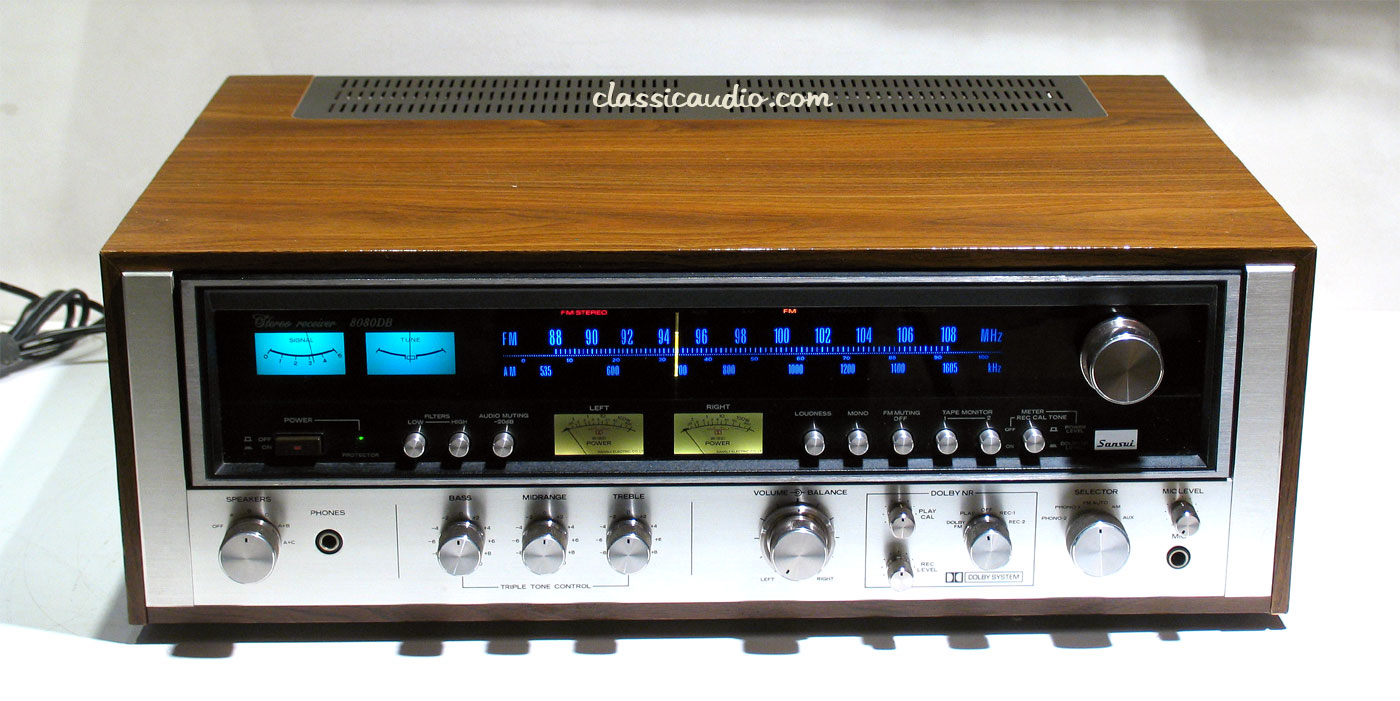

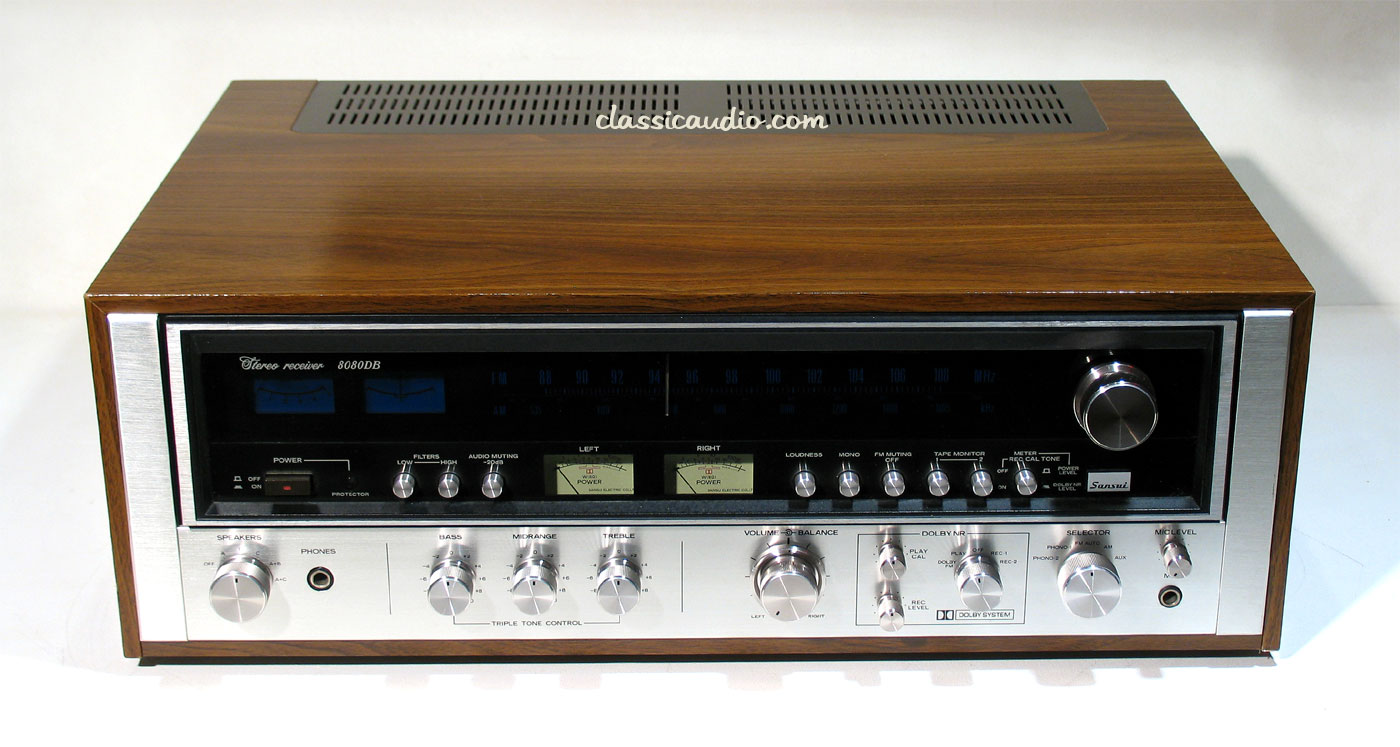

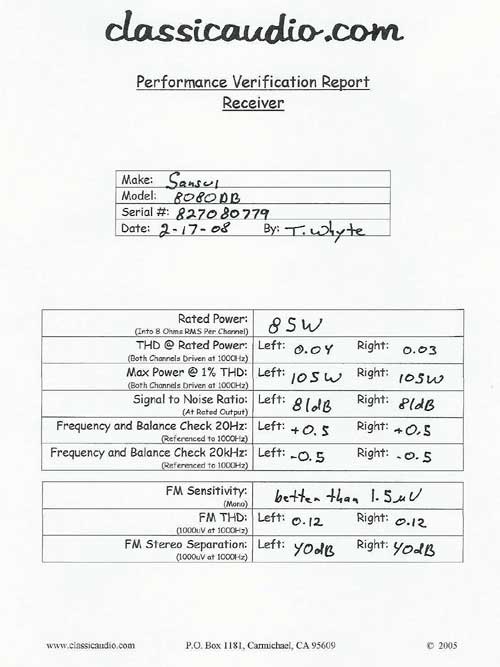

Sansui model 8080DB receiver in excellent condition. All lettering is perfect. Rated at 85 watts RMS per channel into 8 ohms. It has been serviced and aligned. Our original Performance Verification Report included.

From Sansui:

The Sansui 8080DB is an FM/AM stereo receiver with all the same sophisticated circuitry as the 9090DB, but with 85 watts per channel, minimum RMS, 1000Hz both channels driven and dazzling 0.2 % total harmonic distortion (at rated output).

Features include four meters : twin power meters ; signal strength ; tuning, MOS FET FM front-end for higher sensitivity, clear reception under any transmission conditions, improved stereo reception from FM broadcast and a full range of convenient controls and system connections.





Controls:

Bassclassicaudio.com
Midrange
Trebleclassicaudio.com
Volume
Balanceclassicaudio.com
Mic Level
Dolby Play Cal
Dolby Record Cal

Switches:

Powerclassicaudio.com
Low Filter
High Filterclassicaudio.com
Audio Muting: -20dB
FM Muting Offclassicaudio.com
Speakers: A, B, C, A+B, A+Cclassicaudio.com
Dolby Function: Dolby FM, Play, Off, Rec 1, Rec 2
Loudness: On/Offclassicaudio.com
Mode: Stereo/Mono
Tape Monitor 1com
Tape Monitor 2
Rec Cal Tone: On/Off
Meter: Power Level/Dolby Level
Selector: Phono 1, Phono 2, FM Auto, AM, Aux

Indicators:

Signal Strength
Tuning Meterclassicaudio.com
Left Channel Power Meter
Right Channel Power Meterclassicaudio.com
FM STEREO
PHONOclassicaudio.com
FM
AMclassicaudio.com
AUX
POWER/PROTECT

Jacks:

Phones 1classicaudio.com
Micclassicaudio.com

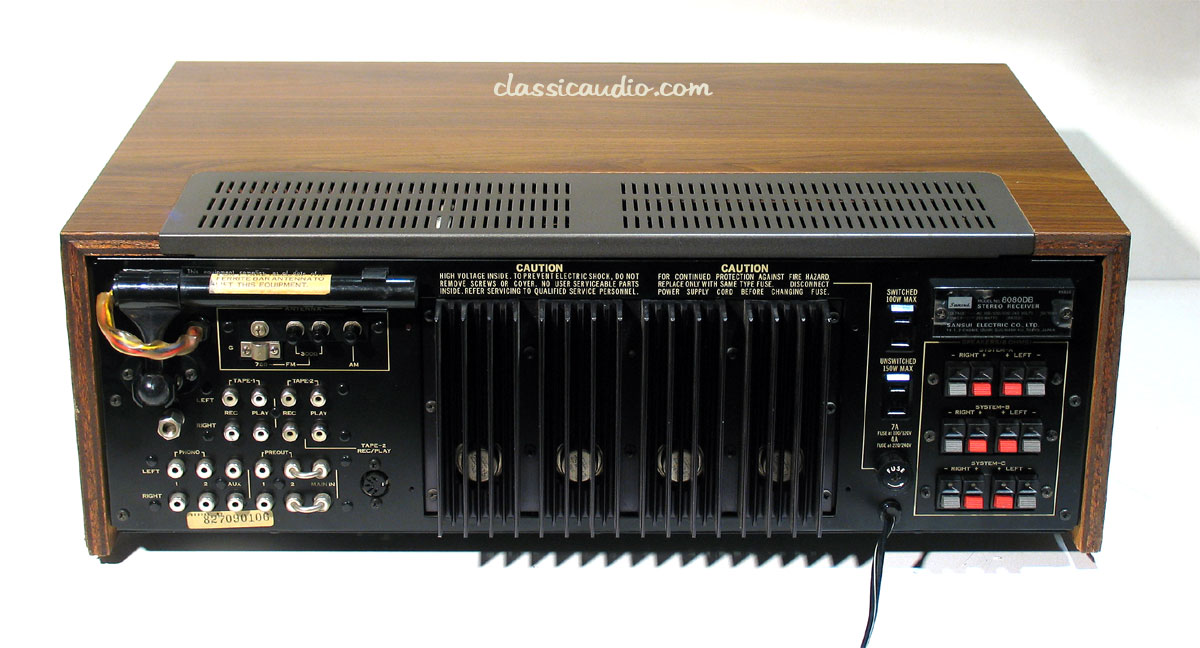

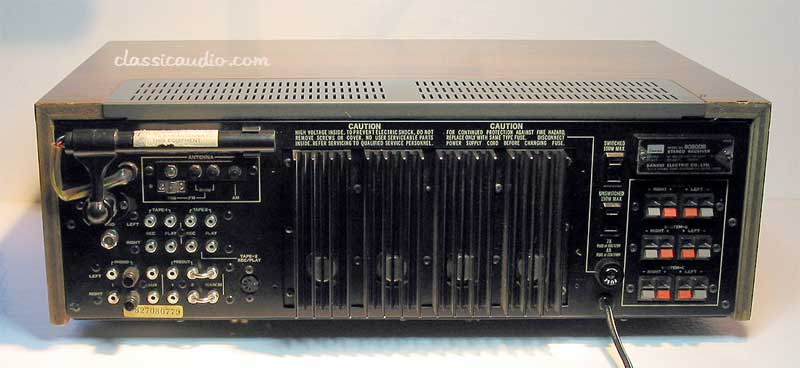

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com
Pre-Out 1 (L, R)
Pre-Out 2 (L, R)
Main-In (L, R)classicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux (L, R)classicaudio.com
Tape 1 Rec (L, R)
Tape 1 Play (L, R)classicaudio.com
Tape 2 Rec (L, R)
Tape 2 Play (L, R)classicaudio.com
Tape 2 Rec/Play (DIN)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)classicaudio.com

Shipping Weight: 50 Pounds



$1800.00





ClassicAudio.com
Phone 916-488-6016 or
Send email click here.





Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 1 year limited warranty!

Read what our customers say about us!



Sansui 8080DB Driver Board Refurb:

All electrolytic capacitors replaced.
All fusistors replaced with low tolerance precision carbon film resistors.

 BEFORE

 AFTER



Sansui 8080DB Power Supply Refurb:

All electrolytic capacitors replaced.
All fusistors replaced with low tolerance precision carbon film resistors.

Sansui 8080DB Protect Circuit Board Refurb:

All electrolytic capacitors replaced.
Protect circuit operation verified.
Speaker relay cleaned.

Sansui 8080DB Tuner Power Supply Refurb:

All electrolytic capacitors replaced.
Heat sensitive capacitors relocated.

Sansui 8080DB Tuner Circuit Board Refurb:

All electrolytic and tantalum capacitors replaced.
Precision alignment of the FM front end and IF sections.

Sansui 8080DB Phono Section Refurb:

All electrolytic and tantalum capacitors replaced.
Confirmation of adherence to the RIAA equalization standard.

Sansui 8080DB Tone Control Section Refurb:

All electrolytic capacitors replaced.
Corrosive glue residue removed and any compromised components replaced.

The Main Power Supply Capacitors have been Upgraded to new 12,000uF 80V.

Dial, Meter and Dial Pointer lamps are now LEDs.
