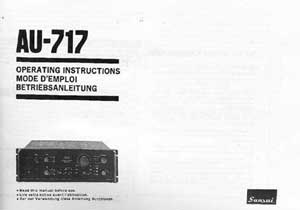

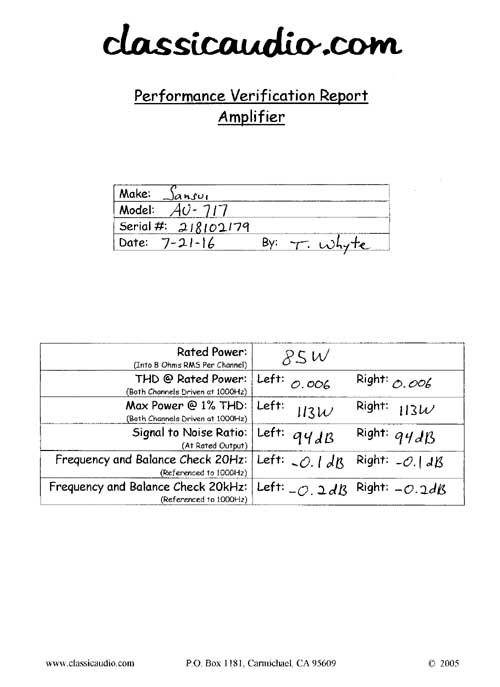

Sansui model AU-717 integrated amplifier in excellent condition. Rated at 85 watts RMS per channel into 8 ohms. True dual mono-block design delivers very low distortion and massive headroom. This unit has been serviced and fully tested. Includes our original Performance Verification Report and a copy of the owner's manual.
From Sansui:
The AU-717 amplifier incorporates an advanced design feature which has extremely low inherent transient intermodulation distortion enabling negative feedback (necessary in traditional amplifier design but undesirable) to be reduced to the absolute minimum.
Power amplifier design too, shows a departure from tradition resulting in the elimination of DC drift.

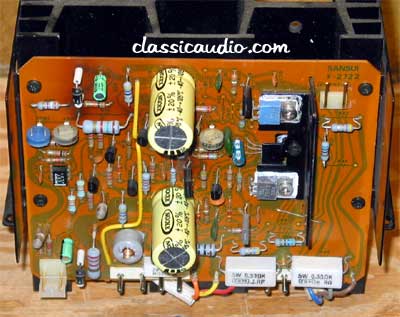

Differential push/pull amplifier stage eliminates open-loop distortion. The driver stage is 3-stage darlington connected.
 |
Controls:
Speakers: Off, A, B, A+B
Bass: +/- 10classicaudio.com
Treble: +/- 10
Balanceclassicaudio.com
Volume: Log dB Scale
Switches:
Powerclassicaudio.com
Treble: 6kHz/3kHz
Bass: 400Hz/200Hz
Tone: Defeat/On
Subsonic Filter: On/Off
High Filter: On/Offclassicaudio.com
Loudness: On/Off
Muting: Off/-20dB
Tape Monitor: Source, Tape 1, Tape 2classicaudio.com
Tape Copy: Tuner, Off, Source, 1>2, 2>1
Input Selector: Aux, Tuner, Phono 1, Phono 2
Jacks:
Headphonesclassicaudio.com
Indicators:
Power/Protect LEDclassicaudio.com
AUX
TUNERclassicaudio.com
PHONO 1
PHONO 2classicaudio.com
Rear Panel:
Pre-Out/Main-In (L, R)
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)classicaudio.com
Tuner (L, R)
Aux (L, R)classicaudio.com
Tape 1 Record (L, R)
Tape 1 Play (L, R)classicaudio.com
Tape 2 Record (L, R)
Tape 2 Play (L, R)classicaudio
Pre-Power Amp: Connected, Separated - Direct Coupled, Separated - Capacitor Coupled.com
AC Outlet Unswitched (2)
AC Outlet Switched (1)classicaudio.com
Speaker System A (L, R)
Speaker System B (L, R)Shipping Weight 45 lbs.
 |
$899.95
 |
ClassicAudio.com
Phone 916-488-6016 or
Send email click here.
 |
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
