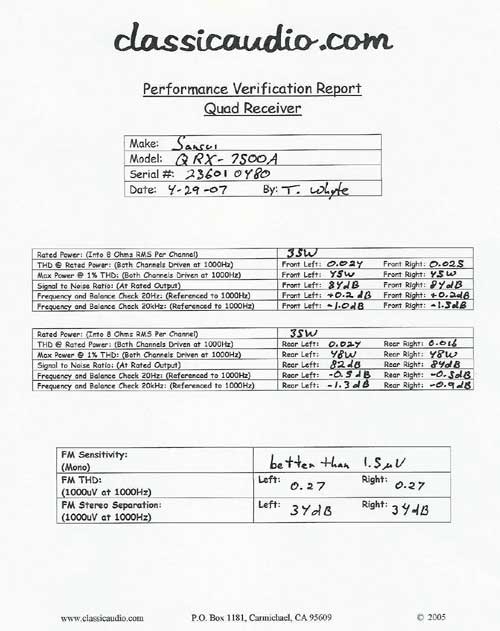

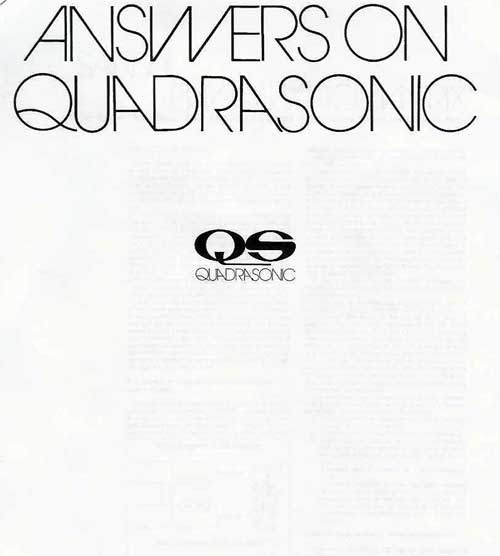

Sansui model QRX-7500A 4-channel receiver in excellent condition. Aquired from the original owner. Top of the line for this series, rated at 35 watts RMS per channel times four. Features a built in CD-4 album decoder, SQ decoder (phase matrix), QS decoder (regular matrix), two phono inputs, and outputs for two sets of four speakers (that's EIGHT speakers total!). It has been serviced. Includes our original Performance Verification Report , a copy of a magazine ad about the QRX series and a copy of a white paper explaining the Sansui QS Quadrasonic system.



Controls:

Bass Front/Back: +/- 10dB classicaudio.com
Treble Front/Back: +/- 10dB
Speakers: A, B, A+B
Balance Frontclassicaudio.com
Balance Main
Balance Rear
Volume
Level Set
Function: 2-CH, QS Synthesizer, QS Regular Matrix, Phase Matrix, CD-4/Discrete
Selector: Phono 2, Phono 1, FM Auto, AM, Auxclassicaudio.com
CD-4 Carrier Level
CD-4 Separation Left
CD-4 Separation Rightclassicaudio.com

Switches:

Powerclassicaudio.com
Front Filter Low
Front Filter High
Rear Filter Low
Rear Filter High
Loudness
Tape Monitor 2-CH
Tape Monitor 4-CH-1
Tape Monitor 4-CH-2
FM Muting Off

Jacks:

Headphones Frontclassicaudio.com
Headphones Rear

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
Left Front Level Meter
Right Front Level Meter
Left Rear Level Meterclassicaudio.com
Right Rear Level Meter
FM STEREO
PHONO 2
PHONO 1
FMclassicaudio.com
AM
AUX
CD-4classicaudio.comclassicaudio.com

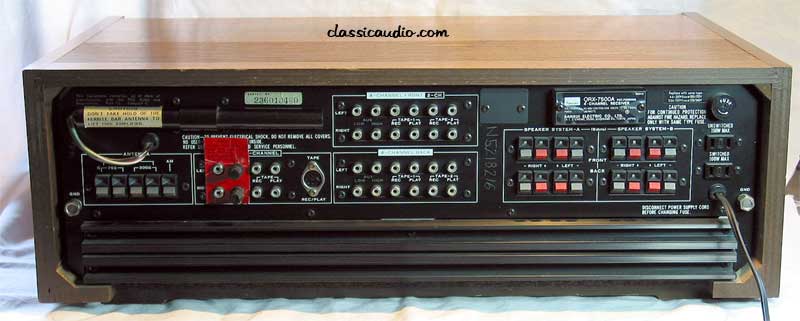

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)classicaudio.com
Aux Low (L, R, F, R)
Aux High (L, R, F, R)classicaudio.com
2-CH Tape Monitor Out (L, R, DIN)classicaudio.com
2-CH Tape Monitor In (L, R, DIN)
4-CH Tape Monitor 1 Out (L, R, F, R)classicaudio.com
4-CH Tape Monitor 1 In (L, R, F, R)classicaudio.com
4-CH Tape Monitor 2 Out (L, R, F, R)classicaudio.com
4-CH Tape Monitor 2 In (L, R, F, R)
Speakers A Front (L, R)classicaudio.com
Speakers A Rear (L, R)
Speakers B Front (L, R)
Speakers B Rear (L, R)classicaudio.com
FM Antenna 75 Ohm
FM Antenna 300 Ohm
AM Antennaclassicaudio.com


Shipping Weight: 55 Pounds

$399.95



ClassicAudio.com
Toll Free: 1-888-892-8106 enter "1027"
email classicaudio.com



Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. and Canada only. We PRO PACK!
This item includes an unconditional 30 day money back guarantee!
See what our customers say about us!
