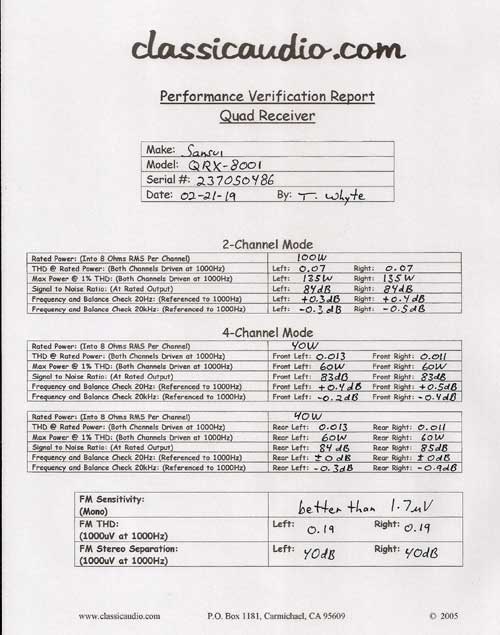

Sansui model QRX-8001 4-channel receiver in very good condition. Rated at 40 watts RMS per channel times four or 80 watts RMS per channel times two. Features a built in CD-4 album decoder, SQ decoder (phase matrix), QS decoder (regular matrix), and two four channel synthesized modes. It has been serviced and aligned. Includes our original Performance Verification Report. The AM antenna bracket was broken and has been removed. Please see pictures below.

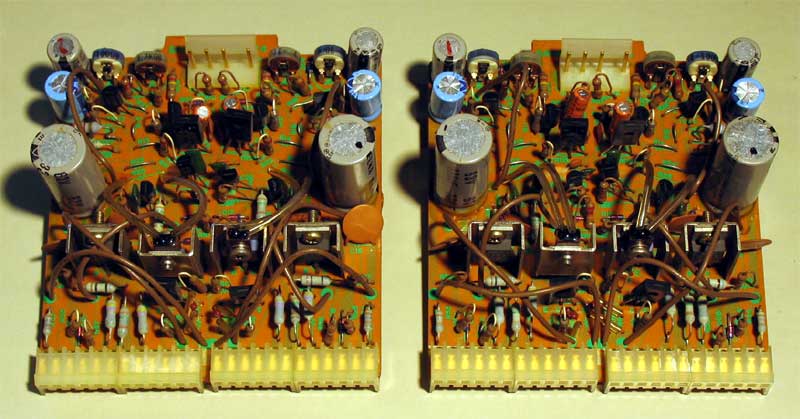

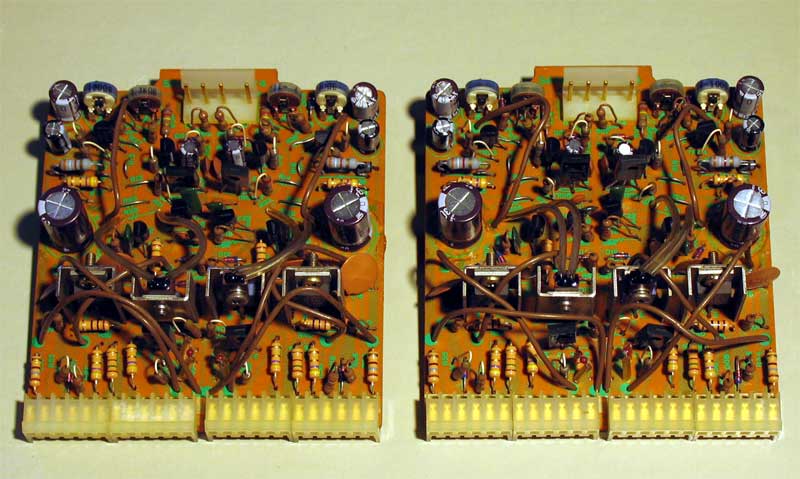

(Tech's Note: this model has an issue with feed-through connections. On a double sided circuit board, the connection between the two sides was made with a hole filled with solder. Not the best idea Sansui ever had. All of the feed-throughs in this unit have been re-soldered and "pins" installed to ensure a good, permanent connection.)



Controls:

Bass Front classicaudio.com
Treble Front
Bass Rear classicaudio.com
Treble Rear
Speakers/Mode: A 2-CH Power X2, A 2-CH, A 4-CH, B 4-CH, A+B 4-CH
Balance Left/Right/Front/Backclassicaudio.com
Balance Front/Back
Volume
Tape Monitor:
Selector: Phono, FM Auto, Dolby FM Adapter, AMclassicaudio.com
CD-4 Separation Left
CD-4 Separation Rightclassicaudio.com
Mic Level/Balance Front/Rear

Switches:

Powerclassicaudio.com
AudioMuting: -20dB
Filter Low
Filter High
Loudness
Dolby NR Adapter
Aux Input
QS Synthesizer Hall
QS Synthesizer Surround
QS
SQ
CD-4/4-CH Direct
FM Muting Off
FM Mono

Jacks:

Headphones Frontclassicaudio.com
Headphones Rear

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
Left Front Power Meter
Right Front Power Meter
Left Rear Power Meterclassicaudio.com
Right Rear Power Meter
FM STEREO
QS Synthesizer Hall
QS Synthesizer Surround
QSclassicaudio.com
SQ
CD-4/4-CH Direct
CD-4 Radarclassicaudio.comclassicaudio.com

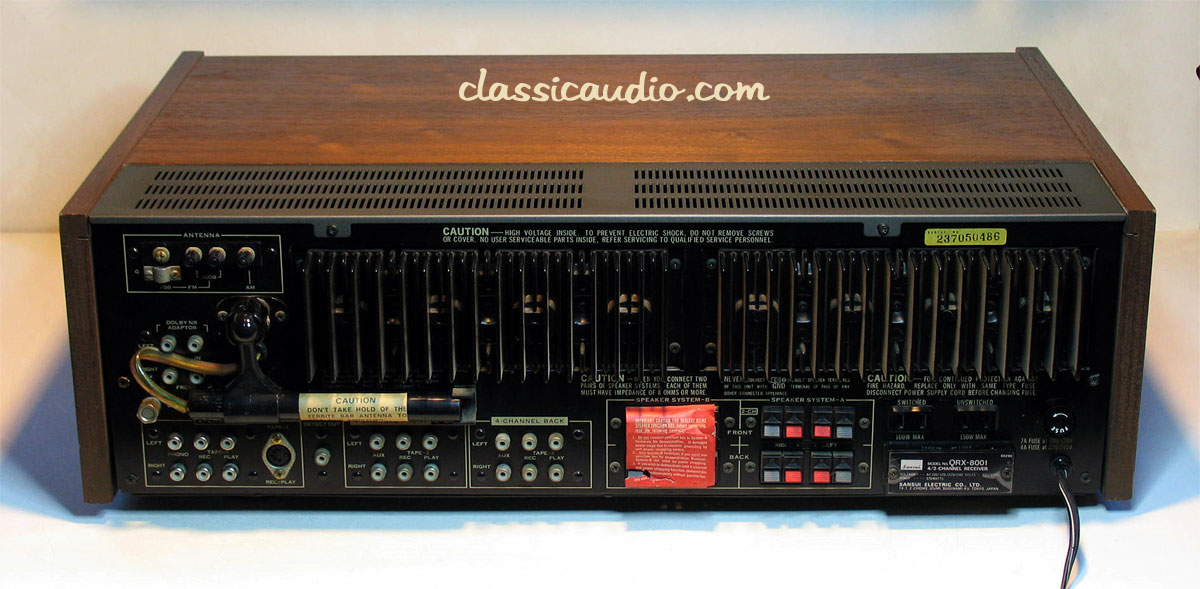

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono (L, R)classicaudio.com
Aux Low (L, R, F, R)

2-CH Tape Monitor Out (L, R, DIN)classicaudio.com
2-CH Tape Monitor In (L, R, DIN)
4-CH Aux (L, R, F, R)classicaudio.com
4-CH Tape Monitor 1 Out (L, R, F, R)classicaudio.com
4-CH Tape Monitor 1 In (L, R, F, R)classicaudio.com
4-CH Tape Monitor 2 Out (L, R, F, R)classicaudio.com
4-CH Tape Monitor 2 In (L, R, F, R)
Dolby NR Adapter In (L, R)
Dolby NR Adapter Out (L, R)
Detector Out
Speakers A Front (L, R)classicaudio.com
Speakers A Rear (L, R)
Speakers B Front (L, R)
Speakers B Rear (L, R)classicaudio.com
FM Antenna 75 Ohm
FM Antenna 300 Ohm
AM Antennaclassicaudio.com


Shipping Weight: 57 Pounds 30 x 24 x 12

$399.95



ClassicAudio.com
Toll Free: 1-888-892-8106 enter "1027"
email classicaudio.com



Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. and Canada only. We PRO PACK!
This item includes an unconditional 30 day money back guarantee!
See what our customers say about us!
