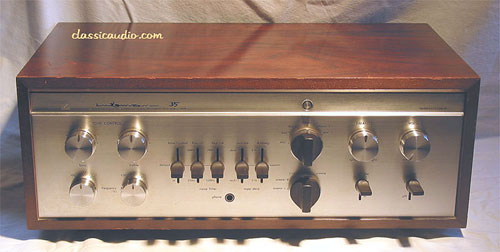

Switches:
Source: Aux1, Aux 2, Aux 3, Phono 1, Phono 2, Micclassicaudio.com
Monitor: Tape 1, Source, Tape 2
Dubbing: 1>2, Source, 2>1classicaudio.com
Mode: Reverse, Stereo, Mono
Tone Control Defeat
Mode: Mono L, Mono R, L+R, Stereo, Reverse
Powerclassicaudio.com
Filter: Subsonic, Defeat, Low Cut
Bass Frequency: 150, 300, 600
Treble Frequency: 1.5k, 3.0k, 6.0k
Low Cut: 60Hz, 25Hz
High Cut: 7k, 12k
Attenuate: -20, Normalclassicaudio.comControls:
Bass
Trebleclassicaudio.com
Balance
Volumeclassicaudio.comJacks:
Headphonesclassicaudio.com
Indicators:
Power classicaudio.com

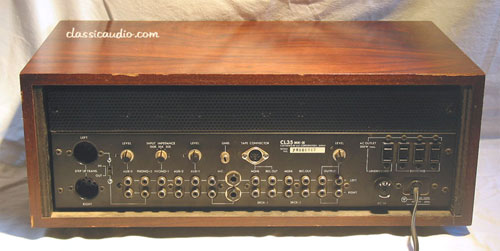

Rear Panel:
Output 1 (L, R)classicaudio.com
Output 2 (L, R)classicaudio.com
Tape 2 Monitor (L, R)
Tape 2 Rec Out (L, R)classicaudio.com
Tape 1 Monitor (L, R)
Tape 1 Rec Out (L, R)
Aux 1 (L, R)classicaudio.com
Aux 2 (L, R)
Aux 3 (L, R)
Mic (L, R)
Aux 3 Level
Phono 1 Input Impedance
Aux 1 Level
Output 2 Level
Phono 2 (L, R)classicaudio.com
Phono 1 (L, R)
Switched AC Outlet (3)classicaudio.com
Unswitched AC Outlet (1)
