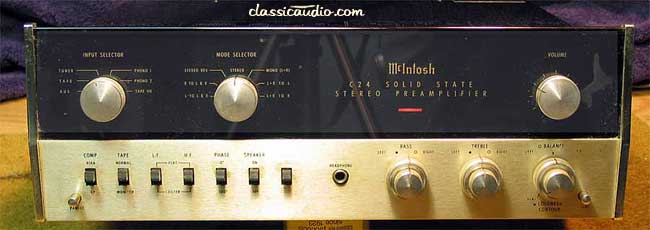

Controls:
Bass L
Bass R
Treble Llassicaudio.com
Treble R
Loudness
Balanceclassicaudio.com
Volume
Switches:
Function: Aux, Tape, Tuner, Phono 1, Phono 2, Tape HD
Mode: R to L+R, L to L+R, Stereo Reverse, Stereo, Mono, L+R to L, L+R to R
Comp: RIAA, LP
Tape Monitorclassicaud
Low Filtero.com
High Filter
Phase: 0, 180
Power
Jacks:
Headphones
Indicators:
Power

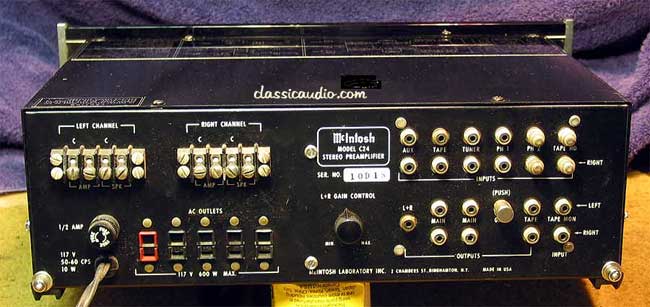

Rear Panel:
AC Outlet Unswitched
AC Outlet Switched (4)classicaudio.com
Phono Input 1 (L, R)
Phono Input 2 (L, R)
Aux Input (L, R)
Tuner (L, R)
Tape Monitor Out (L, R)classicaudio.com
Tape Monitor In (L, R)
Tape Head (L, R)
Main Out 1 (L, R,)
Main Out 2 (L, R,)
Left + Right Out
Left + Right Level
Speaker Left Inclassicaudio.com
Speaker Left Out
Speaker Right Inclassicaudio.com
Speaker Right Out
