McIntosh C-28

---

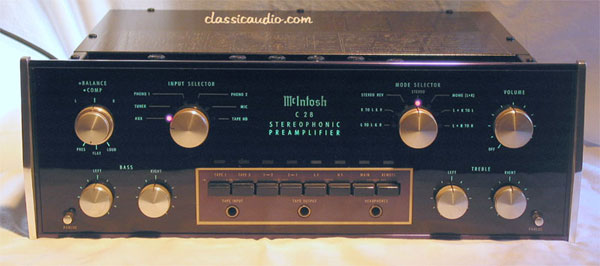

Controls:

Bass L
Bass R
Treble Llassicaudio.com
Treble R
Comp: Pres, Flat, Loud
Balanceclassicaudio.com
Volume

Controls (Top):

Bass Trim (L, R)
Phono 1 Level (L, R)
Phono 2 Level (L, R)lassicaudio.com
Headphone Level (L, R)
Output Level (L, R)
Center Channel Levelclassicaudio.com
Volume

Switches:

Input Selector: Aux, Tuner, Phono 1, Phono 2, Mic, Tape HD
Mode Selector: L to L+R, R to L+R, Stereo Reverse, Stereo, Mono, L+R to L, L+R to R
Tape 1
Tape 2classicaudio.com
Tape Copy 1>2
Tape Copy 2>1
Low Filterclassicaudio.com
High Filter
Speakers Main Off
Speakers Remote Off

Jacks:

Tape Input
Tape Output
Headphones

Indicators:

Input Sourceclassicaudio.com
Mode
TAPE 1
TAPE 2classicaudio.com
TAPE COPY 1>2
TAPE COPY 2>1
LOW FILTERclassicaudio.com
HIGH FILTER
MAIN SPEAKERS OFFclassicaudio.com
REMOTE SPEAKERS OFF
Fully Back Illuminated Glassclassicaudio.com

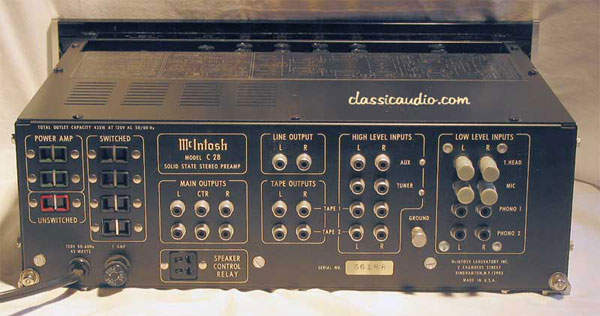

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched (4)classicaudio.com
AC Outlet Power Amp (2)
Phono Input 1 (L, R)
Phono Input 2 (L, R)
Aux Input (L, R)
Tuner (L, R)
Mic (L, R,)
T Head (L, R,)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor In 1 (L, R)
Tape Monitor Out 2 (L, R)classicaudio.com
Tape Monitor In 2 (L, R)
Main Out 1 (L, R,)
Main Out 2 (L, R,)
Center Out 1
Center Out 2
Line Output (L, R,)
Speaker Control Relay Jack

---

---
