Controls:
Volume
Balance
Bass (L, R)
Treble (L,R)classicaudio.com
Muting Level (Top Panel)
Switches:
Input Selector: Aux, Tape, AM, FM, PH 1, PH 2
Mono/Stereo
Lo Filter
High Filter
Tape Monitor
Muting: In/Out
Loudness
Phase: 180/0 (Top Panel)
Dial Illumination: Dim/Bright (Top Panel)
lassicaudio.comIndicators:
Tuning
Stereo

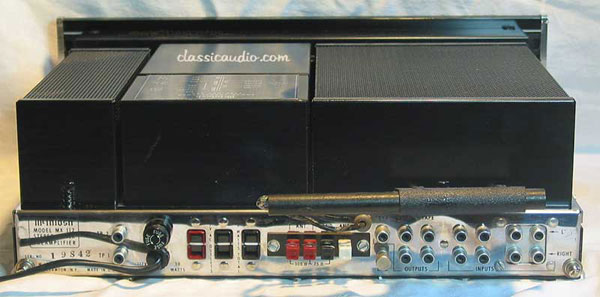

Rear Panel:
AC Outlet Unswitched (2)lassicaudio.com
AC Outlet Switched (1)
L+R Out
Main Out (L, R)
Tape Out (L, R)
Aux In (L, R)
Tape In (L, R)
PH 1 In (L, R)
PH 2 In (L, R)assicaudio.com
300 Ohm Antenna
75 Ohm Antenna
AM Antenna: Ext/Loop
