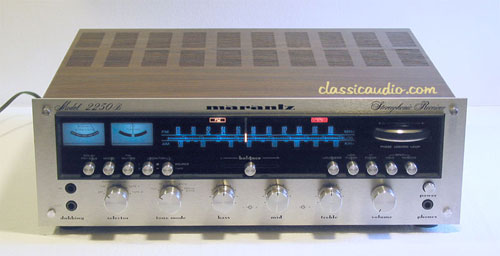

Marantz 2250B

Specifications:

Power Output: 50 Watts per channel RMS into 8 ohms.classicaudio.com

Controls:

Selector: AM, FM, Phono, Aux, Tape 1, Tape 2.
Tone Mode: Out, In, 250Hz, 4kHz, 250Hz/4kHzclassicaudio.com
Bass: Independent Left, Right
Mid: Independent Left, Rightclassicaudio.com
Treble: Independent Left, Right
Volume
Balance: Sliderclassicaudio.com

Switches:

Dolby FM-25uS
Monoclassicaudio.com
FM Muting
Monitor: 1, 2
Monitor: Source, Tapeclassicaudio.com
Loudness
Low Filter
Hi Filterclassicaudio.com
Spkr Main
Spkr Remote
Power

Jacks:

Dubbing In
Dubbing Outclassicaudio.com
Headphones

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
AM
FM
PHONO
AUXclassicaudio.com
TAPE 1
TAPE 2
STEREOclassicaudio.com

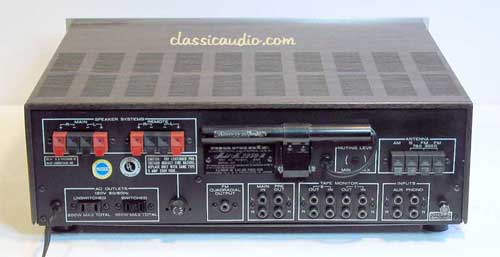

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
FM Quadradial Output
Main In Left, Right
Pre Out Left, Rightclassicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)
Aux Input (L, R)classicaudio.com
Phono Input (L, R)
Muting Level

---
