Marantz 2270

Specifications:

Power Output: 70 Watts per channel RMS into 8 ohms.classicaudio.com

Controls:

Selector: Phono 2, Phono 1, FM, AM, Tape, Aux.
Bass: Independent Left, Right
Mid: Independent Left, Rightclassicaudio.com
Treble: Independent Left, Right
Balance
Volumeclassicaudio.com

Switches:

Multipath
Hi Blendclassicaudio.com
Monitor: 1, 2
Monitor: Tape, Source
Mono Left
Mono Rightclassicaudio.com
Low Filter
High Filter
Loudnessclassicaudio.com
FM Muting
Main Spkr
Remote Spkr
Power

Jacks:

Dubbing In
Dubbing Outclassicaudio.com
Headphones

Indicators:

Signal Strength/Mutipath Meter
Tuning Meter
STEREOclassicaudio.com
PHONO 2
PHONO 1
FM
AMclassicaudio.com
TAPE
AUX

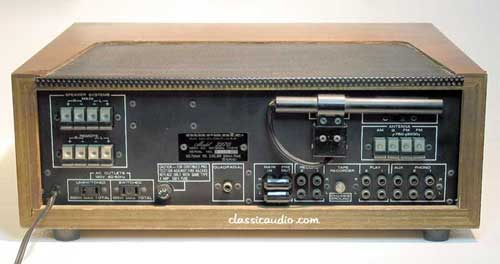

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
FM Quadradial Output
Main In Left, Right
Pre Out Left, Right
Tape Monitor 2 Out (L, R)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor 2 In (L, R)
Tape Monitor 1 In (L, R)
Aux Input (L, R)classicaudio.com
Phono 2 Input (L, R)
Phono 1 Input (L, R)
Muting Level
Antenna Attenuatorclassicaudio.com

---
