Marantz 2275

Specifications:

Power Output: 75 watts RMS per channel into 8 ohms. classicaudio.com

---

Controls:

Selector: AM, FM, Phono, Aux, Tape 1, Tape 2
Tone Mode: Out, In, 250Hz, 4kHz, 250Hz 4 kHz classicaudio.com
Bass: Independent Left, Right
Mid: Independent Left, Right classicaudio.com
Treble: Independent Left, Right
Balance: Slider
Volume classicaudio.com

Switches:

Dolby FM
Multipath
Hi Blend classicaudio.com
Mono L
Mono R classicaudio.com
Monitor: 1, 2
Monitor: Tape, Source classicaudio.com
Low Filter
High Filter
Loudness classicaudio.com
FM Muting
Main Spkr classicaudio.com
Remote Spkr
Power

Jacks:

Dubbing In
Dubbing Out classicaudio.com
Headphones

Indicators:

Signal Strength/Mutipath Meter classicaudio.com
Tuning Meter
AM classicaudio.com
FM
PHONO classicaudio.com
AUX
TAPE 1 classicaudio.com
TAPE 2

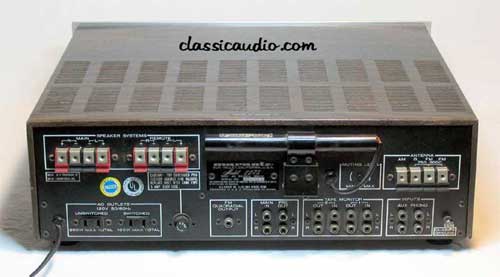

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched classicaudio.com
FM Quadradial Output
Main In Left, Right classicaudio.com
Pre Out Left, Right
Tape Monitor 2 Out (L, R)
Tape Monitor 1 Out (L, R) classicaudio.com
Tape Monitor 2 In (L, R)
Tape Monitor 1 In (L, R)
Aux Input (L, R) classicaudio.com
Phono Input (L, R)
Muting Level classicaudio.com

---

---
