Marantz 3300

Specifications:

Total Harmonic Distortion: Less than 0.05%.
Maximum Output: 3.0 volts RMSclassicaudio.com
Wood Case Accessory: WC-2
Precision Crafted In U.S.A.classicaudio.com

Controls:

Tone Control: Flat, In, Loudness
High Filter: 5K, Out, 9Kclassicaudio.com
Speakers: Off, System 1, System 2, Both
Low Filter: 50, Out, 100classicaudio.com
Volume
Selector: Mic, Phono 2, Phono 1, Tuner, Aux 1, Aux 2
Balance: Knobclassicaudio.com
Mode: R, L, Stereo, Stereo Reverse, L+R
Treble Left: +/-10dB Sliderclassicaudio.com
Treble Right: +/-10dB Slider
Bass Left: +/-10dB Sliderclassicaudio.com
Bass Right: +/-10dB Slider

Switches:

Powerclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com

Jacks:

Dubbing Inclassicaudio.com
Dubbing Out
Headphonesclassicaudio.com

Indicators:

Power

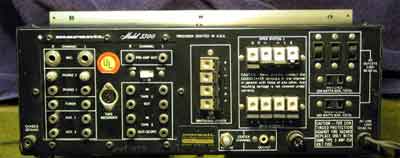

Rear Panel:

Phono Input 2 (L, R)classicaudio.com
Phono Input 1 (L, R)
Tuner (L, R)classicaudio.com
Aux Input 1 (L, R)
Aux Input 2 (L, R)classicaudio.com
Tape Recorder (DIN)
Pre Out Left, Rightclassicaudio.com
Pre Out Level: Low, High
Tape Monitor 1 In (L, R)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor 2 In (L, R)
Tape Monitor 2 Out/Scope (L, R)
Spkr Switching Inputs (L, R)classicaudio.com
Spkr System 1 (L, R)
Spkr System 2 (L, R)classicaudio.com
Center Channel Volume
Center Channel Outputclassicaudio.com
AC Outlet Switched (4)
AC Outlet Unswitched (1)classicaudio.com
