Marantz 3800

icaudio.com

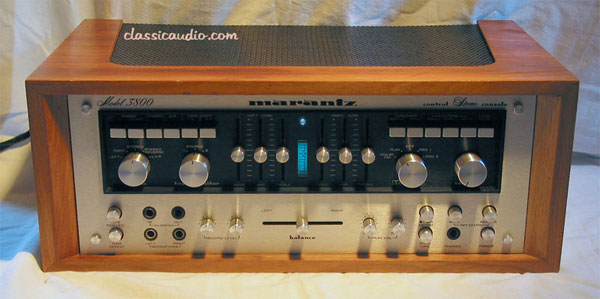

Controls:

Mode: Left, Right, Stereo, Reverse, Mono L+R
Tape Monitor: 1, Source, 2
Dolby: Dolby FM, Play, Off, Rec 1, Rec 2classicaudio.com
Left Bass: (Slider)
Left Mid: (Slider)
Left Treble:(Slider)classicaudio.com
Right Bass: (Slider)
Right Mid: (Slider)
Right Treble:(Slider)classicaudio.com
Volume
Balance: (Slider)
Dolby Record Level Left
Dolby Record Level Right
Dolby Play Level Left
Dolby Play Level Right

Switches:

Phono 1classicaudio.com
Phono 2/Mic
Tuner
Auxclassicaudio.com
Tape Copy 1>2
Tape Copy 2>1
Turnover 250 Hz
Turnover 4 kHzclassicaudio.com
Filter 30 Hz
Filter 5 kHzclassicaudio.com
Filter 9 kHz
Loudness
Record EQ
Tone Defeat
L/R Meterclassicaudio.com
400 Hz Tone
Spkr Mainclassicaudio.com
Spkr Remote
Power

Jacks:

Headphones
Dubbing Inclassicaudio.com
Dubbing Out
Mic Leftclassicaudio.com
Mic Right

Indicators:

Power
Dolby Cal Level Meter

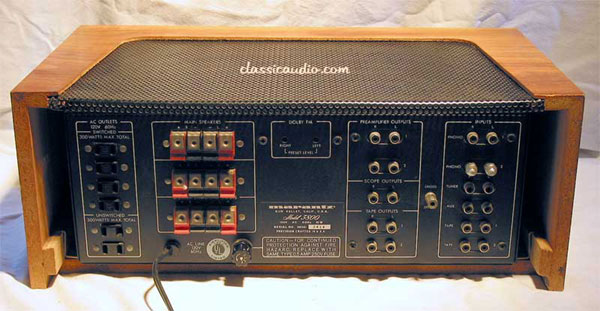

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switched (4) classicaudio.com
Speaker Systems: Main (R, L), Remote (R, L), Inputs (R, L)
Pre Out 1 Left, Right
Pre Out 2 Left, Right
Scope Outputs
Tape 2 Out (L, R,)
Tape 2 In (L, R,)classicaudio.com
Tape 1 Out (L, R,)
Tape 1 In (L, R,)
Aux Input (L, R)classicaudio.com
Tuner (L, R)
Phono 2 Input (L, R)
Phono 1 Input (L, R)
Dolby FM Cal Left
Dolby FM Cal Right
