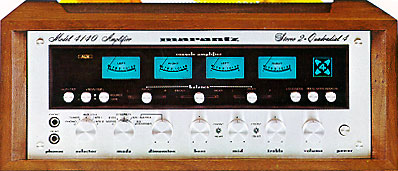

Marantz 4140

Specifications:

Power Output: 70 Watts X2 or 25 Watts X4 RMS into 8 ohms.
Total Harmonic Distortion: 0.3%classicaudio.com
Power Bandwidth: 7Hz to 70kHz
Damping Factor: 40 (8 ohms)
classicaudio.com
Output Level: 1.0 Volt @ 900 Ohms

Controls:

Selector: Phono, Tuner, Aux/CD4, Tape 1, Tape 2.
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Onlyclassicaudio.com
Bass: Independent Front, Rear
Mid: Independent Front, Rear
Treble: Independent Front, Rear
Volumeclassicaudio.com
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.com

Switches:

Hi Filterclassicaudio.com
Monitor: Source/Tape
Monitor: Tape 1/2
Loudness
Spkr Mainclassicaudio.com
Spkr Remote
Power

Jacks:

Headphones Front
Headphones Rear

Indicators:

LEVEL METER (dB) LEFT FRONT
LEVEL METER (dB) RIGHT FRONT
LEVEL METER (dB) LEFT REARclassicaudio.com
LEVEL METER (dB) RIGHT REAR
PHONO
4-CH
AUXclassicaudio.com
TAPE 1
TAPE 2

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched
Pre-Out (L, R, F, R)classicaudio.com
Main-In (L, R, F, R)
Scope Out (L, R, F, R)
Tape Monitor 2 Out (L, R, F, R)
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)classicaudio.com
Tuner (L, R)
Aux Input (L, R, F, R)
Phono Input (L, R)
Remote Controlclassicaudio.com
Power Mode: 70W X2/25W X4

---
