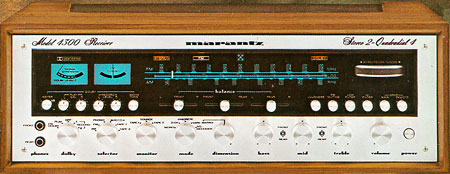

Marantz 4300

Specifications:

Power Output: 100 Watts X2 or 40 Watts X4 RMS into 8 ohms.
Total Harmonic Distortion: 0.15%classicaudio.com
Power Bandwidth: 7Hz to 70kHz
Damping Factor: 50 (8 ohms)classicaudio.com
FM Sensitivity: 1.9uV (30dB Quieting)
FM THD: 0.2% Mono, 0.3% Stereo
FM Stereo Separation: 40dB (at 1 kHz)classicaudio.com

Controls:

Dolby Play Cal Left
Dolby Play Cal Right
Dolby Record Cal Leftclassicaudio.com
Dolby Record Cal Right
Dolby: FM Dolby, Play, Off, Record 1, Record 2.
Selector: AM, FM, Phono, Aux/CD4, Tape 1, Tape 2.
Monitor: Tape 1, Source, Tape 2classicaudio.com
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Only
Bass: Independent Front, Rear
Mid: Independent Front, Rearclassicaudio.com
Treble: Independent Front, Rear
Volume
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.com

Switches:

Meter: Signal Strength, Dolby Level
400 Hz Toneclassicaudio.com
Loudness
FM Muting
Low Filterclassicaudio.com
Hi Filter
Spkr Main
Spkr Remote
Powerclassicaudio.com

Jacks:

Headphones Front
Headphones Rear

Indicators:

Signal Strength/Dolby Meter
Tuning Meterclassicaudio.com
STEREO
AM
FM
PHONOclassicaudio.com
4-CH
AUX
TAPE 1
TAPE 2classicaudio.com
DOLBY

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched
FM Quadradial Outputclassicaudio.com
Main In Left, Right, Front, Rear
Pre Out Left, Right, Front, Rear
Tape Monitor 2 Out (L, R, F, R)
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)classicaudio.com
Tape Monitor 1 In (L, R, F, R)
Aux Input (L, R, F, R)
Phono Input (L, R)
Remote Controlclassicaudio.com
Power Mode: 100W X2/40W X4

---
