Specifications:
Power Output: 110 watts per channel RMS into 8 ohms, 110 watts into 4 ohms.
Harmonic Distortion: Less than 0.1%classicaudio.com
Intermodulation Distortion: Less than 0.1%
Damping Factor: >30classicaudio.com
Hum and Noise: >-110dB
Frequency Response: 7Hz to 100kHz classicaudio.com
FM Sensitivity: 1.7uVclassicaudio.com
FM Signal to Noise Ratio: 72dB
IF Rejection: 110dBclassicaudio.com
Spurious Rejection: 110dB
Harmonic Distortion Mono: <0.2%classicaudio.com
Harmonic Distortion Stereo: <0.3%
Stereo Separation: 40dBclassicaudio.com

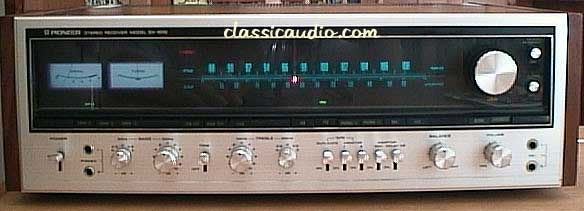

Controls:
Bass 50Hz +/-5dBclassicaudio.com
Bass 100Hz +/-10dB
Treble 10kHz +/-10dBclassicaudio.com
Treble 20kHz+/-5dB
Balanceclassicaudio.com
Volume
Switches (Toggle):
Powerclassicaudio.com
Tone Off
Tape Duplicateclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor 4-CH
Adaptor Dolby NRclassicaudio.comSwitches (Push):
Spkr-Aclassicaudio.com
Spkr-B
Spkr-Cclassicaudio.com
Low Cut
High Cutclassicaudio.com
-20dB
AMclassicaudio.com
FM
Phono 1classicaudio.com
Phono 2
Micclassicaudio.com
Aux
Monoclassicaudio.com
Loudness
Dimmer: Bright/Dimclassicaudio.com
FM Muting OffJacks:
Mic-Lclassicaudio.com
Mic-R
Headphones 1classicaudio.com
Headphones 2Indicators:
Signal Strength Meterclassicaudio.com
Tuning Meter
STEREOclassicaudio.com
SP-A
SP-Bclassicaudio.com
SP-C
LOWclassicaudio.com
HIGH
-20dB
AMclassicaudio.com
FM
PH-1
PH-2classicaudio.com
MIC
AUXclassicaudio.com
MONO

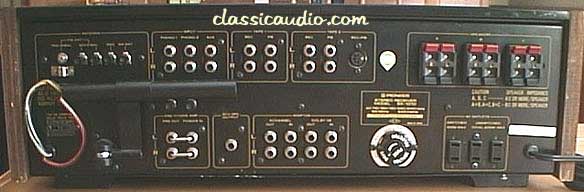

LOUDclassicaudio.comRear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Rec (L, R)
Tape Monitor 1 PB (L, R)classicaudio.com
Tape Monitor 2 Rec (L, R,)
Tape Monitor 2 PB (L, R, DIN)classicaudio.com
Pre-Out (L, R)
Power-In (L, R)classicaudio.com
4-CH MPX Output
Adapter 4-CH Out (L, R)classicaudio.com
Adapter 4-CH In (L, R)
Adapter Dolby NR Out (L, R)classicaudio.com
Adapter Dolby NR In (L, R)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)classicaudio.com
