Pioneer SX-535

Specifications:

Power Output: 22 watts per channel RMS into 8 ohms, 25 watts into 4 ohms.classicaudio.com
Harmonic Distortion: Less than 0.8%
Intermodulation Distortion: Less than 0.8%classicaudio.com
Power Bandwidth: 10Hz to 70kHz
Damping Factor: >30classicaudio.com
Residual Hum and Noise: >0.5mV

FM Sensitivity: 1.9uVclassicaudio.com
FM Signal to Noise Ratio: 70dB
IF Rejection: 90dBclassicaudio.com
Spurious Rejection: 90dB
Harmonic Distortion Mono: <0.2%classicaudio.com
Harmonic Distortion Stereo: <0.4%
Stereo Separation: >40dBclassicaudio.com

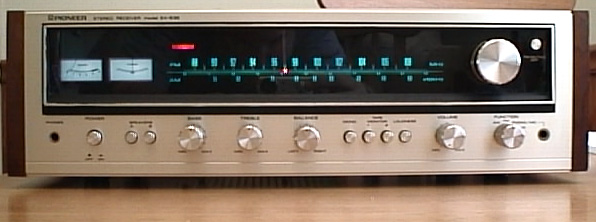

Controls:

Bassclassicaudio.com
Treble
Balanceclassicaudio.com
Volume
Function: AM, FM, Phono/Mic, Auxclassicaudio.com

Switches:

Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Mono
Tape Monitor 1classicaudio.com
Tape Monitor 2
Loudnessclassicaudio.com
FM Muting Off

Jacks:

Micclassicaudio.com
Headphones

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
AMclassicaudio.com

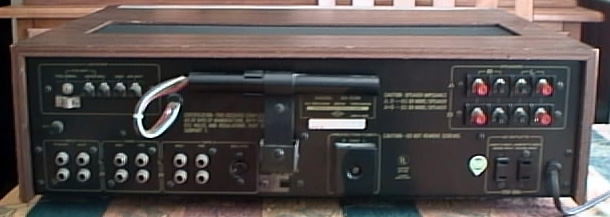

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono Input (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Rec (L, R)classicaudio.com
Tape Monitor 1 PB (L, R)
Tape Monitor 2 Rec (L, R, DIN)classicaudio.com
Tape Monitor 2 PB (L, R, DIN
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)

---
