Pioneer SX-737

Specifications:

Power Output: 35 watts per channel RMS into 8 ohms, 40 watts into 4 ohms.classicaudio.com
Harmonic Distortion: Less than 0.05%
Intermodulation Distortion: Less than 0.05%classicaudio.com
Power Bandwidth: 5Hz to 60kHz
Damping Factor: >40classicaudio.com
Residual Hum and Noise: >0.5mV
Frequency Response: 15Hz to 40kHz +/- 1dBclassicaudio.com

FM Sensitivity: 1.9uVclassicaudio.com
FM Signal to Noise Ratio: 70dB
IF Rejection: 100dBclassicaudio.com
Spurious Rejection: 100dB
Harmonic Distortion Mono: <0.2%classicaudio.com
Harmonic Distortion Stereo: <0.4%
Stereo Separation: >40dBclassicaudio.com

Controls:

Bassclassicaudio.com
Treble
Rec Selector: FM, Phono, Source, Duplicateclassicaudio.com
Balance
Volumeclassicaudio.com
Function: AM, FM, Phono, Mic, Aux

Switches:

Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Low Filter
High Filterclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
Loudness
FM Muting Offclassicaudio.com
Mono

Jacks:

Micclassicaudio.com
Headphones

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
STEREOclassicaudio.com
AM
FMclassicaudio.com
PHONO
MICclassicaudio.com
AUX

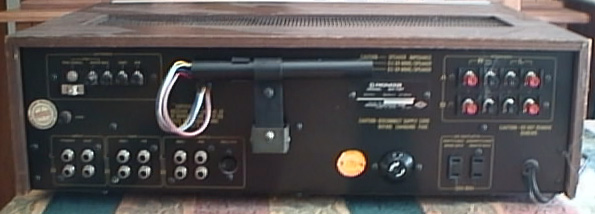

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
Phono Input (L, R)classicaudio.com
Aux Input (L, R)
Tape Monitor 1 Out (L, R)classicaudio.com
Tape Monitor 1 In (L, R)
Tape Monitor 2 Out (L, R, DIN)classicaudio.com
Tape Monitor 2 In (L, R, DIN
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)

---
