Pioneer SX-838

Specifications:

Power Output: 50 watts per channel RMS into 8 ohms.classicaudio.com
Total Harmonic Distortion: 0.3% max.
FM Sensitivity: 1.8 uVclassicaudio.com

Controls:

Bass
Treble classicaudio.com
Record Selector: FM, Phono, Source, Duplicate
Balanceclassicaudio.com
Volume

Switches (Toggle):

Powerclassicaudio.com
Bass Turnover: 400Hz/200Hz
Treble Turnover: 2.5kHz/5kHz
Tape Monitor 1classicaudio.com
Tape Monitor 2
Adaptor Dolby NRclassicaudio.com

Switches (Push):

Spkr-Aclassicaudio.com
Spkr-B
Spkr-Cclassicaudio.com
Low Cut
High Cut
-20dBclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2classicaudio.com
Mic
Auxclassicaudio.com
Mono
Loudnessclassicaudio.com
FM Muting Off

Jacks:

Micclassicaudio.com
Headphones

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
SP-Aclassicaudio.com
SP-B
SP-C
AMclassicaudio.com
FM
PH-1classicaudio.com
PH-2
MIC
AUXclassicaudio.com

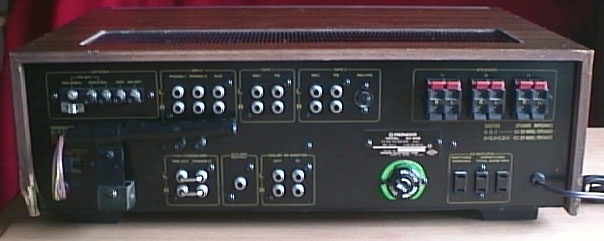

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux Input (L, R)classicaudio.com
Tape Monitor 1 Rec (L, R)
Tape Monitor 1 PB (L, R)classicaudio.com
Tape Monitor 2 Rec (L, R, DIN)
Tape Monitor 2 PB (L, R, DIN)
Pre-Out (L, R)classicaudio.com
Power-In (L, R)
4-CH MPX Outputclassicaudio.com
Adapter Dolby NR Out (L, R)
Adapter Dolby NR In (L, R)
Speaker System A (L, R)classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)classicaudio.com
Voltage Selector Switch (Some Models): 110V, 120V, 220V, 240V
FM De-Emphasis Selector Switch (Some Models): 50uS/75uSclassicaudio.com

---
