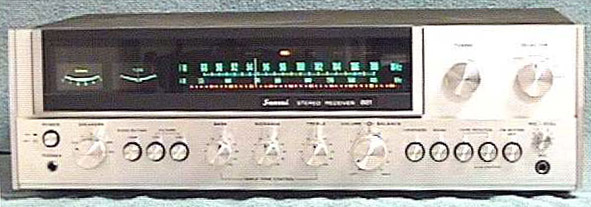

Sansui 881

Specifications:

Power Output: 63 Watts per channel RMS into 8 ohms.classicaudio.com
Power Band: 20 to 20,000Hz
Total Harmonic Distortion: <0.3%classicaudio.com
Frequency Response: 10 to 30,000Hz +/- 1.0dB
Damping Factor: 45classicaudio.com
Hum and Noise-Phono: >70dB
Hum and Noise-Aux: >80dBclassicaudio.com

FM Sensitivity: 1.8 uVclassicaudio.com
FM THD Mono: 0.3%
FM THD Stereo: 0.5%classicaudio.com
FM Separation: >40dB at 1000Hz
FM Frequency Response: 30 to 15,000Hz +0.5/-3.0dBclassicaudio.com

Controls:

Selector: Phono, FM Auto, AM, Aux 1, Aux 2classicaudio.com
Speakers: Off, A, B, C, A+B, A+C
Bass: +/- 10dB at 50Hzclassicaudio.com
Midrange: +/- 5dB at 1,500Hz
Treble: +/- 10dB at 10,000Hz
Volumeclassicaudio.com
Balance
Mic Levelclassicaudio.com

Switches:

Power
Audio Muting: -20dBclassicaudio.com
Low Filter: -10dB at 50Hz
Hi Filter: -10dB at 10,000Hzclassicaudio.com
Loudness: +10dB at 50Hz, +8dB at 10,000Hz
Monoclassicaudio.com
Tape Monitor 1
Tape Monitor 2classicaudio.com
FM Muting Off

Jacks:

Headphones
Micclassicaudio.com

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
STEREO
PHONOclassicaudio.com
FM
AMclassicaudio.com
AUX 1
AUX 2classicaudio.com

Rear Panel:

AC Outlet Unswitched
AC Outlet Switchedclassicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)classicaudio.com
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Aux Input 1 (L, R)
Aux Input 2 (L, R)
Phono Input (L, R)

---
