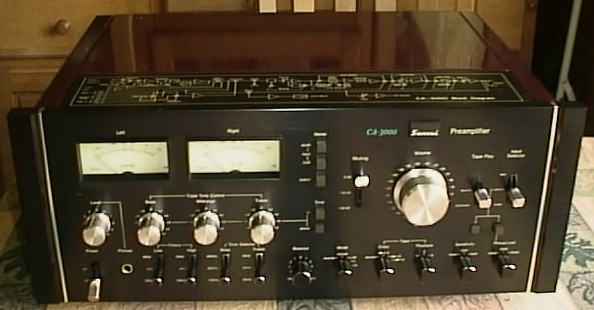

Sansui CA-3000



Specifications:

Output: 1.3 Volts (rated). Max. output 8V with <0.1% THD.
Total Harmonic Distortion: <0.03% at rated output.classicaudio.com
Intermodulation Distortion: <0.03%
Frequency Response: 10Hz to 100kHz at rated output.classicaudio.com
Channel Separation: >60dB
Hum and Noise: <90dB, <70dB for Phono Inputs.classicaudio.com

Controls:

Phones Levelclassicaudio.com
Treble: +/- 10
Midrange: +/- 5classicaudio.com
Bass: +/- 10
Volume: Log dB Scaleclassicaudio.com
Balance
Mode: Reverse, Normal, L+R, L, Rclassicaudio.com
Tape Playback: 1, 2, 3
Copy: Source, 1>2-3, 2>1-3, 3>1-2classicaudio.com
Sensitivity (Phono 1 and 2): 1.5 mV, 3 mV, 6 mV
Pickup Load (Phono 1): 30Kohm, 50Kohm, 100Kohmclassicaudio.com

Switches:

Powerclassicaudio.com
Low Filter: 40Hz, Off, 20Hz
Hi Filter: 7kHz, Off, 12kHzclassicaudio.com
Treble: 2kHz, 4kHz, 8kHz
Bass: 400Hz, 200Hz, 100Hzclassicaudio.com
Meter Input 40dB
Meter Input 0dBclassicaudio.com
Meter Output
Tone Inclassicaudio.com
Tone Defeat
Muting: 0, -10dB, -30dBclassicaudio.com
Tape Play: Source, Playback
Input Selector: Aux, Phono, Tunerclassicaudio.com
Phono 1
Phono 2classicaudio.com

Jacks:

Headphonesclassicaudio.com

Indicators:

Power LEDclassicaudio.com
Left Level Meter: -50dB to +5dB
Right Level Meter: -50dB to +5dBclassicaudio.com

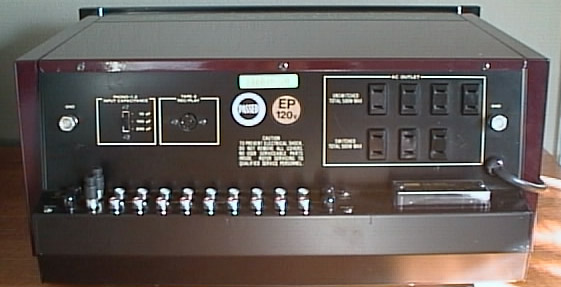

Rear Panel:

Input Capacitance (Phono 1 and 2): 10pF, 100pF, 200pFclassicaudio.com
Tape 2 Record/Play (DIN)
AC Outlet Unswitched (4)classicaudio.com
AC Outlet Switched (3)
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Tape 1 Play (L, R)classicaudio.com
Tape 1 Record (L, R)
Tape 2 Play (L, R)classicaudio.com
Tape 2 Record (L, R)
Tape 3 Play (L, R)classicaudio.com
Tape 3 Record (L, R)
Tuner (L, R)classicaudio.com
Aux (L, R)
Output 1 (L, R)classicaudio.com
Output 2 (L, R)

---
