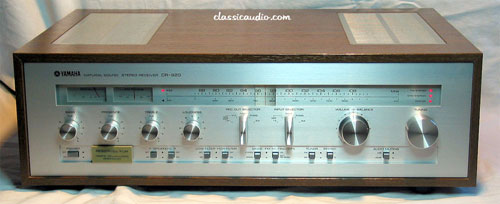

Yamaha CR-820

Specifications:

Power Output: 55 watts per channel RMS into 8 ohms.classicaudio.com
Harmonic Distortion: 0.02% at 25 Watts
Intermodulation Distortion: 0.05% at 50 Wattsclassicaudio.com


FM Sensitivity: 1.8uV
Capture Ratio: 1.0classicaudio.com
FM Harmonic Distortion Mono: 0.10%classicaudio.com
FM Harmonic Distortion Stereo: 0.15%

---

Controls:

Bassclassicaudio.com
Presence
Trebleclassicaudio.com
Loudness
Volume
Balanceclassicaudio.com

Switches:

Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Low Filter
High Filterclassicaudio.com
Mode: Stereo/Monoclassicaudio.com
FM Muting/OTS (Optimum Tuning System): On/Off FM Mono
Tuner: AM/FM
Phono: 1/2classicaudio.com
Audio Muting: -20dB
Record Out Selector: Tape Copy 2>1, Tape Copy 1>2, Tuner, Phono, Aux
Input Selector: Tape 2, Tape 1, Tuner, Phono, Auxclassicaudio.com

Indicators:

Signal Q Meterclassicaudio.com
Tuning Meter
FM
AM
POWERclassicaudio.com
FM STEREOclassicaudio.com
OTS/STATIONclassicaudio.com

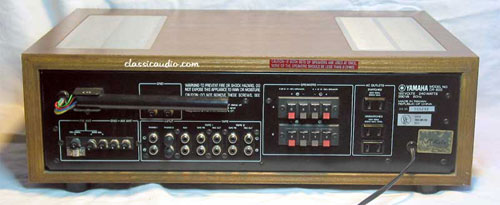

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: 300 ohm balanced, 75 ohm unbalanced, coaxial.
AM Ferrite Bar Antennaclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)classicaudio.com
Aux (L, R)
Tape 1 Playback (L, R)
Tpae 1 Record (L, R)classicaudio.com
Tape 2 Playback (L, R)
Tape 2 Record (L, R)classicaudio.com
Speaker Out A (L, R)classicaudio.com
Speaker Out B (L, R)
