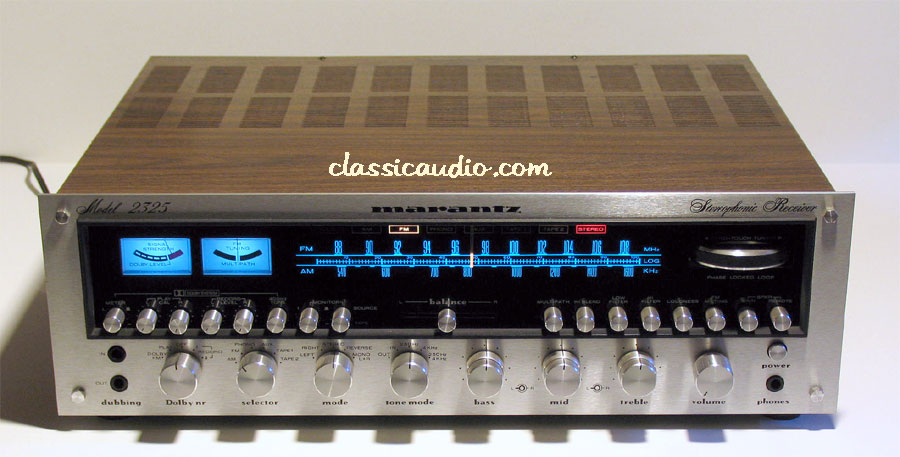

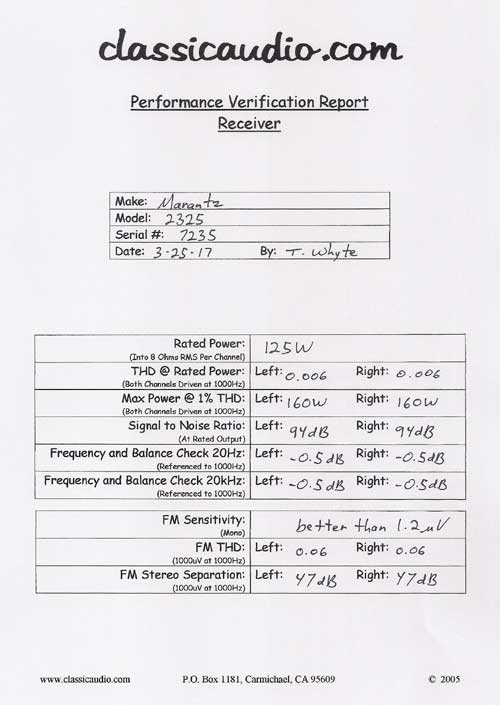

Marantz model 2325 receiver in excellent condition. Rated at 125 watts RMS per channel into 8 ohms. It has been serviced and aligned. Our original Performance Verification Report and a copy of the Handbook of Instructions included. This is the top of the line receiver from the best era for Marantz solid state.

Date of manufacture: September 6th, 1976.





Controls:

Dolby NR: Dolby FM, Play, Off, Record 1, Record 2
Selector:
AM, FM, Phono, Aux, Tape 1, Tape 2classicaudio.com
Mode: Left, Right, Stereo, Reverse, L+R Mono
Tone Mode: Out, In, 250Hz, 4kHz, 250Hz 4 kHzclassicaudio.com
Bass: Independent Left, Right
Mid: Independent Left, Rightclassicaudio.com
Treble:
Independent Left, Right
Balance: Sliderclassicaudio.com
Volume
Dolby Play Cal Left
classicaudio.com
Dolby Play Cal Right
Dolby Record Level Left
classicaudio.com
Dolby Record Level Right
classicaudio.com

Switches:

Meter: Left, Rightclassicaudio.com
400 Hz Tone
Monitor:
1, 2
Monitor:
Tape, Sourceclassicaudio.com
Multipath
Hi Blend
classicaudio.com
Low Filter
High Filter
Loudness
classicaudio.com
FM Muting
Main Spkr
classicaudio.com
Remote Spkr
Power

Jacks:

Dubbing In
Dubbing Out
classicaudio.com
Headphones

Indicators:

Signal Strength/Dolby Level Meterclassicaudio.com
Tuning/Multipath Meter
DOLBY
AM
classicaudio.com
FM
PHONO
classicaudio.com
AUX
TAPE 1
classicaudio.com
TAPE 2
STEREO

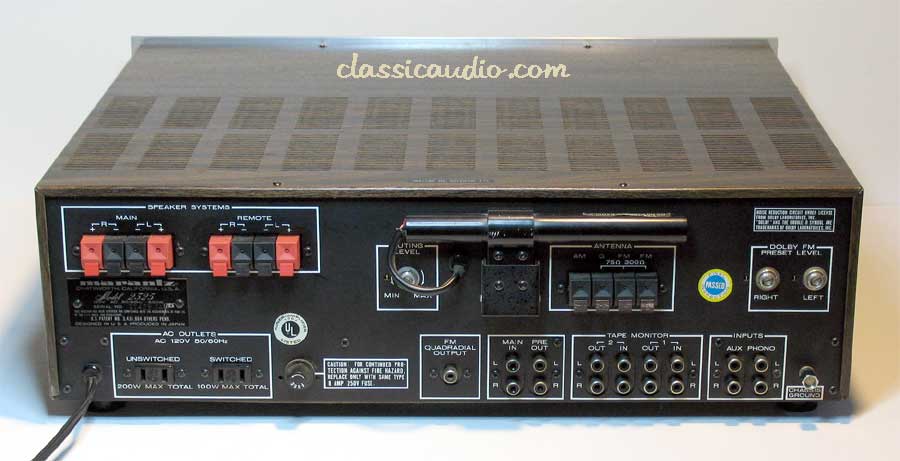

Rear Panel:

AC Outlet Unswitched
AC Outlet Switched
classicaudio.com
FM Quadradial Output
Main In Left, Right
classicaudio.com
Pre Out Left, Right
Tape Monitor 2 Out (L, R)
Tape Monitor 1 Out (L, R)
classicaudio.com
Tape Monitor 2 In (L, R)
Tape Monitor 1 In (L, R)
Aux Input (L, R)
classicaudio.com
Phono Input (L, R)
Muting Level
Dolby FM Preset Level
c(L, R)lassicaudio.com

Shipping Weight: 57 lbs. (70 lbs. w/cabinet)





$3000.00





ClassicAudio.com
Phone 916-488-6016 or
To send email click here.





Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We
PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

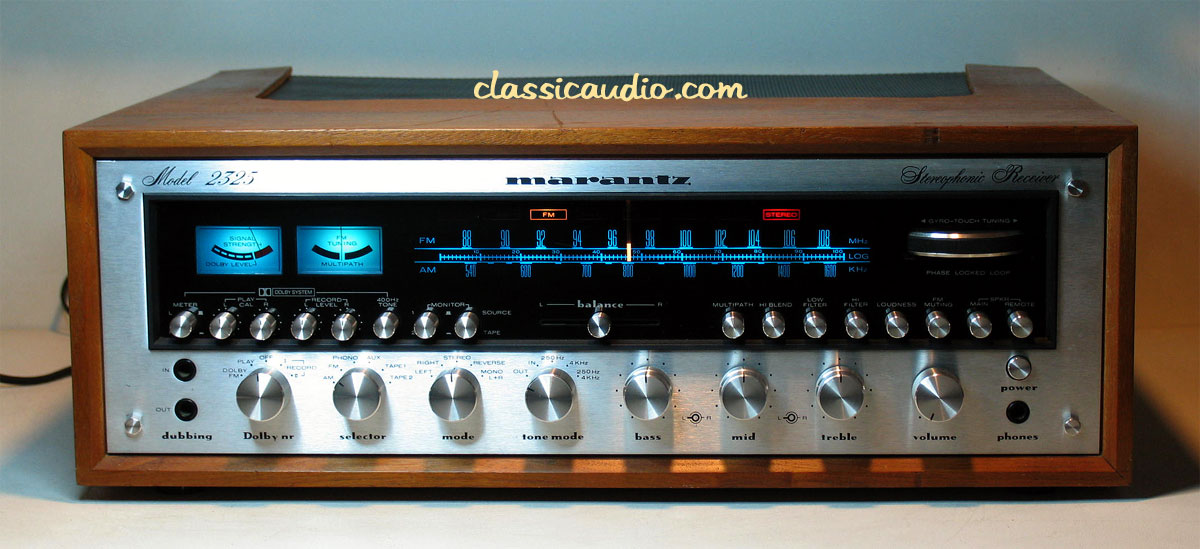

Add a reproduction cabinet at no extra charge:


Meter, Dial and Stereo lamps have been converted to LEDs.

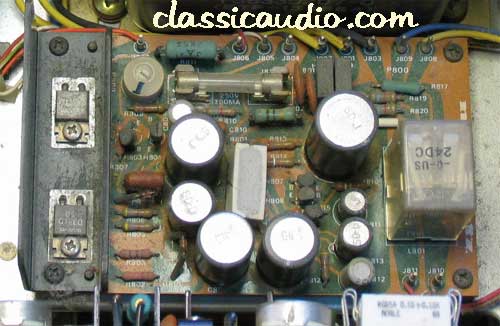

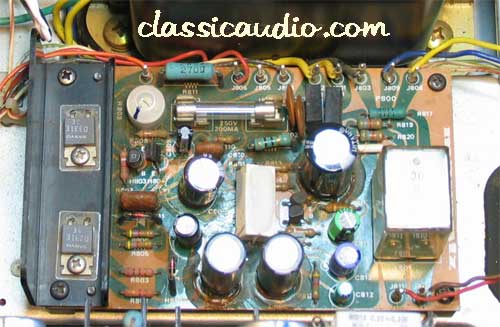

Marantz 2325 Regulated Power Supply/Protect PCB Refurb:

 BEFORE

AFTER

Also Refurbished: Left Channel Amp Section, Right Channel Amp Section.

The two main power supply capacitors have been replaced with new Nichicon.
