Pioneer model SX-850 AM/FM receiver from December of 1976 in excellent condition. Rated at 65 watts RMS per channel into 8 ohms and 85 watts RMS into 4 ohms.

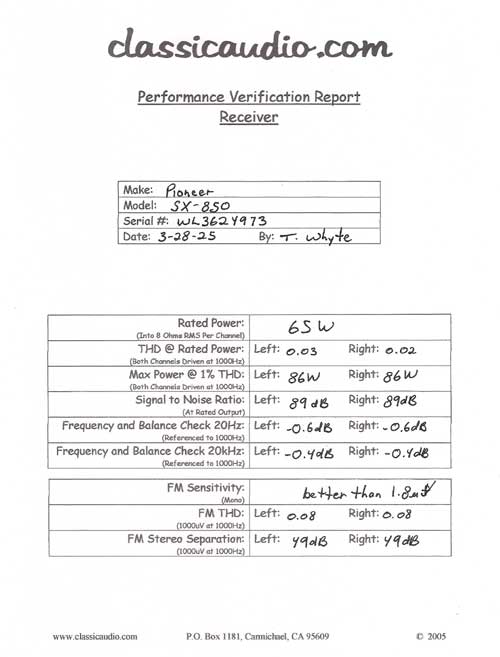

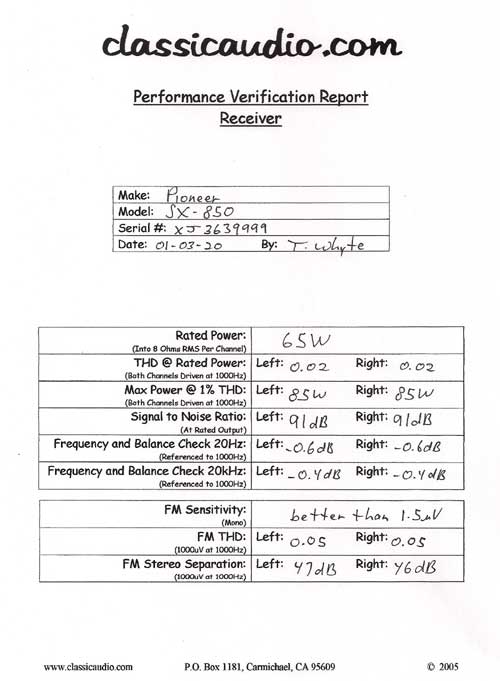

It has been serviced and fully tested. Includes our original Performance Verification Report and a copy of the Owner's Manual.

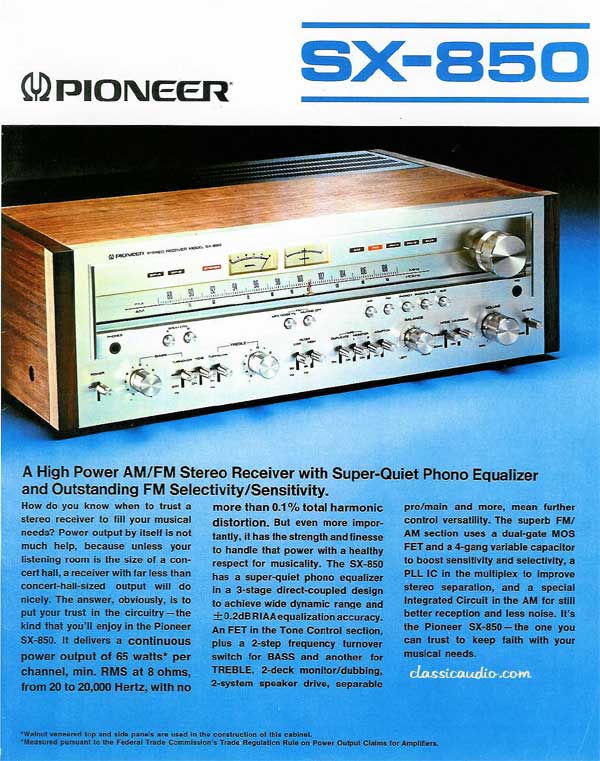

From Pioneer:
The Pioneer SX-850 is a high power AM/FM stereo receiver with super-quiet phono equalizer and outstanding FM selectivity/sensitivity.
How do you know when to trust a stereo receiver to fill your musical needs?
Power output by itself is not much help, because unless your listening room is the size of a concert hall, a receiver with far less than concert-hall-sized output will do nicely.
The answer, obviously, is to put your trust in the circuitry the kind that you'll enjoy in the pioneer SX-850.
It delivers a continuous power output of 65 watts per channel, min RMS at 8 ohms, from 20 to 20,000 Hertz, with no more than 0.1% total harmonic distortion.
But even more importantly, it has the strength and finesse to handle that power with a healthy respect for musicality.
The SX-850 has a super-quiet phono equalizer in a 3-stage direct-coupled design to achieve wide dynamic range and +- 0.2dB RIAA equalization accuracy.
A FET in the Tone Control section, plus a 2-step frequency turnover switch for Bass and another for Treble, 2-deck monitor/dubbing, 2-system speaker drive, separable pre/main and more, mean further control versatility.
The superb FM/ AM section uses a dual-gate MOS FET and a 4-gang variable capacitor to boost sensitivity and selectivity, a PLL IC in the multiplex to improve stereo separation, and a special Integrated Circuit in the AM for still better reception and less noise.
It's the Pioneer SX-850 - the one you can trust to keep faith with your musical needs.
 |

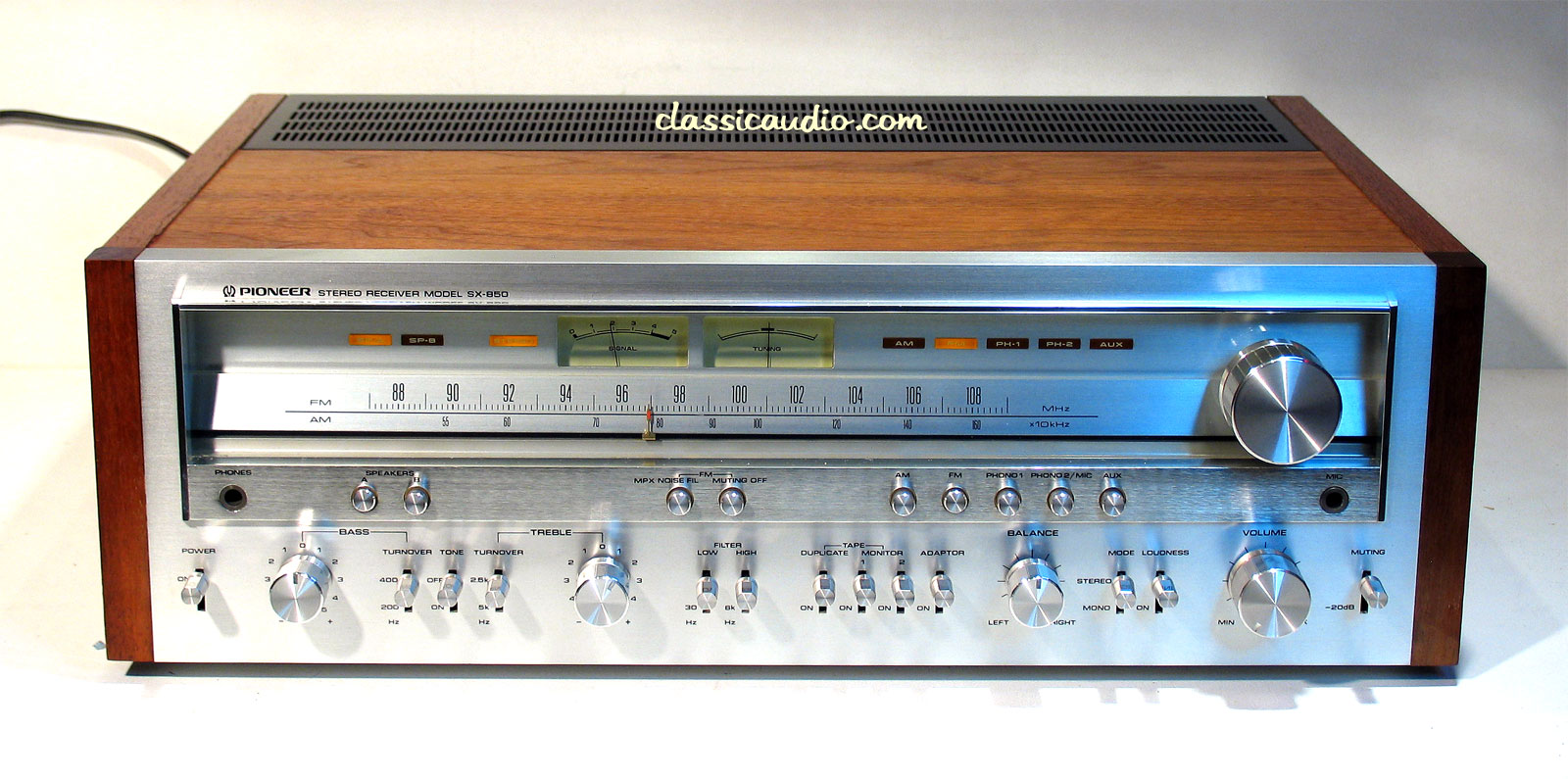

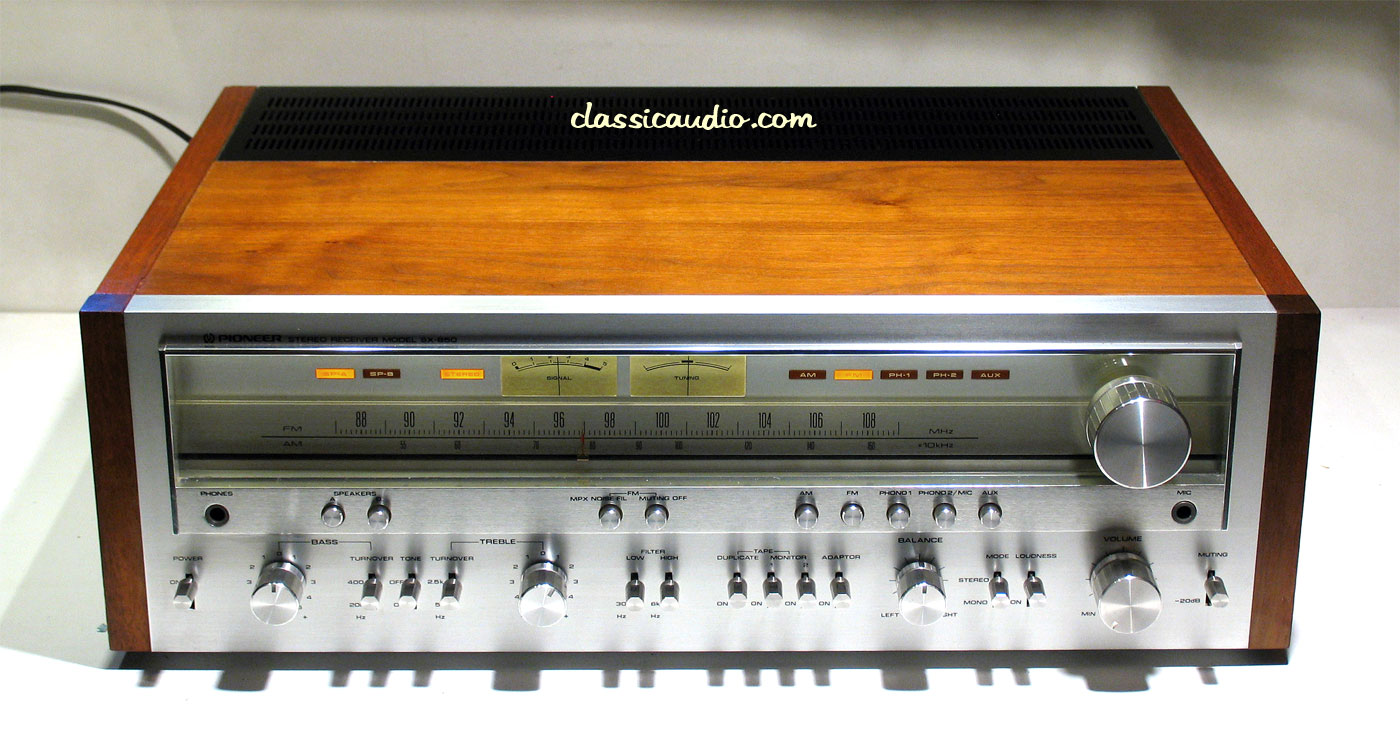

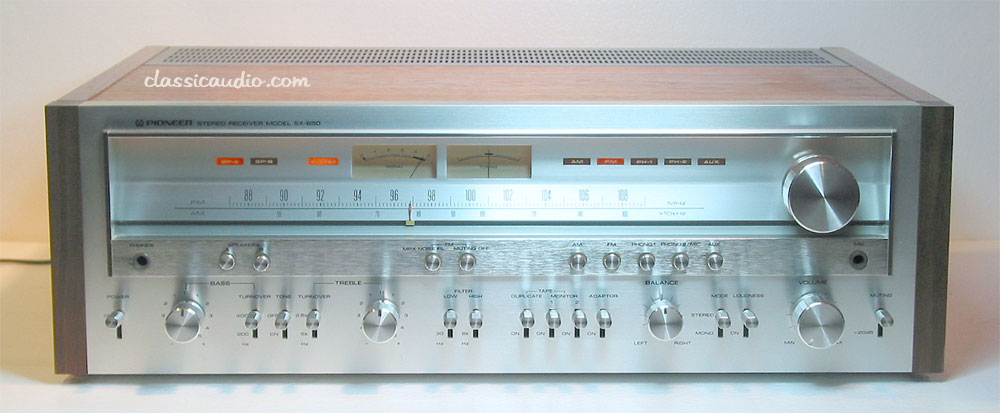

Controls:
Bass
Trebleclassicaudio.com
Volume
Balanceclassicaudio.com
Switches:
Power
Speakers A
Speakers Bclassicaudio.com
MPX Noise Filter
Muting Offclassicaudio.com
AM
FM
Phono 1classicaudio.com
Phono 2
Aux
Bass Turnover: 400, 200
Tone: On, Offclassicaudio.com
Treble Turnover: 2.5k, 5k
Low Filter
High Filter
Tape Duplicateclassicaudio.com
Tape Monitor 1
Tape Monitor 2
Adaptorclassicaudio.com
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dBIndicators:
Signal Strength Meterclassicaudio.com
Tuning Meter
SPEAKER Aclassicaudio.com
SPEAKER B
STEREO
AMclassicaudio.com
FM
PH-1classicaudio.com
PH-2
AUXclassicaudio.comJacks:
Phones

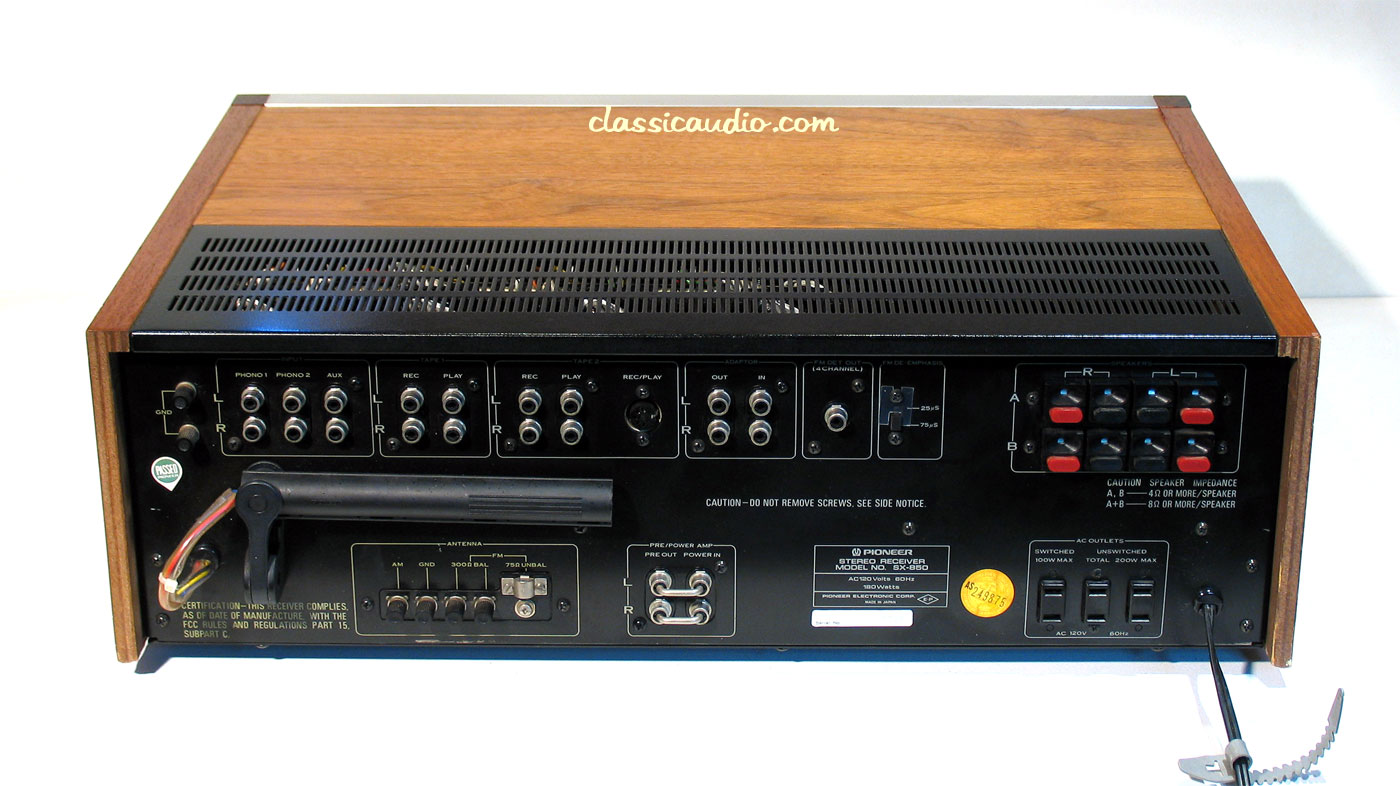

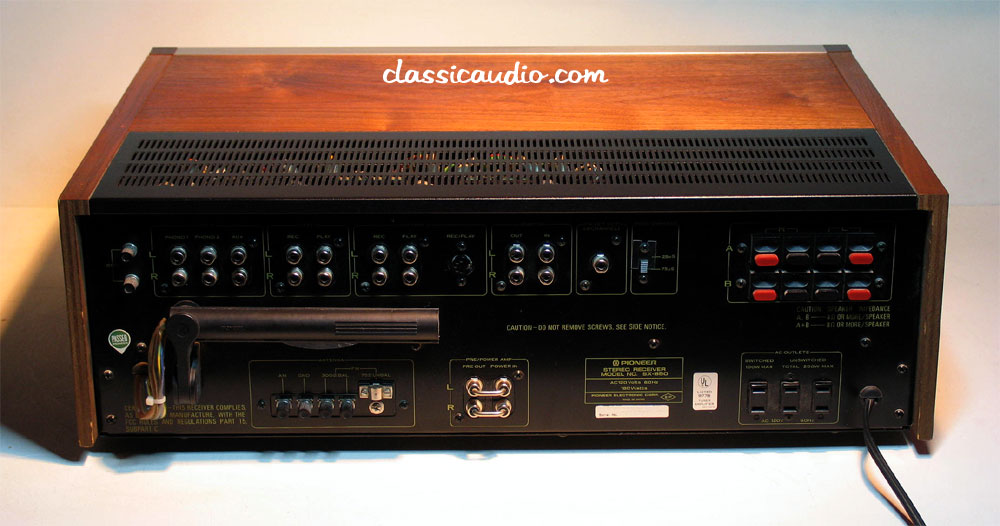

Micclassicaudio.comRear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux (L, R)classicaudio.com
Tape 1 Rec (L, R)
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)classicaudio.com
Adaptor Out (L, R)
In (L, R)classicaudio.com
Pre-Out (L, R)
Main-In (L, R)classicaudio.com
FM Det Out (4 Channel)
Shipping Weight 47 lbs.
 |
$2500.00
 |
