Specifications:
Power Output: 30 watts per channel RMS into 8 ohms (X4).
Harmonic Distortion: Less than 0.5%classicaudio.com
Intermodulation Distortion: Less than 0.5%
Damping Factor: 65classicaudio.com
Dimensions: 17 x 13.5 x 5.5
Weight: 26.00 lbsclassicaudio.com

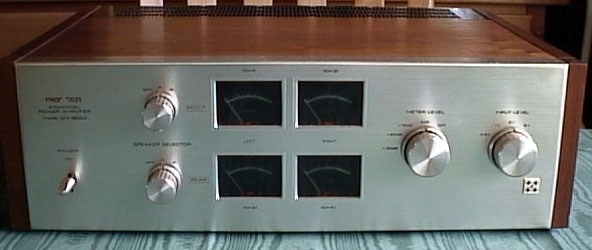

Switches:
Power On/Offclassicaudio.com
Speakers Front: Off, A, B
Speakers Rear: Off, A, Bclassicaudio.com
Meter Level: -30, -20, -10, 0, Off
Input Level: 0.5V, 1V, 2V, 5Vclassicaudio.com

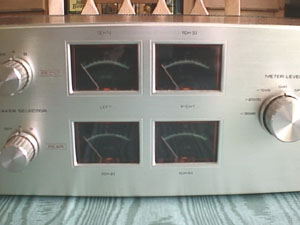

Indicators:
Level CH 1: -20 to +3dBclassicaudio.com
Level CH 3: -20 to +3dB
Level CH 2: -20 to +3dBclassicaudio.com

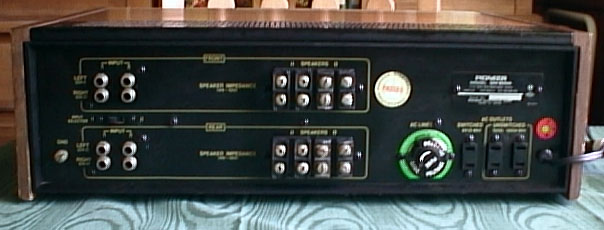

Level CH 4: -20 to +3dBRear Panel:
Input 1 (L, R, F & R)classicaudio.com
Input 2 (L, R, F & R)
Input Selector: 1/2classicaudio.com
Speakers A (L, R, F & R)
Speakers B (L, R, F & R)classicaudio.com
AC Outlet Switched
AC Outlet Unswitched (2)classicaudio.com
