Specifications:
Heads: 4 (record, erase, FWD play, REV play)classicaudio.com
Motor: Capstan (FG-system, AC servo, direct drive)
Motors: Reel (6-pole inner rotor induction type)classicaudio.com
Tape Speed: 7 1/2 and 3 3/4 IPS
Wow and Flutter: Less than 0.05% or 0.08% WRMS (7 1/2 IPS or 3 3/4 IPS)
Signal to Noise Ratio: More than 58dBclassicaudio.com
THD: Less than 1%
Frequency Response 7 1/2 IPS: 20Hz to 28kHzclassicaudio.com
Frequency Response 3 3/4 IPS: 20Hz to 20kHz
Crosstalk: More than 50dBclassicaudio.com
Channel Separation: More than 50dB
Erasure Rate: More than 70dBclassicaudio.com
Recording Bias Frequency: 125kHz
Equalization: NAB Standardsclassicaudio.com
Weight: 44 Pounds
Height: 221.5 mmclassicaudio.com
Depth: 319 mm
Controls:
Mic Level (L, R)classicaudio.com
Line Level (L, R)
Pitch: +/- 6%classicaudio.com
Fast Rewind
Fast Forward
Stopclassicaudio.com
Play
Rec
Direction Reverseclassicaudio.com
Direction Forward
Pauseclassicaudio.com
Switches:
Powerclassicaudio.com
Speed: 7 1/2 or 3 3/4
Monitor: Tape/Source
Bias: STD/LHclassicaudio.com
EQ: STD/LH
Record Mode Left: On/Offclassicaudio.com
Record Mode Right: On/Off
Repeat (counter interlocked)classicaudio.com

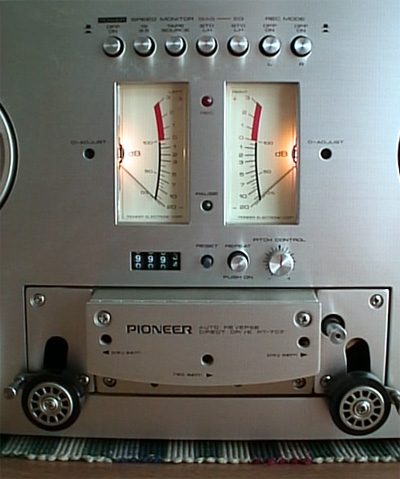

Indicators:
dB Level Left (+3 to -20)classicaudio.com
dB Level Right (+3 to -20)
RECclassicaudio.com
PAUSE
Tape Counter: 4 digitclassicaudio.com
FWD DIRECTION
REV DIRECTIONclassicaudio.com
Jacks:
Headphonesclassicaudio.com
Mic L
Mic Rclassicaudio.com
Rear Panel:
Unswitched AC Outletclassicaudio.com
Voltage Select: 120/220/240
DIN (Line In/Out)classicaudio.com
Output (L, R)
Input (L, R)classicaudio.com
Output Level Left
Output Level Rightclassicaudio.com
