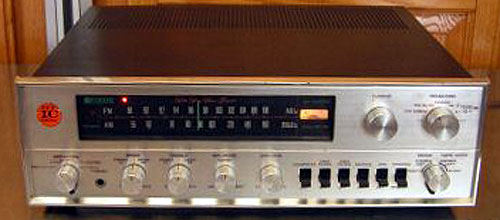

Pioneer SX-1000TD

Specifications:

PIONEER MODEL SX-1000TD STEREO RECEIVER
TECHNICAL SPECIFICATIONSclassicaudio.com

TRANSISTORS & DIODES
Tuner Section
-ICs: 4
-FET: 1classicaudio.com
-Transistors: 12
-Diodes: 16
Audio Section:classicaudio.com
Transistors: 27
Diodes and etc. 13classicaudio.com

FM SECTION
Circuitry:
-Front-end using "FET" and 4-gang variable air capacitor
-IF amplifier using 4 "IC"sclassicaudio.com
Frequency Range: 87-108 MHz
IHF Usable Sensitivity: 1.7 uV
Image Rejection: 76 dB (at 98 MHz)classicaudio.com
Signal-to-Noise Ratio: 65 dB (IHF rating)
Capture Ratio: 1 dB (at 98 MHz)
Antenna Input: 300 ohms (balanced)classicaudio.com

MULTIPLEX SECTION
Circuitry:
-Time switching type de-modulator
-FM Mono/Stereo automatic selectionclassicaudio.com
Channel Separation: 37 dB (at 1 kHz)

AM SECTION
Circuitry: Superheterodyne
Frequency Range: 525-1605 kHz
IHF Usable Sensitivity: 20 uVclassicaudio.com
Image Rejection: 60 dB (at 1000 kHz)
Antenna Input: Built-in Ferrite loopstick antennaclassicaudio.com

AUDIO SECTION
Circuitry: Single-ended push-pullclassicaudio.com
Music Power Output (IHF Rating):
-130 watts at 4 ohmsclassicaudio.com
-120 watts at 8 ohms
RMS Rated Power Output: 50 watts per channel at 8 ohms
Frequency Response: +/-1 dB from 20 Hz to 50 kHz (Over-all)classicaudio.com
Harmonic Distortion: Less than 0.5% (at 1 kHz rated output)
Power Bandwidth: 15 Hz to 50 kHz (AUX)
Hum & Noise (at rated output):classicaudio.com
-TAPE HEAD - better than 75 dB
-MAG - better than 80 dB
-AUX - better than 90 dBclassicaudio.com
Inputs Impendance and Audio Sensitivity (for rated output):
-MAGnetic PHONO - 2.4 mV 50 kOhms (1 kHz)
-CERamic PHONO - 51 mV 90 kOhms (1 kHz)
-TAPE HEAD - 1.5 mV 120 kOhms (1 kHz)classicaudio.com
-TAPE MONITOR - 200 mV 100 kOhms (1 kHz)
-AUXiliary - 200 mV 100 kOhms (1 kHz)
Damping Factor: 25 (8 ohms, 1 kHz)

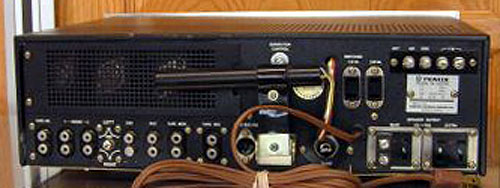

Output Terminals and Jacks:classicaudio.com
-Speakers - 4 to 16 ohms
-Stereo headphones jackclassicaudio.com
-Simultaneous tape recording jacks, equipped with TAPE MONITOR switch
-Tape recording/playback jack (DIN standards)
Equalization Curves:classicaudio.com
-PHONO: RIAA
-TAPE: NAB
Tone Controls (each channel):classicaudio.com
-BASS - boost 12 dB, cut 14 dB (at 50 Hz)
-TREBLE - boost 10 dB, cut 11.5 dB (at 10 kHz)
Filters:
LOW - cut 6 dB (at 50 kHz)classicaudio.com
HIGH - cut 10 db (at 10 kHz)
Loudness Contour: Switchable ON-OFF, boost 12 dB at 50 Hz, boost 6.5 dB at
10 kHz, with VOLUME control set at -40 dBclassicaudio.com

POWER SUPPLY, ETC.classicaudio.com
Power Consumption: 200 watts (Max)
Overall Dimensions:
-15 15/16" (Width)
-5 3/8" (Height)classicaudio.com
-13 3/4" (Depth)
Weight: 23 lbs. / 10.6 kg
