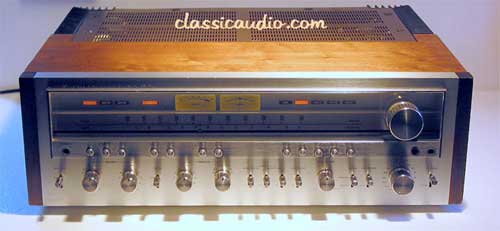

Pioneer SX-1250

Specifications:

Power Output: 160 watts per channel RMS into 8 ohms.classicaudio.com
Harmonic Distortion: Less than 0.1%
Intermodulation Distortion: Less than 0.1%classicaudio.com


FM Sensitivity: 1.5uVclassicaudio.com
FM Capture Ratio: 1.00
FM Harmonic Distortion Mono: <0.1%classicaudio.com
FM Harmonic Distortion Stereo: <0.2%

Dimensions: 22 x 7.5 x 18.75
Weight: 64.25 lbsclassicaudio.com

Controls:

Bass 50Hz: -2.5dB, -5dB, 0, +2.5dB, +5dB classicaudio.com
Bass 100Hz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Treble 10KHz: -2.5dB, -5dB, 0, +2.5dB, +5dBclassicaudio.com
Treble 20KHz: -2dB, -4dB, -6dB, -8dB, -10dB, 0, +2dB, +4dB, +6dB, +8dB, +10dB
Balanceclassicaudio.com
Volume

Switches:

Powerclassicaudio.com
Speakers A
Speakers Bclassicaudio.com
Speakers C
Filter 30Hzclassicaudio.com
Filter 8KHz
FM Multipath
FM Muting Offclassicaudio.com
AM
FMclassicaudio.com
Phono 1
Phono 2/Mic
Auxclassicaudio.com
Power
Tone: On, Offclassicaudio.com
Tape Duplicate
Tape Monitor 1
Tape Monitor 2classicaudio.com
Adaptor
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dB

Indicators:

Signal Strength Meter
Tuning Meterclassicaudio.com
SPEAKER A
SPEAKER B
SPEAKER Cclassicaudio.com
STEREO
AM
FMclassicaudio.com
PH-1
PH-2
AUXclassicaudio.com

Jacks:

Phones
Mic Lclassicaudio.com
Mic R

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antenna
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Aux (L, R)
Tape 1 Rec (L, R)classicaudio.com
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)
Adaptor Out (L, R)classicaudio.com
Adapter In (L, R)
Pre-Out (L, R)classicaudio.com
Main-In (L, R)
FM Det Out (4 Channel)classicaudio.com
FM De-emphasis: 25uS, 75uS
