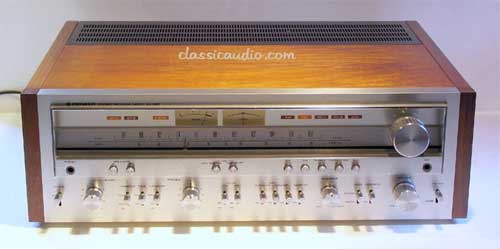

Pioneer SX-850

Specifications:

Power Output: 65 watts per channel RMS into 8 ohms.classicaudio.com
Harmonic Distortion: Less than 0.1%
Intermodulation Distortion: Less than 0.1%classicaudio.com


FM Sensitivity: 1.8uVclassicaudio.com
FM Capture Ratio: 1.00
FM Harmonic Distortion Mono: <0.15%classicaudio.com
FM Harmonic Distortion Stereo: <0.3%

Dimensions: 20.75 x 6.75 x 16.25
Weight: 42.00 lbsclassicaudio.com

Controls:

Bass
Trebleclassicaudio.com
Volume
Balanceclassicaudio.com
Mic Level

Switches:

Power
Speakers A
Speakers Bclassicaudio.com
MPX Noise Filter
Muting Offclassicaudio.com
AM
FM
Phono 1classicaudio.com
Phono 2
Aux
Bass Turnover: 400, 200
Tone: On, Offclassicaudio.com
Treble Turnover: 2.5k, 5k
Low Filter
High Filter
Tape Duplicateclassicaudio.com
Tape Monitor 1
Tape Monitor 2
Adaptorclassicaudio.com
Mode: Stereo/Mono
Loudness: On/Offclassicaudio.com
Audio Muting: -20dB

Indicators:

Signal Strength Meterclassicaudio.com
Tuning Meter
SPEAKER Aclassicaudio.com
SPEAKER B
STEREO
AMclassicaudio.com
FM
PH-1classicaudio.com
PH-2
AUXclassicaudio.com

Jacks:

Phones
Micclassicaudio.com

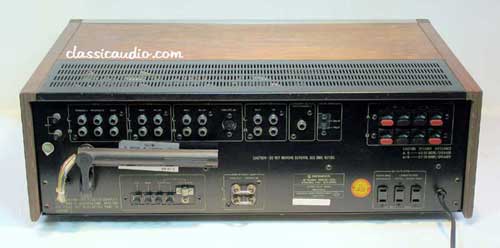

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux (L, R)classicaudio.com
Tape 1 Rec (L, R)
Tape 1 Play (L, R)
Tape 2 Rec (L, R)classicaudio.com
Tape 2 Play (L, R)
Tape 2 Rec/Play (DIN)classicaudio.com
Adaptor Out (L, R)
In (L, R)classicaudio.com
Pre-Out (L, R)
Main-In (L, R)classicaudio.com
FM Det Out (4 Channel)

---
