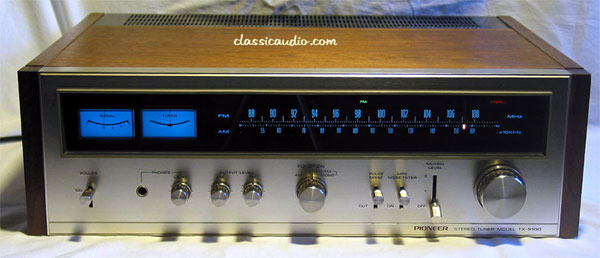

Pioneer TX-9100

Specifications :

FM Sensitivity: 1.5uVclassicaudio.com
FM Capture Ratio: 1.00
FM Selectivity: 90db
FM Stereo Separation: 40dBclassicaudio.com
FM Harmonic Distortion Mono: <0.2%
FM Harmonic Distortion Stereo: <0.3%classicaudio.com

Dimensions: 17 x 13.0 x 5.50classicaudio.com
Weight: 19.00 lbsclassicaudio.com

TX-9100

Controls:

Powerclassicaudio.com
Phones Level
AM Level
FM Levelclassicaudio.com
Function: AM, FM Auto, FM Mono

Switches:

Powerclassicaudio.com
Pulse Noise
Multiplex Filterclassicaudio.com
Muting Level: Off, 1, 2

Jacks:

Headphones

Indicators:

AM
FMclassicaudio.com
STEREO

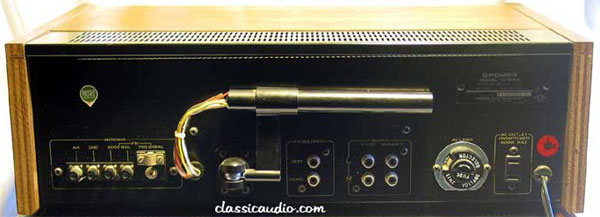

Rear Panel:

AC Outlet Unswitched
Output Fixed (L, R)classicaudio.com
Output Variable (L, R)
Scope (L, R)
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com
