McIntosh model MPI-4 Maximum Performace Indicator in excellent condition. Made in the U.S.A. This unit has been serviced and aligned. Includes the optional "slant leg" wood cabinet and a copy of the owner's manual.



From the Owner's Manual:

"The MPI-4 is a laboratory grade instrument. It provides the facility to continuously monitor the quality of the performance of a stereo system. The MPI-4 can sample and display signals from the tuner, preamplifier, and power amplifier without reconnecting cables. Signals are displayed on an oscilloscope screen calibrated with scales for tuning, measuring and testing."





Controls:

Sweepclassicaudio.com
Horizontal
Vertical
Intensity
Power Level
Gain/Power

Switches:

Sweep Frequency 20-200
Sweep Frequency 200-2K
Sweep Frequency 2K-20K
Dual Trace Left
Dual Trace Right
Level
Stereo
Multipath

lassicaudio.com

Indicators:

Oscilliscope Displaylassicaudio.com
Power Level: Preamp, 1000W, 300W, 100W, 30W, 10W, 3W, 1W, 0.3W, 0.1W

Controls Top:

Focus
Trace Separation
Sweep Expansion
Signal Strength
Deviation
Audio Trim Left
Audio Trim Right

Switches Top:

Level Mode: Normal, Peak, Reset
Reticule Illumination: On/Off
Low Pass Filter: On/Off
Trigger Source: Left, Right, Line
Multipath Polarity: -/+

Rear Panel:

AC Outlet Unswitchedlassicaudio.com
Power Amp In (L, R)
Speaker Impedance:
4, 8, 16
Left Audio: In/Out
Right Audio: In/Out
Signal Strength Inassicaudio.com
Deviation In

Shipping Weight: 25 Pounds (MPI-4)
Shipping Weight: 16 Pounds (Cabinet)



$1600.00





ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
To send email click here.





Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We
PRO PACK!

This item includes our 30 day limited warranty!

Read what our customers say about us!






 Dual Trace Mode

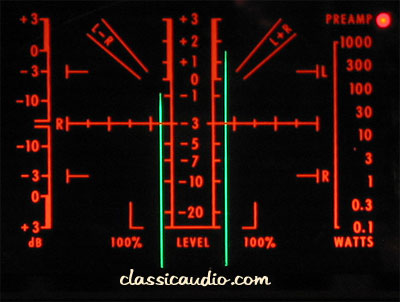

 Level Mode





 Stereo Mode

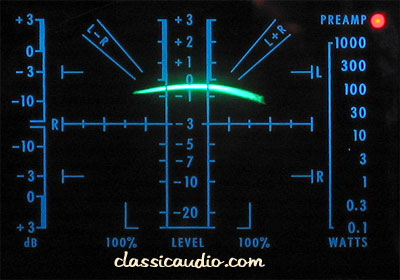

 Multipath Mode
