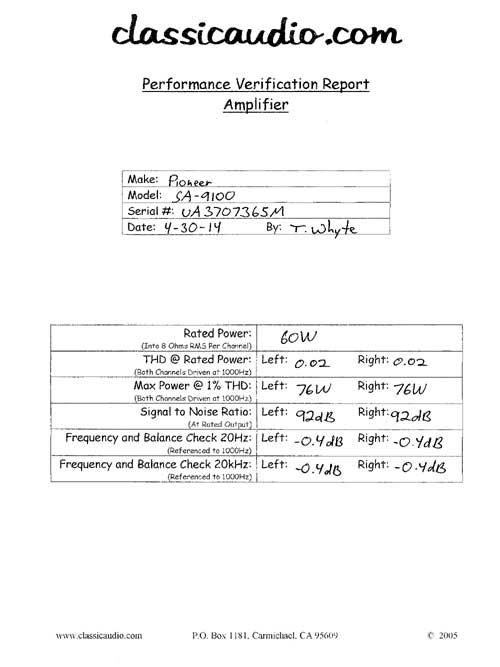

Pioneer model SA-9100 integrated amplifier in very good condition. Rated at 60 watts RMS into 8 ohms and 75 watts RMS into 4 ohms. Built like a tank and loaded with features. One very unique feature is a level trim control for the B set of speakers. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included. There is minor damage to the left rear of the cabinet. Please see pictures below.
 |

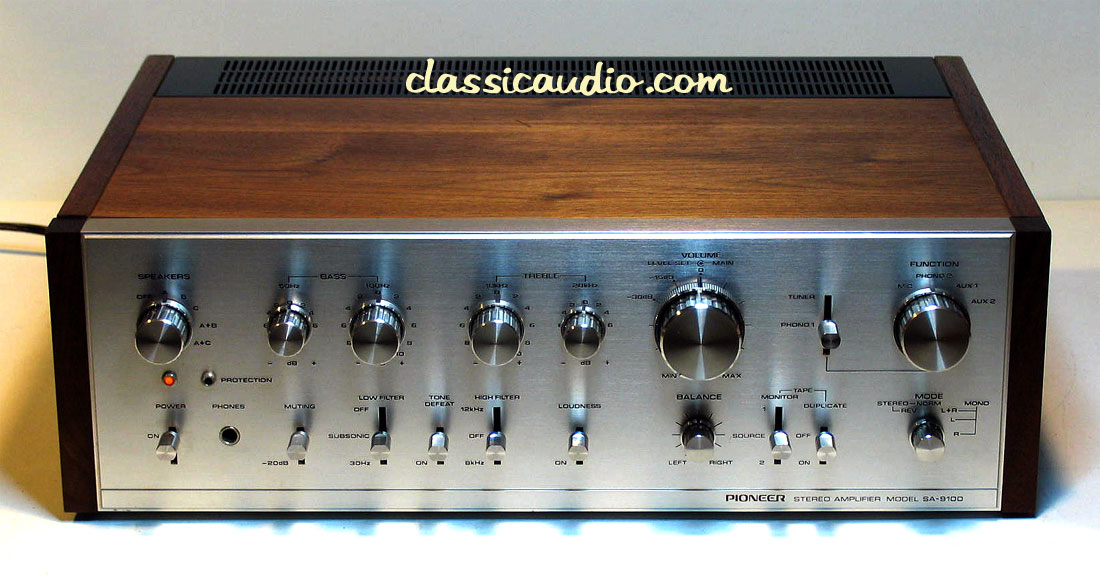

Controls:
Bass 50Hz +/- 6classicaudio.com
Bass 50Hz +/- 10
Treble 10kHz +/- 10
Treble 20kHz +/- 6classicaudio.com
Balance
Volumeclassicaudio.comSwitches:
Speakers: Off, A, B, A+B, A+Cclassicaudio.com
Level Set: 0, -15dB, -30dB
Selector 1: Tuner, Phono 1, Selector 2classicaudio.com
Selector 2: Mic, Phono2, Aux 1, Aux 2
Power
Muting: -20dBclassicaudio.com
Low Filter: Off, Subsonic, 30Hz
Tone Defeat
High Filter: 12kHz, Off, 8kHz
Loudnesscclassicaudio.comlassicaudio.com
Tape Monitor: 1, Source, 2
Tape Duplicate
Mode: Stereo Rev, Norm, L+R, L, Rclassicaudio.com
Jacks:
Headphones
Indicators:
Protection
Powerclassicaudio.com

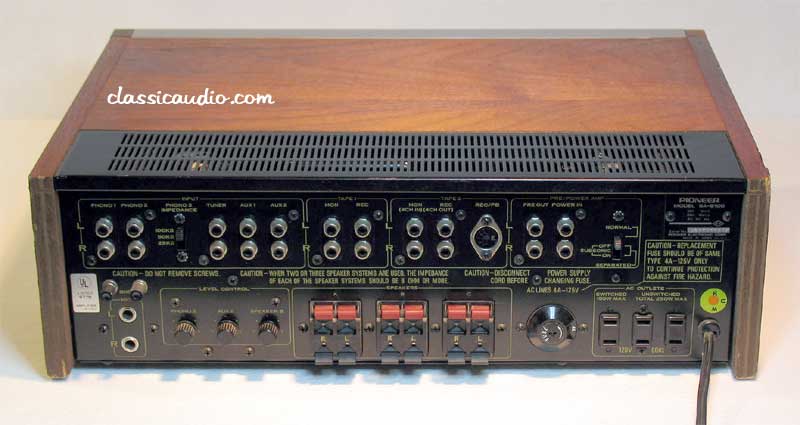

Rear Panel:
AC Outlet Unswitched (2)
AC Outlet Switched
Mic Input (L, R)classicaudio.com
Power In In (L, R)
Pre Out (L, R)
Pre/Power Mode: Normal, Separated-Subsonic Off, Separated-Subsonic On
Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Tape Monitor 2 DIN
Aux 1 Input (L, R)classicaudio.com
Aux 2 Input (L, R)classicaudio.com
Phono 1 Input (L, R).
Phono 2 Input (L, R)
Phono 2 Impedance: 100kOhm, 50kOhm, 25kOhmclassicaudio.com
Phono 2 Level Trim
Aux 2 Level Trimclassicaudio.com
Speaker B Level Trim
Speakers A (L, R)
Speakers B (L, R)classicaudio.com
Speakers C (L, R)
Shipping Weight 40 lbs.
 |
$299.95
 |
ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
To send email click here.
 |
Buyer to pay item cost plus actual shipping charges from 95609.
We accept credit cards or money orders, click here for more information.
Shipping to U.S. only. We PRO PACK!
This item includes an unconditional 30 day money back guarantee!
