This item has been SOLD! For more ads, click HERE.

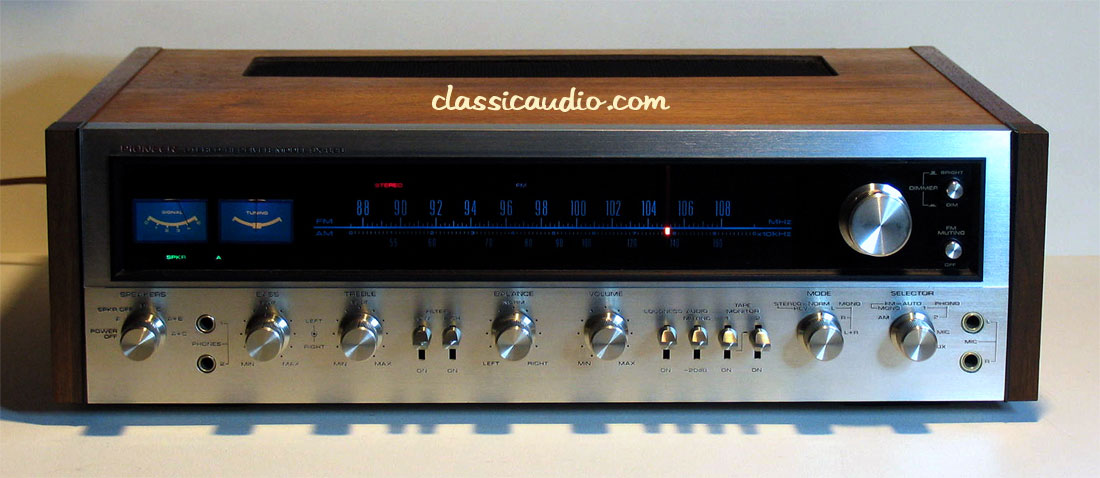

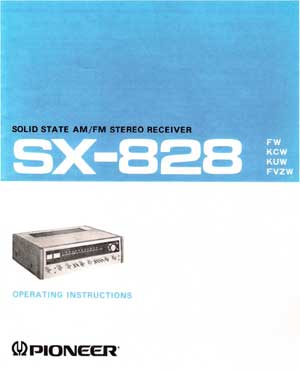

Pioneer model SX-828 AM/FM receiver in excellent condition, all lettering is perfect. Rated at 50 watts RMS per channel into 8 ohms. Top of the line for the "twenty" series, it features dual tuning capacitors and a fully shielded FM section. One set of new speaker plugs are included. It has been serviced and fully tested. Includes our original Performance Verification Report and a copy of the owner's manual.

From Pioneer:

The SX-828 is a big power AM/FM stereo receiver with advanced circuit design, outstanding FM selectivity and sensitivity, and linear scale tuning dial.

Here, in one of Pioneer's most prized packages, is a wealth of outstanding performance in an AM/FM solid state stereo receiver.

The SX-828 is another in the long, proud line of advanced stereo components from Pioneer - and certainly one of the best.

For FM selectivity and sensitivity that has no peer in a unit of this size, the unit features a large linear scale tuning dial, the latest solid state circuitry, and a pair of FM tuning meters.

And, finally, for the supreme versatility that is so necessary to quality hi-fi today, it provides two tape monitor circuits for tape-to-tape duplication, and lets you use up to two turntables, three sets of speaker systems, two microphones and even two sets of headphones.

All in one handsomely-designed, ruggedly built unit from the quality stereo people at Pioneer.



Controls:

Speaker Selector: Power Off, A, Spkr Off, B, C, A+B, A+C
Bass (L, R)
Treble (L, R)
classicaudio.com
Balance
classicaudio.com
Volume
Mode:
Stereo Rev, Normal, L, R, L+R
Function:
AM, FM Mono, FM Auto, Phono 1, Phono 2, Mic, Aux

Switches

Lo Filterclassicaudio.com
High Filter

Loudness
Audio Muting:
-20dBclassicaudio.com
Tape Monitor 1
Tape Monitor 2
classicaudio.com
Dial: Dim/Normal
FM Muting: On/Off

Jacks:

Mic Lclassicaudio.com
Mic R
Headphones 1
Headphones 2

Indicators:

Signal Strength Meter
Tuning Meter
classicaudio.com
STEREO
SP-A
classicaudio.com
SP-B
SP-C
AM
classicaudio.com
FM
PHONO
classicaudio.com
MIC
AUX
classicaudio.com

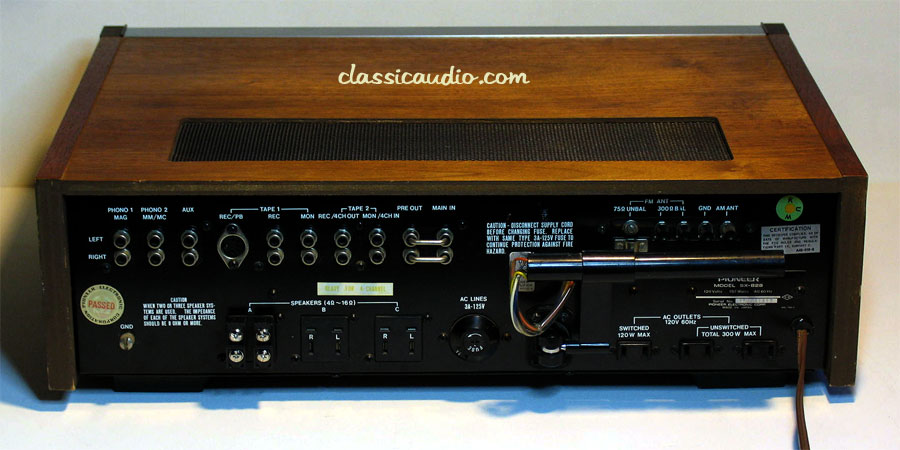

Rear Panel:

AC Outlet Unswitched (2)
AC Outlet Switched
classicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)
Aux Input (L, R)
classicaudio.com
Tape Monitor 1 Rec (L, R)
Tape Monitor 1 PB (L, R)
classicaudio.com
Tape Monitor 2 Rec (L, R, DIN)
Tape Monitor 2 PB (L, R, DIN)
Pre-Out (L, R)
classicaudio.com
Power-In (L, R)
Speaker System A (L, R)
classicaudio.com
Speaker System B (L, R)
Speaker System C (L, R)
classicaudio.com

Shipping Weight: 38 lbs.



$349.95
