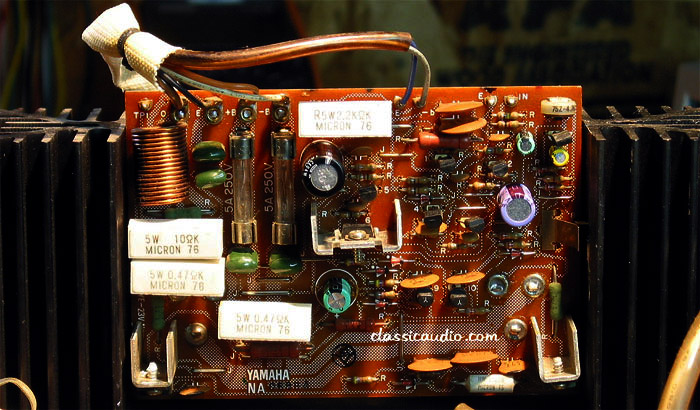

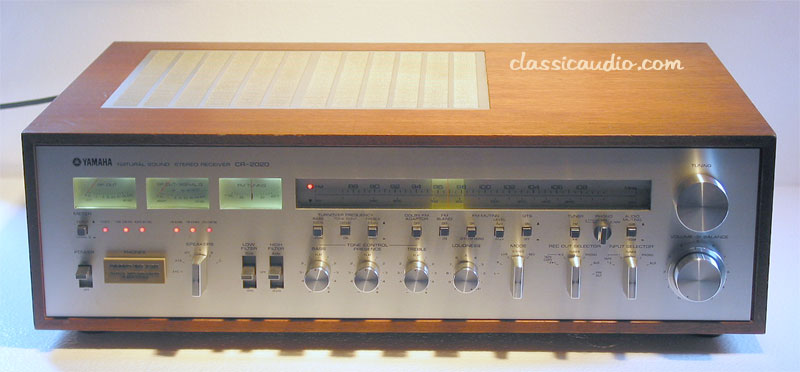

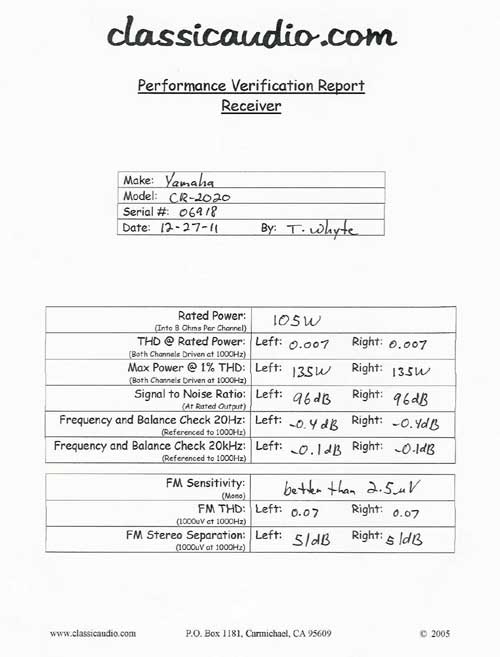

Yamaha model CR-2020 receiver in excellent condition. Rated at 105 watts RMS per channel into 8 ohms. It has been serviced. Includes our original Performance Verification Report, and a copy of the owner's manual. Loaded with features including a built-in MC phono preamp, varaible loudness contour control and power output meters.
See also YH-1 Orthodynamic Headphones.
 |
Controls:
Bassclassicaudio.com
Presence
Trebleclassicaudio.com
Loudness
Volume
Balanceclassicaudio.comSwitches:
Powerclassicaudio.com
Meter: Speaker Out/Signal Q
Speakers: A+C, A+B, Off, A, B, Cclassicaudio.com
Low Filter: 15Hz/70Hz
High Filter: 8kHz/12kHzclassicaudio.com
Turnover Frequency Bass: 125Hz/500Hz
Turnover Frequency Tone Cont: Defeat/Onclassicaudio.com
Turnover Frequency Treble: 2.5kHz/8kHz
Dolby FM Adapter: Off/Onclassicaudio.com
FM Blend: Off/On
FM Muting: On/Off FM Mono
FM Muting Level: 3uV/30uVclassicaudio.com
OTS (Optimum Tuning System): On/Off
Tuner: AM/FM
Phono: MM/MCclassicaudio.com
Audio Muting: 0dB/20dB
Mode: L, R, L+R, Stereo, Revclassicaudio.com
Record Out Selector: Tape Copy 2>1, Tape Copy 1>2, Tuner, Phono, Aux, Pre-Out
Input Selector: Tape 2, Tape 1, Tuner, Phono, Auxclassicaudio.comIndicators:
SP Out Left Meterclassicaudio.com
SP Out Right/Signal Q Meterclassicaudio.com
Tuning Meter
FM
AM
POWERclassicaudio.com
TONE CONTROL
AUDIO MUTING
FM BLENDclassicaudio.com
FM STEREO

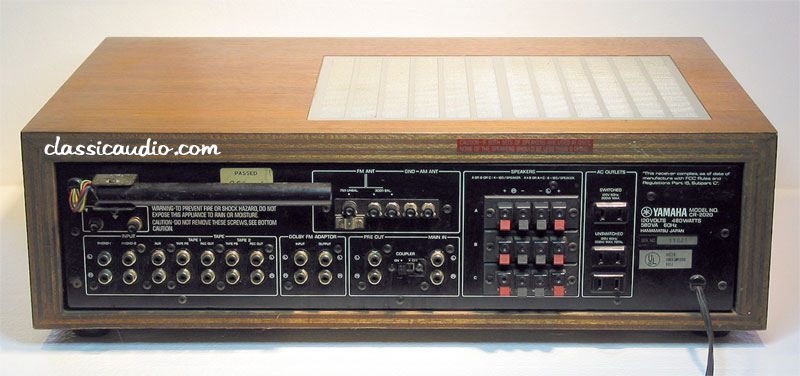

OTS/STATIONclassicaudio.comRear Panel:
AC Outlet Unswitched (2)
AC Outlet Switchedclassicaudio.com
Antenna Inputs: 300 ohm balanced, 75 ohm unbalanced, coaxial.
AM Ferrite Bar Antennaclassicaudio.com
Phono 1 (L, R)
Phono 2 (L, R)classicaudio.com
Aux (L, R)
Tape 1 Playback (L, R)
Tpae 1 Record (L, R)classicaudio.com
Tape 2 Playback (L, R)
Tape 2 Record (L, R)classicaudio.com
Dolby FM Adapter Input (L, R)
Dolby FM Adapter Output (L, R)classicaudio.com
Pre-Out (L, R)
Main-In (L, R)classicaudio.com
Coupler: On/Off
Speaker Out A (L, R)classicaudio.com
Speaker Out B (L, R)
Speaker Out C (L, R)classicaudio.com
Shipping Weight: 52 Pounds 24 x 20 x 12
 |
